Simpson Anchors  |  SKU: SDWH19600DB  |  Barcode: 746056004233

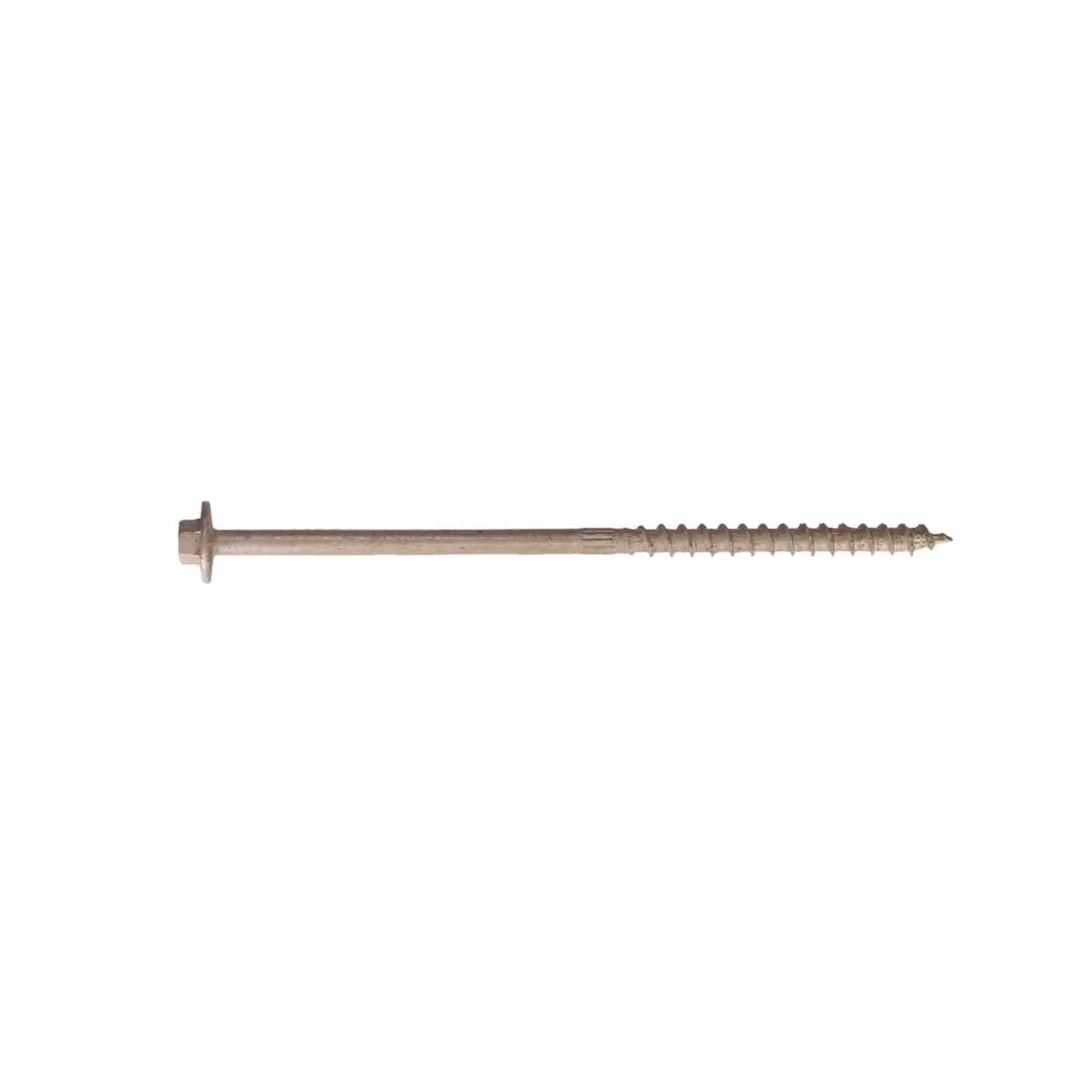

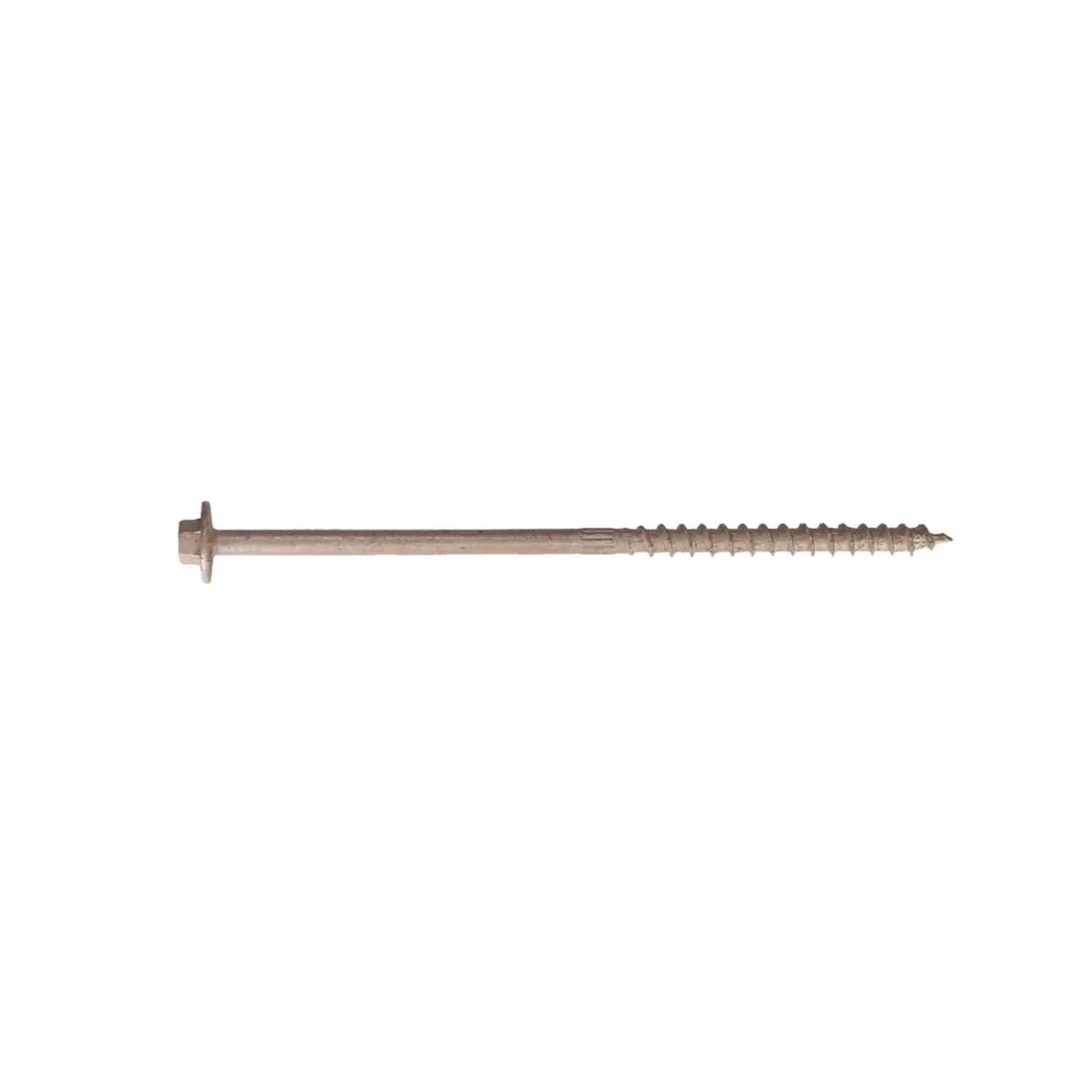

Simpson Strong-Tie SDWH19600DB Strong-Drive (0.195" x 6" x 5/16" Hex) SDWH Timber-Hex Screw, Double-Barrier Coating (600 Pack)

Free Shipping
$450.97

Description

Simpson Strong-Tie SDWH19600DB Description

Strong-Tie SDWH Timber Screws feature a 4CUT tip which eliminates the need for pre-drilling, saving valuable time compared to using traditional lag bolts.

Simpson Strong-Tie SDWH19600DB Includes

  • (600) 0.195 in. x 6 in. Timber-Hex Screw

Simpson Strong-Tie SDWH19600DB Features

  • Bold thread design provides superior holding power
  • SawTooth point ensures fast starts, reduces installation torque and eliminates the need for predrilling in most applications
  • Underhead nibs allow for head to countersink into wood with reduced splintering
  • Large washer head provides maximum bearing area (0.650" washer head diameter)
  • Size identification on all SDWH screw heads
  • 5/16" hex drive (replacement driver bit — BITHEXR516-R1)
  • Double-barrier coating provides corrosion resistance equivalent to hot-dip galvanization

Simpson Strong-Tie SDWH19600DB Applications

  • Structural wood-to-wood and engineered wood connections including ledgers

Simpson Strong-Tie SDWH19600DB Specifications

Diameter 0.195 in.
Length 6 in.
Material Carbon Steel
Drive Type 5/16 in. Hex
Point Type 4CUT Point
Thread Length 2.75 in.
Coating Double-Barrier Coating
Packaging Quantity 600

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
