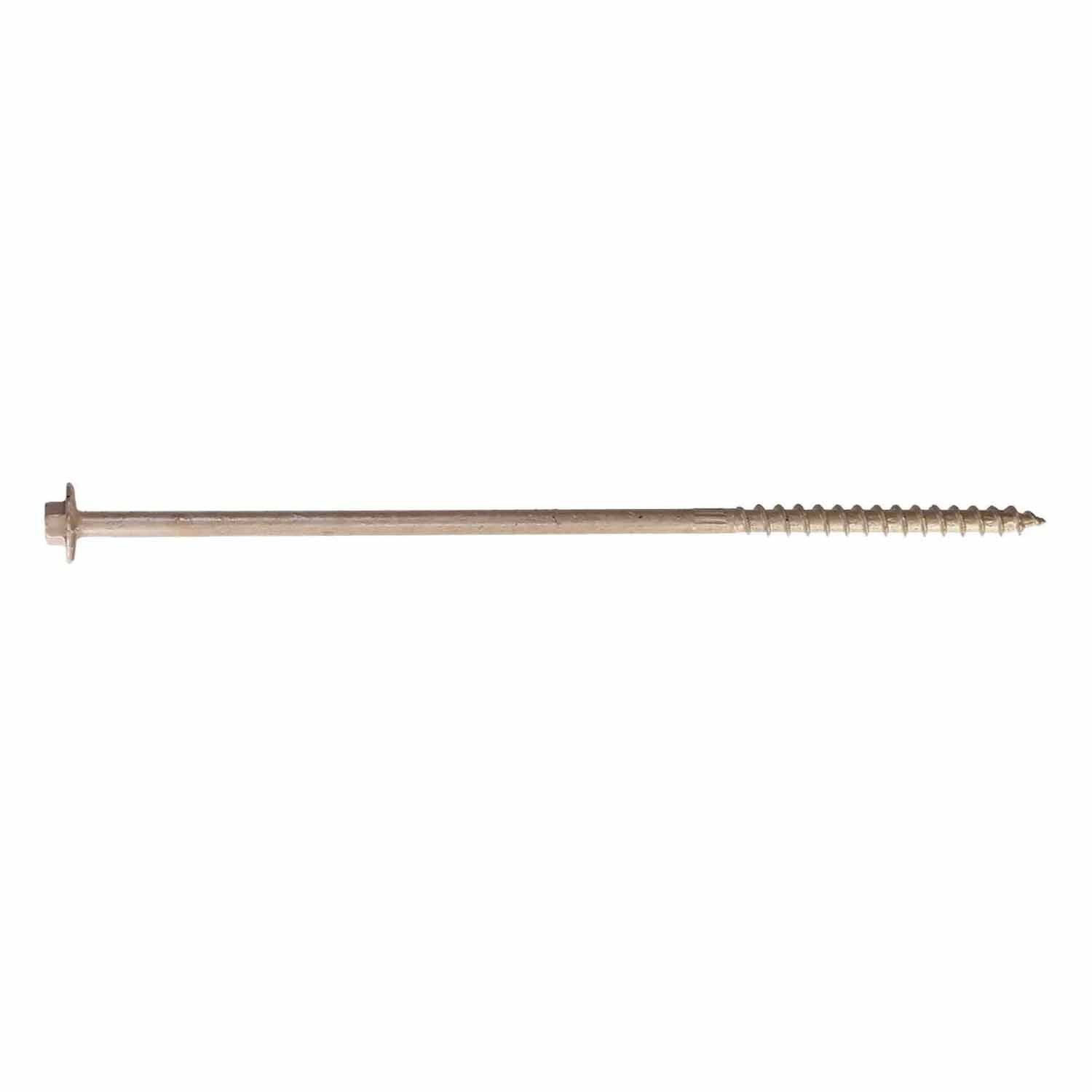

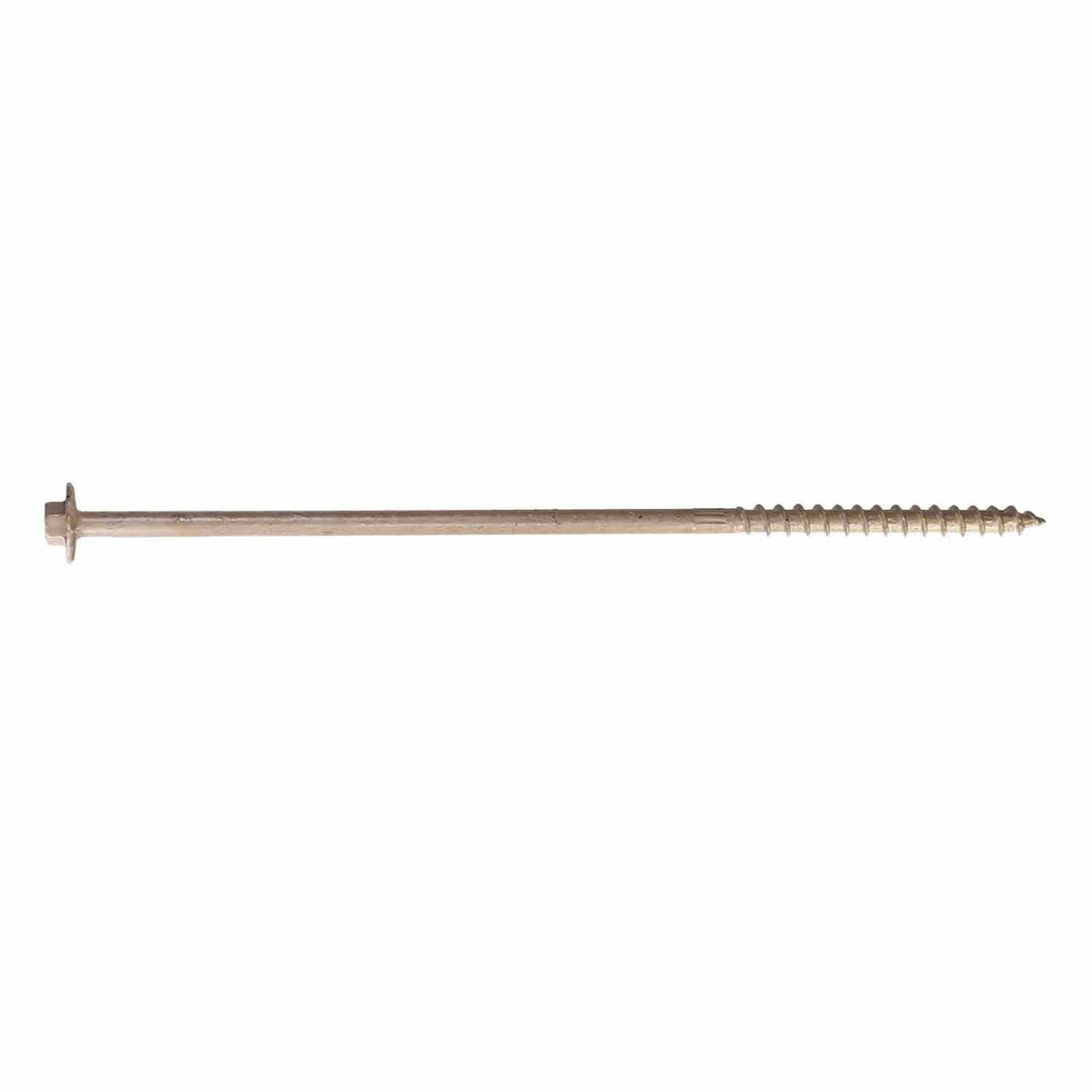

Simpson Strong-Tie SDWH19800DB-R50 Strong-Drive (0.195" x 8" x 5/16" Hex) SDWH Timber-Hex Screw with Double-Barrier Coating (50 Pack)

$64.94

Description

Simpson Strong-Tie SDWH19800DB-R50 Description

Strong-Tie SDWH Timber Screws feature a 4CUT tip which eliminates the need for pre-drilling, saving valuable time compared to using traditional lag bolts.

Simpson Strong-Tie SDWH19800DB-R50 Includes

  • (50) Timber-Hex Screw

Simpson Strong-Tie SDWH19800DB-R50 Features

  • Bold thread design provides superior holding power
  • SawTooth point ensures fast starts, reduces installation torque and eliminates the need for predrilling in most applications
  • Underhead nibs allow for head to countersink into wood with reduced splintering
  • Large washer head provides maximum bearing area (0.650" washer head diameter)
  • Size identification on all SDWH screw heads
  • 5/16" hex drive (replacement driver bit — BITHEXR516-R1)
  • Double-barrier coating provides corrosion resistance equivalent to hot-dip galvanization

Simpson Strong-Tie SDWH19800DB-R50 Applications

  • Structural wood-to-wood and engineered wood connections including ledgers

Simpson Strong-Tie SDWH19800DB-R50 Specifications

Fastener Type Hand-Drive Screw
Application Fastening Wood-to-Wood
API Approval Approved - Full
Length 8 in.
Head Diameter 0.650 in.
Shank Diameter 0.195 in.
Drive Type 5/16 in. Hex
Head Type Large Hex Washer Head
Thread Length 2 3/4 in.
Point Type SawTooth Point
Coating/Material Double-Barrier Coating
Packaging Quantity 50

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
