Simpson Anchors | SKU:
SDWH19800SS-R10

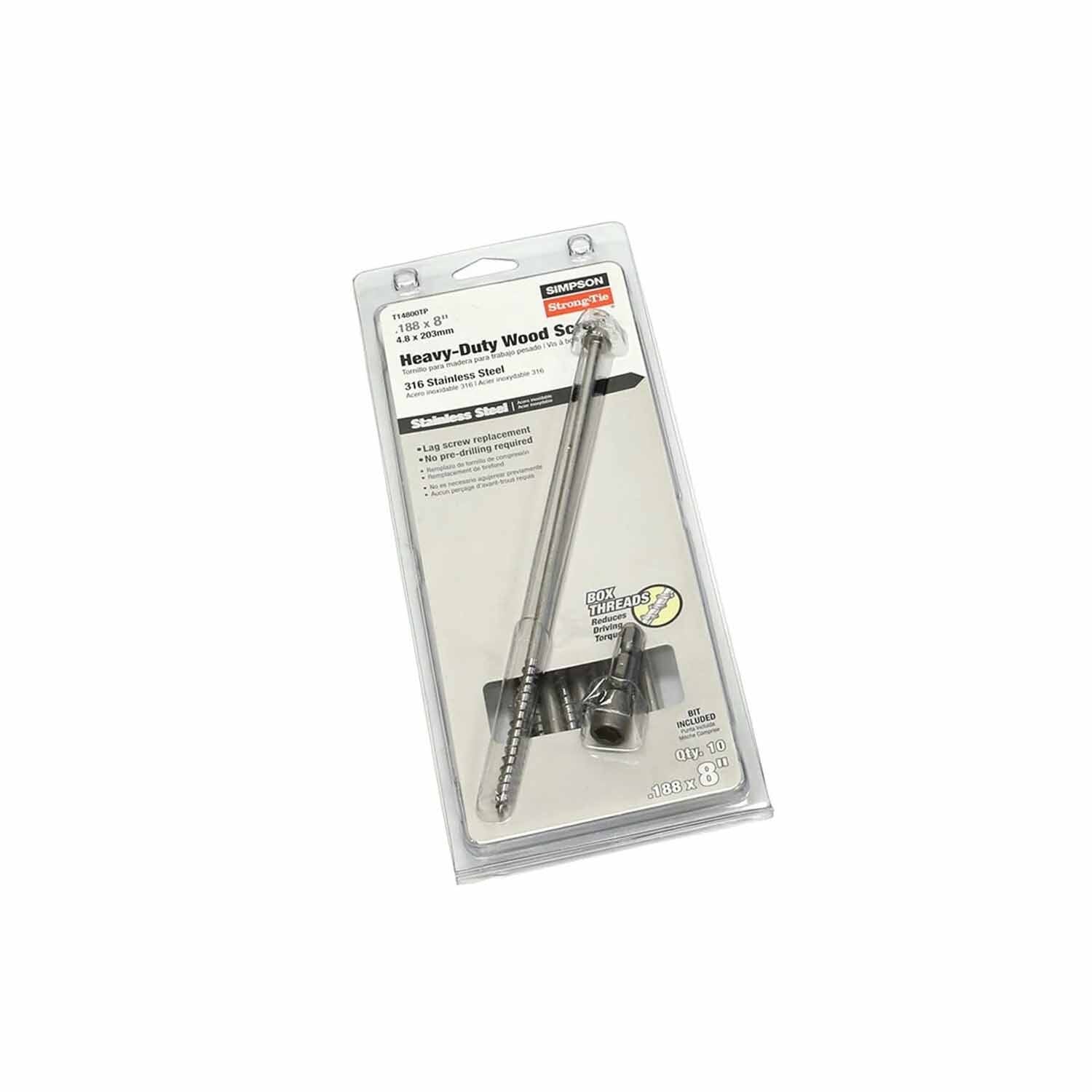

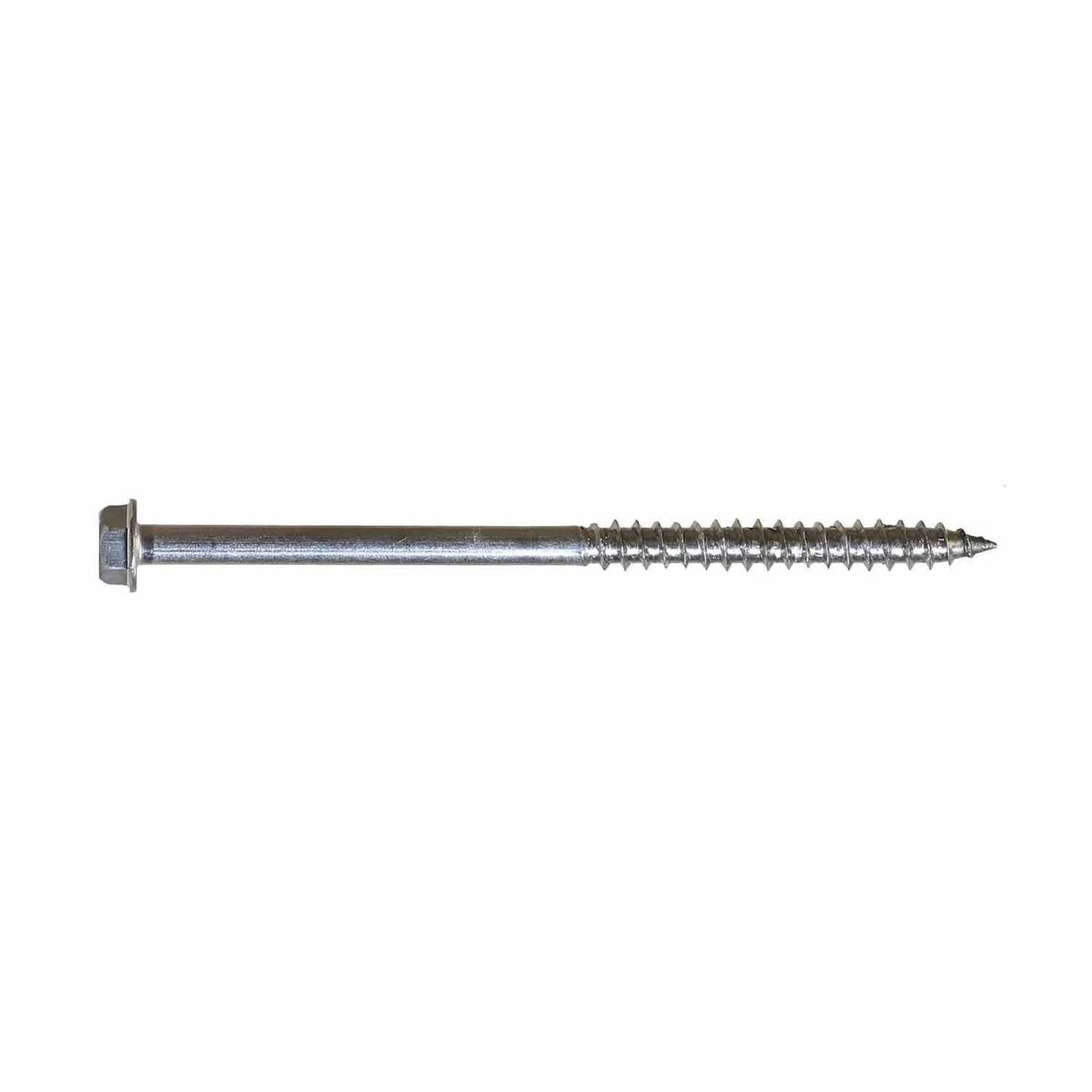

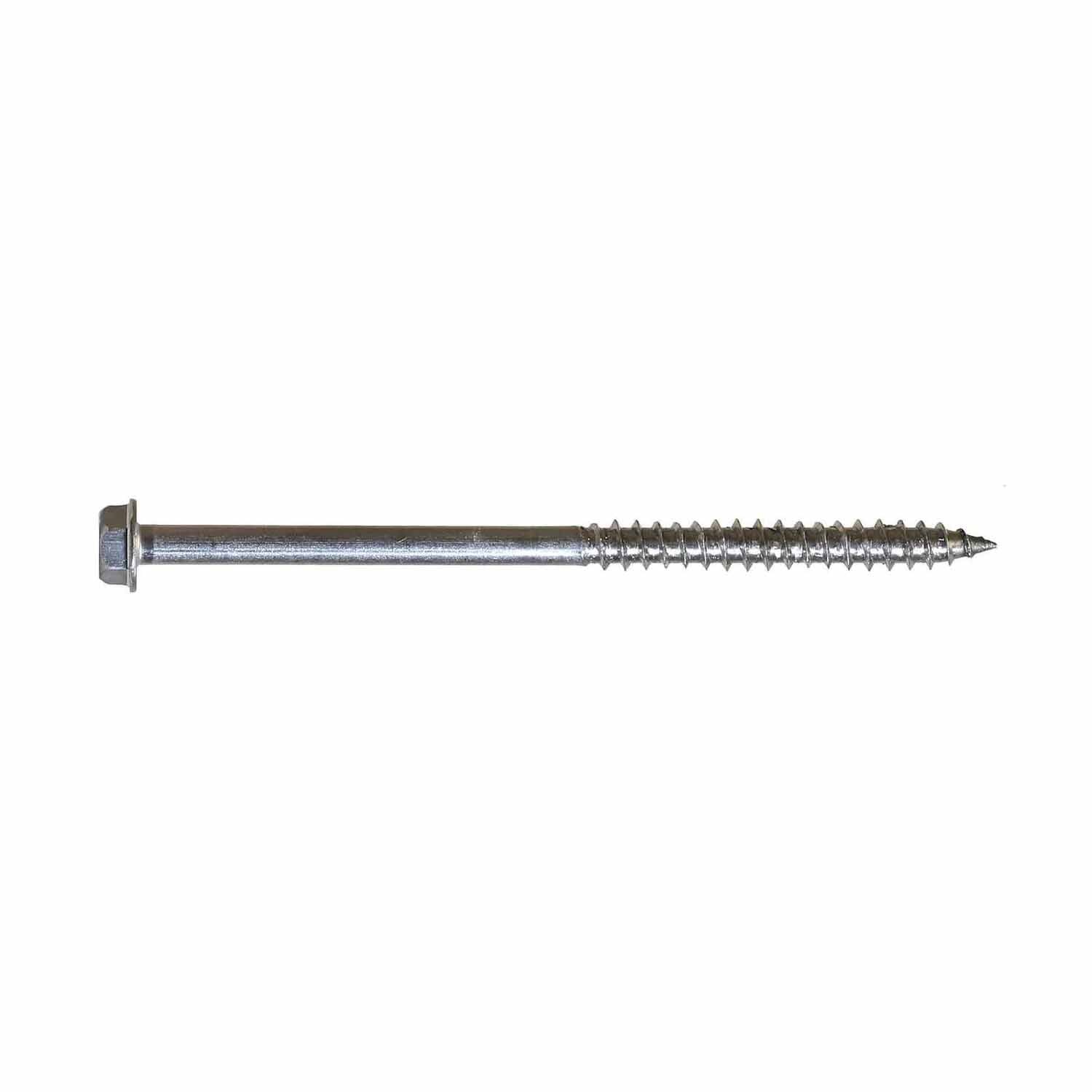

Simpson Strong-Tie SDWH19800SS-R10 Strong-Drive (0.185" x 8") SDWH Timber-Hex SS Screw,Type 316 (10 Pack)
$45.61
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie SDWH19800SS-R10 Description
Strong-Tie SDWH Stainless Steel Timber Screws are designed for lag-screw replacement, offering ease of installation and high corrosion resistance.
Simpson Strong-Tie SDWH19800SS-R10 Includes
- (10) 8" Timber-Hex Screw
Simpson Strong-Tie SDWH19800SS-R10 Features
- Type 316 stainless steel for maximum corrosion protection
- No predrilling necessary in most applications
- Driver bit included
- Can be used in ledger applications

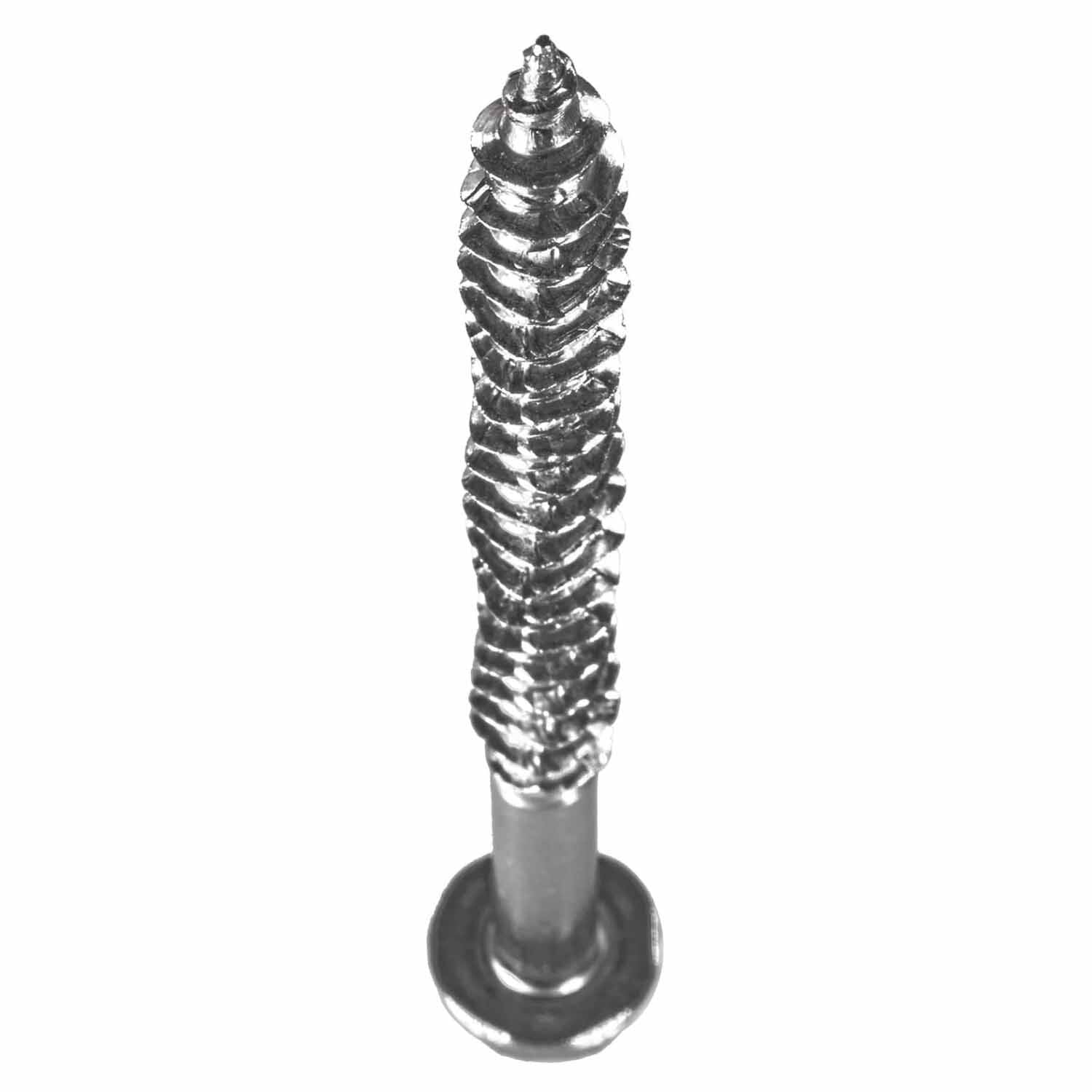

- Unique box thread design with raised-ridge technology significantly reduces driving torque
- Hex-washer head provides large bearing area
Simpson Strong-Tie SDWH19800SS-R10 Applications
- Structural wood-to-wood and engineered-wood connections, including ledger
- Marine or wet environments requiring severe corrosion resistance
Simpson Strong-Tie SDWH19800SS-R10 Installation Overview
- Verify dimensions and alignment of wood members
- Position the screw at the desired location
- Drive the screw using a 5/16" hex driver
- Ensure full penetration into the main member
Simpson Strong-Tie SDWH19800SS-R10 Specifications
| Diameter | 0.188" |
| Length | 8" |
| Material | 316 Stainless Steel |
| Drive type | 5/16" Hex |
| Point type | Sharp |
| Quantity | 10 |
| Thread length | 2.40" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
