Simpson Anchors | SKU:
SDWH271000SS-R25

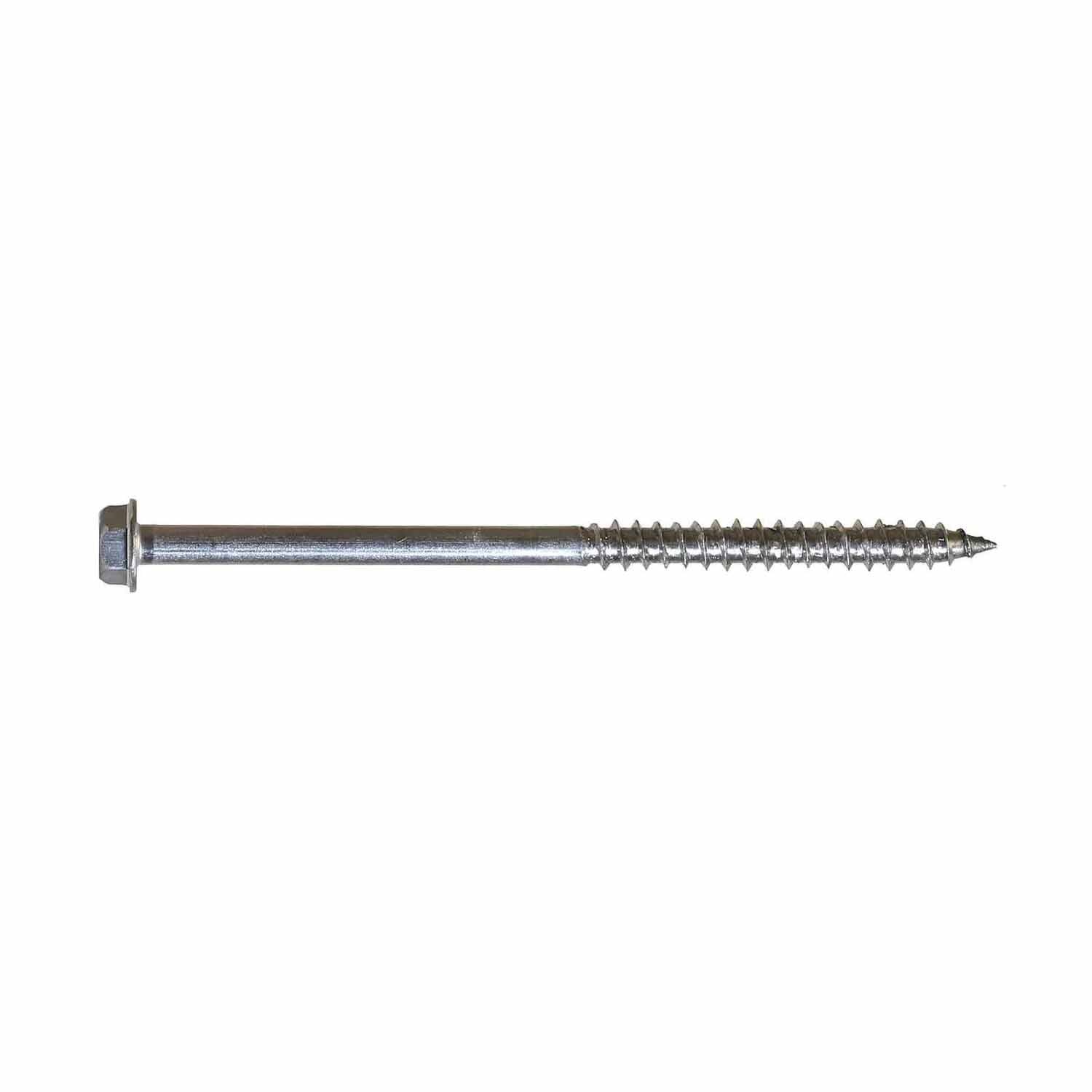

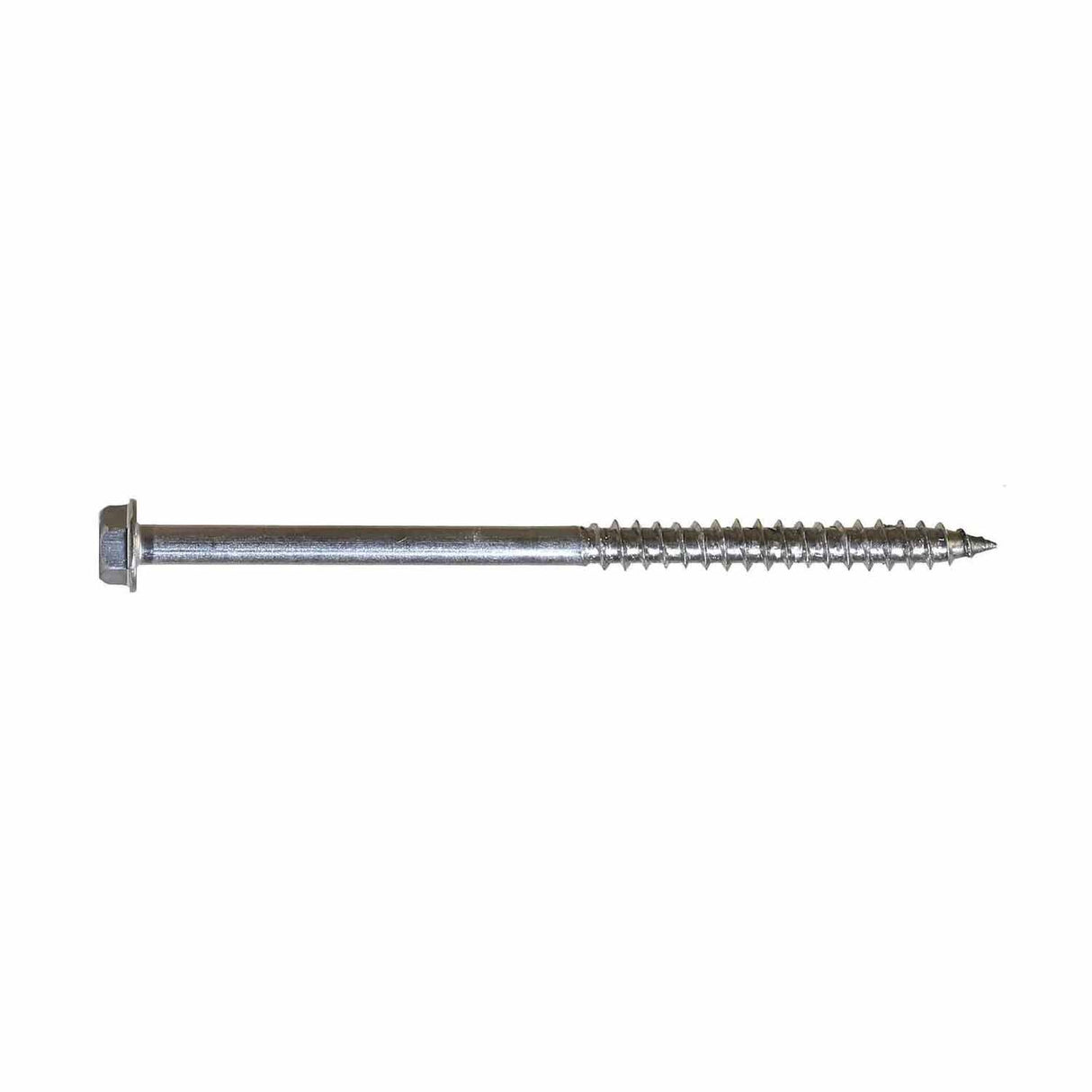

Simpson Strong-Tie SDWH271000SS-R25 Strong-Drive (0.275" x 10") SDWH Timber-Hex SS Screw,Type 316 (25 Pack)
Free Shipping
$227.78
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie SDWH271000SS-R25 Description
Strong-Tie SDWH Stainless Steel Timber Screws are designed for lag-screw replacement, offering ease of installation and high corrosion resistance.
Simpson Strong-Tie SDWH271000SS-R25 Includes
- (25) 0.275 in. x 10 in. Timber-Hex Screw
Simpson Strong-Tie SDWH271000SS-R25 Features
- Type 316 stainless steel for maximum corrosion protection
- No predrilling necessary in most applications
- Driver bit included
- Can be used in ledger applications

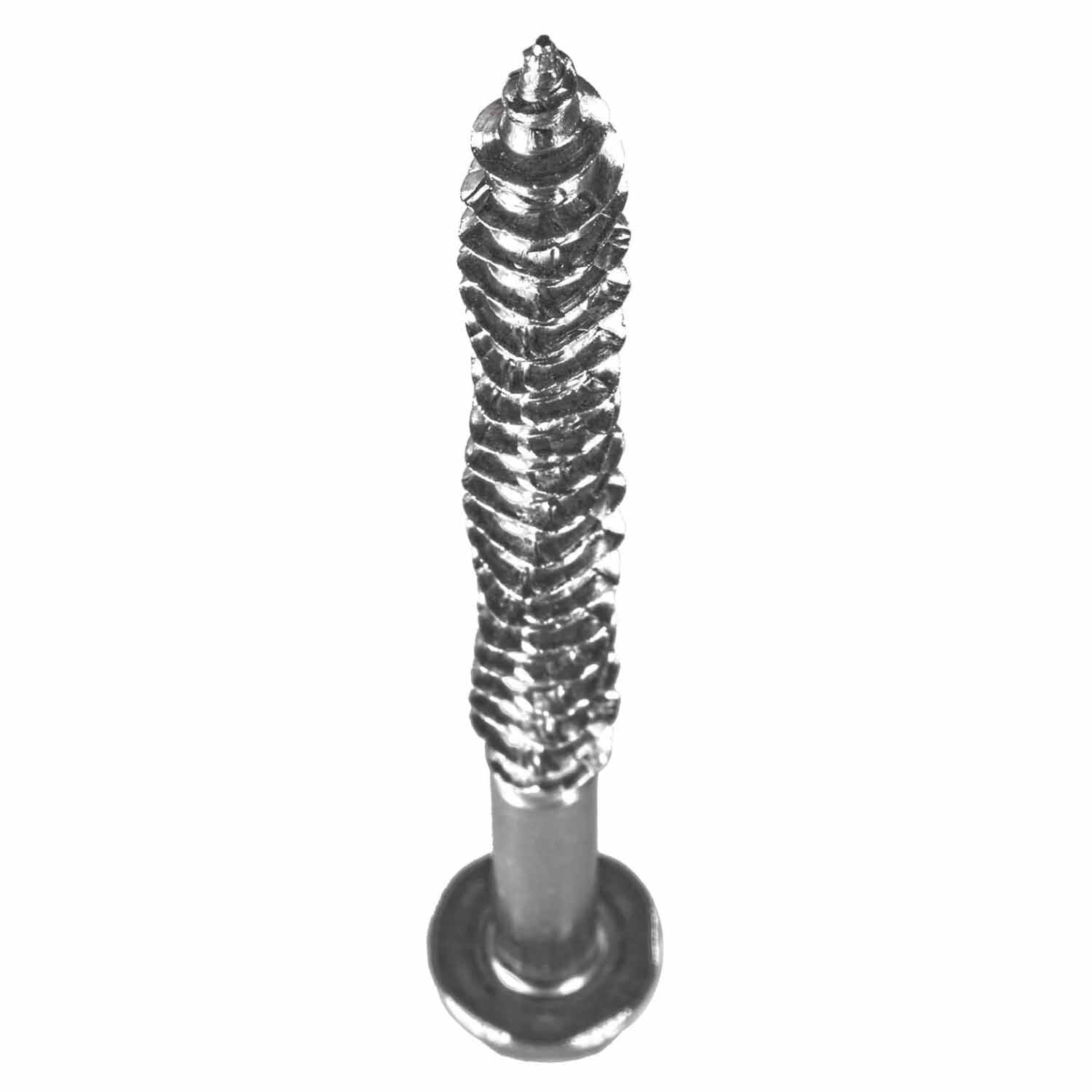

- Unique box thread design with raised-ridge technology significantly reduces driving torque
- Hex-washer head provides large bearing area
Simpson Strong-Tie SDWH271000SS-R25 Applications
- Structural wood-to-wood and engineered-wood connections, including ledger
- Marine or wet environments requiring severe corrosion resistance
Simpson Strong-Tie SDWH271000SS-R25 Installation Overview
- Verify dimensions and alignment of the wood members.
- Position the screw and begin driving using a 1/2" low-speed drill.
- Ensure full penetration into the main member for optimal load capacity.
- Use predrilling if splitting occurs during installation.
Simpson Strong-Tie SDWH271000SS-R25 Specifications
| Diameter | 0.276" |
| Length | 10" |
| Material | 316 Stainless Steel |
| Drive type | 1/2" Hex |
| Head type | Hex Washer Head |
| Point type | Sharp |
| Quantity | 25 |
| Thread length | 2.95" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
