Simpson Anchors | SKU:
SDWH271000SS-R5
Simpson Strong-Tie SDWH271000SS-R5 Strong-Drive (0.275" x 10") SDWH Timber-Hex SS Screw,Type 316 (5 Pack)
$48.47
Unit price
/
Unavailable
Description
Description

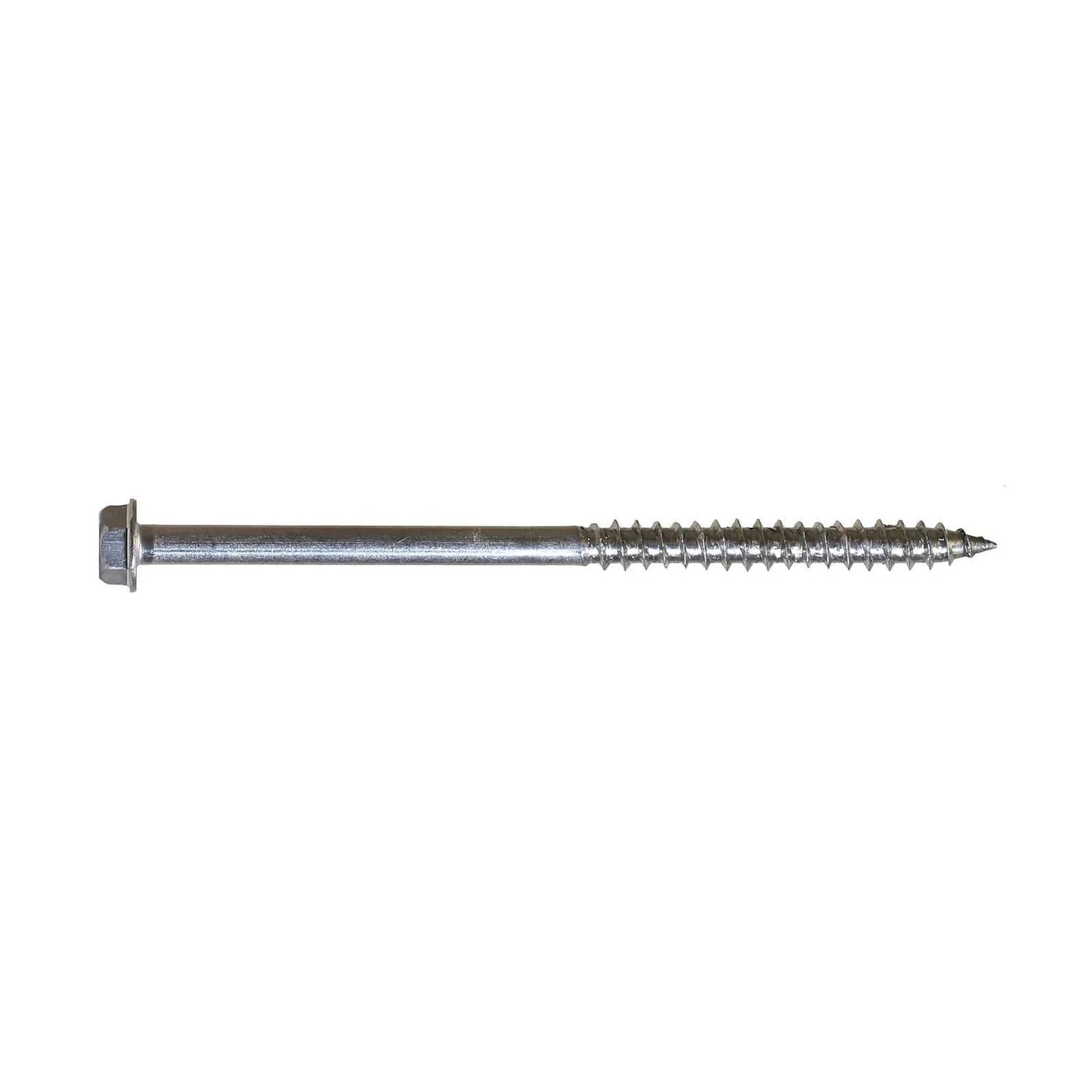

Simpson Strong-Tie SDWH271000SS-R5 Description
The Simpson Strong-Tie SDWH Timber-Hex Screw is a 316 stainless steel fastener designed for structural wood-to-wood connections, offering maximum corrosion resistance and ease of installation.
Simpson Strong-Tie SDWH271000SS-R5 Includes
- (5) 10 in. Timber-Hex Screw
- (1) Driver Bit
Simpson Strong-Tie SDWH271000SS-R5 Features
- Type 316 stainless steel for maximum corrosion protection
- No predrilling necessary in most applications
- Driver bit included

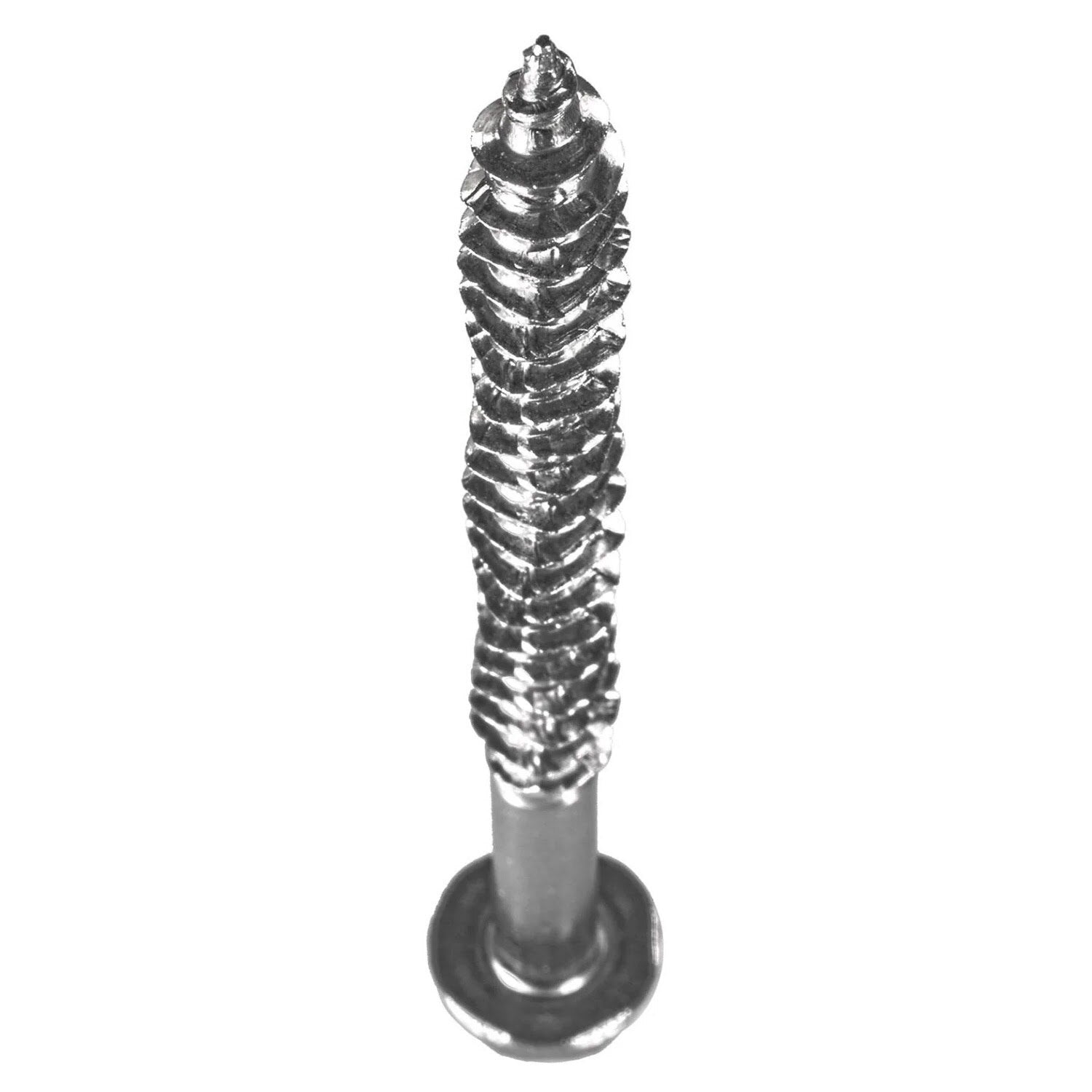

- Unique box thread design reduces driving torque
- Hex-washer head provides large bearing area
Simpson Strong-Tie SDWH271000SS-R5 Applications
- Structural wood-to-wood and engineered-wood connections, including ledger
- Marine or wet environments requiring severe corrosion resistance
Simpson Strong-Tie SDWH271000SS-R5 Installation Overview
- Verify dimensions and alignment of wood members.
- Position the screw and drive using a 1/2 in. hex driver.
- Ensure full penetration into the main member for optimal performance.
Simpson Strong-Tie SDWH271000SS-R5 Specifications
| Diameter | 0.276" |
| Length | 10" |
| Material | 316 Stainless Steel |
| Drive Type | 1/2" Hex |
| Head Type | Hex Washer Head |
| Point Type | Sharp |
| Thread Length | 2.95" |
NOTE: Ensure proper fasteners are used in the correct positions to achieve published load values.
