Simpson Anchors | SKU:
SDWS16312Q

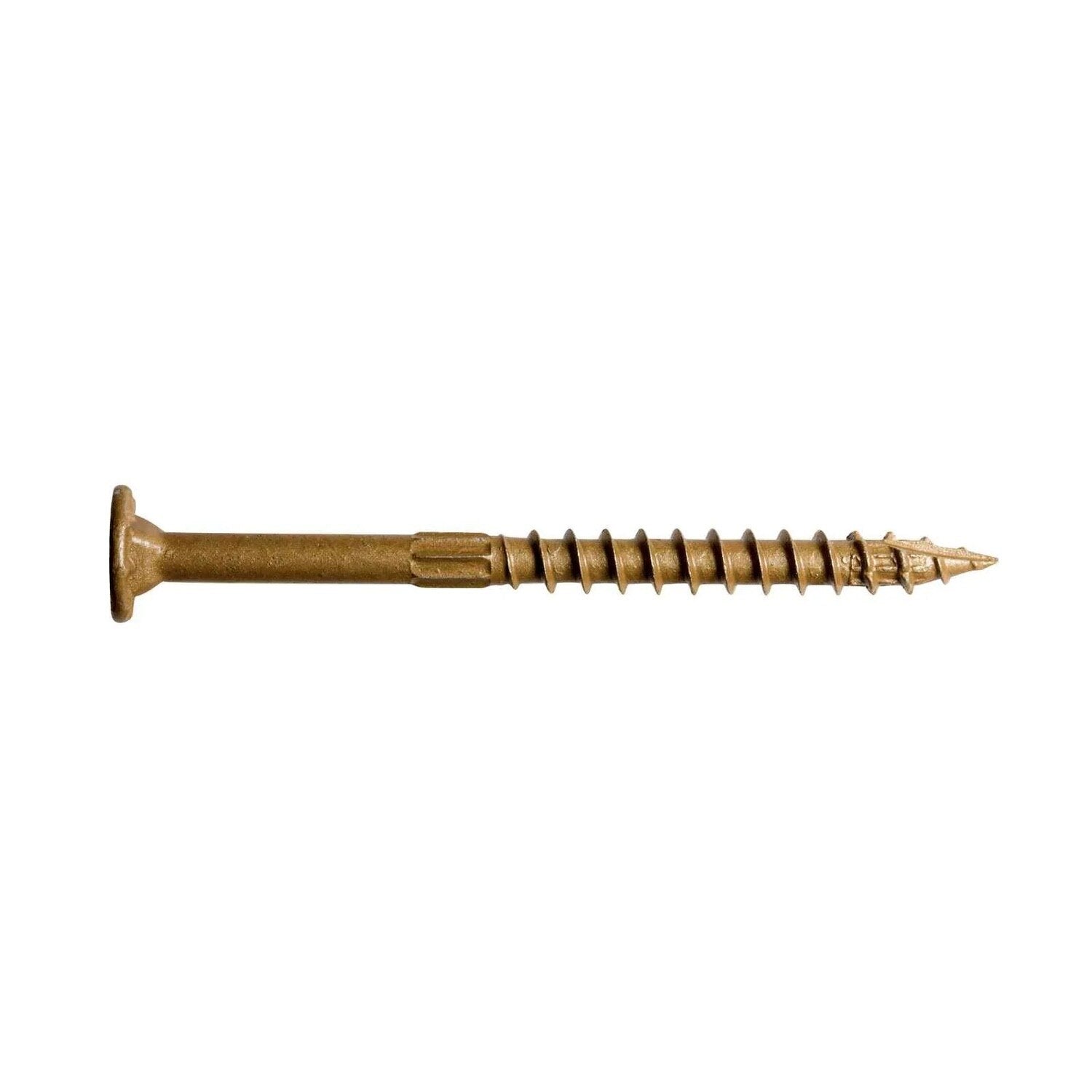

Simpson Strong-Tie SDWS16312Q Strong-Drive (0.160" x 3-1/2") T25 SDWS Framing Screw, Quik Guard Coating (750 Pack)
Free Shipping
$223.67
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie SDWS16312Q Description
The Simpson Strong-Tie SDWS Framing Screw is designed for superior wood-to-wood fastening, offering high holding power and pull-out resistance.
Simpson Strong-Tie SDWS16312Q Includes
- (750) Strong-Drive SDWS Framing Screw
Simpson Strong-Tie SDWS16312Q Features
- Washer head with underhead box nibs for increased bearing and clean countersinking
- SawTooth point for fast starts and reduced installation torque
- 6-lobe drive for positive bit engagement and longer bit life
- Quik Guard coating for indoor and outdoor protection
Simpson Strong-Tie SDWS16312Q Applications
- Framing applications requiring high holding power
- Indoor and outdoor wood-to-wood fastening
- Engineered wood projects
Simpson Strong-Tie SDWS16312Q Installation Overview
- Ensure the screw is installed straight into the side grain of the wood main member
- Use a T25 bit for installation
- Countersink the screw head for a clean finish
Simpson Strong-Tie SDWS16312Q Specifications
| Diameter | 0.160" |
| Finish | Quik Guard Coating |
| Length | 3-1/2" |
| Material | Carbon Steel |
| Drive type | T25 Star Drive |
| For Treated Lumber | Yes |
| Head type | Low Profile Head |
| Point type | Sawtooth Type 17 Point |
| Quantity | 750 |
| Thread type | Serrated Threads |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
