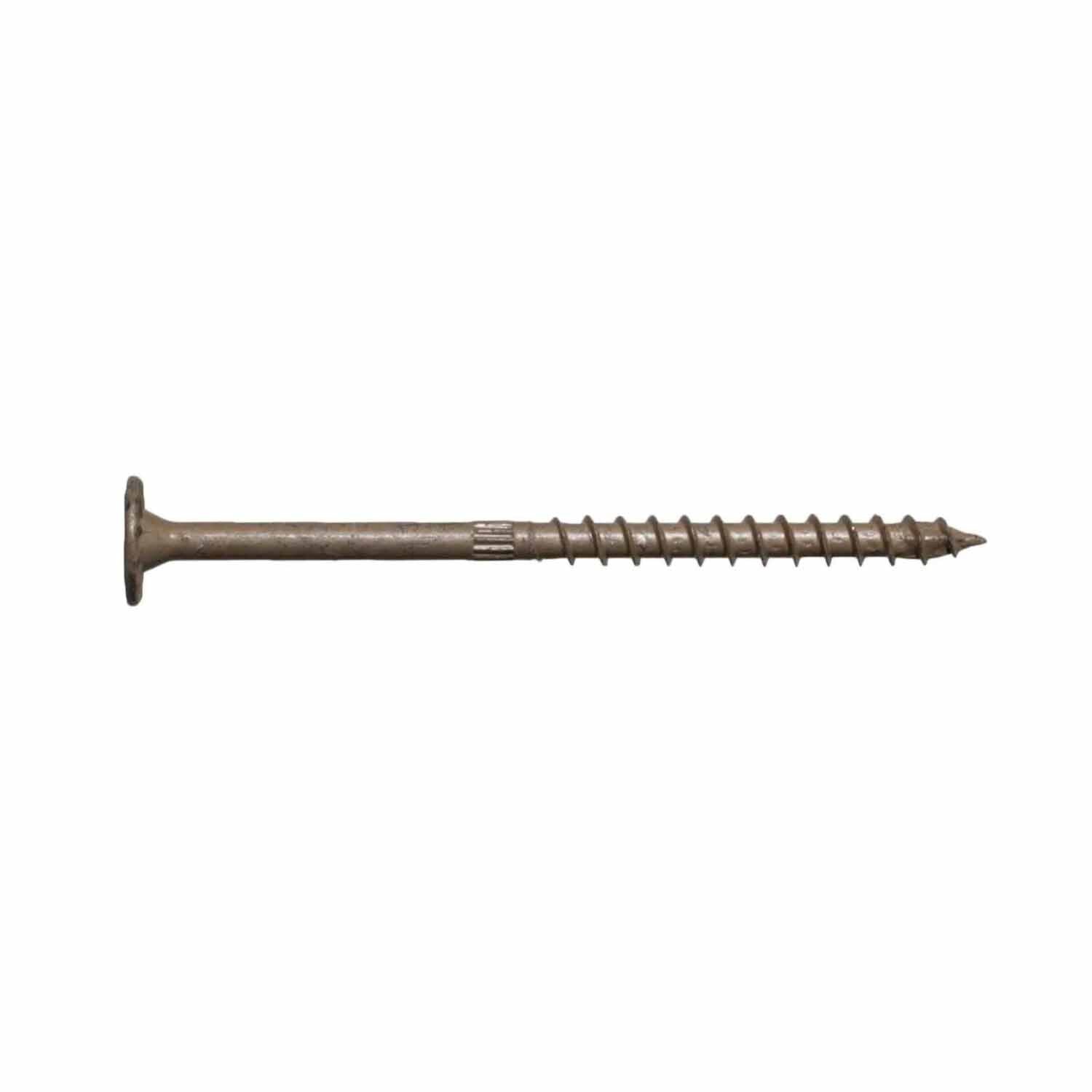

Simpson Strong-Tie SDWS22500DB Description
The Simpson Strong-Tie Strong-Drive SDWS Timber screw offers a high-strength, easy-to-install alternative to traditional lag screws and through-bolting. Featuring a double-barrier coating for corrosion resistance, this screw is ideal for exterior and preservative-treated wood applications, meeting code requirements for most wood framing projects.
Simpson Strong-Tie SDWS22500DB Includes
- (600) 0.220 in. x 5 in. Timber Screws
- (2) T40 6-Lobe Driver Bits
Simpson Strong-Tie SDWS22500DB Features
- SawTooth point ensures fast starts and reduces installation torque
- No predrilling required in most applications
- Bold thread design for superior holding power
- Underhead nibs allow flush driving with reduced splintering
- Large low-profile washer head for maximum bearing area (0.760 in. head diameter)
- Size identification on all SDWS screw heads
- 6-lobe T40 drive for positive engagement and improved bit life
- Double-barrier coating provides corrosion resistance equivalent to hot-dip galvanization
- Exterior grade for use in treated wood
- Tan color for discreet appearance
Simpson Strong-Tie SDWS22500DB Applications
- Wood-to-wood fastening in framing and construction
- Crating and packaging assembly
- Exterior wood projects requiring corrosion resistance
- General structural wood connections
Simpson Strong-Tie SDWS22500DB Installation Overview
- Use a low-speed 1/2-in. drill with the included T40 driver bit
- Align screw with fastening point in wood
- Drive screw until the washer head is flush with the surface
- No predrilling required for most wood types
Simpson Strong-Tie SDWS22500DB Specifications
| Diameter | 0.220 in. |
| Length | 5 in. |
| Head Type | Washer Head |
| Drive Type | T40 6-Lobe |
| Head Diameter | 0.760 in. |
| Thread Length | 3 in. |
| Finish | Double-Barrier Coating |
| Color | Tan |
| Material | Carbon Steel |
| Point Type | SawTooth Point |
| Packaging Quantity | 600 |
| Packaging Type | Bulk |
| UPC | 746056005254 |
NOTE: Always use the correct fasteners in the specified positions to achieve published load values.
