Simpson Anchors  |  SKU: SDWS22600DB-RP1  |  Barcode: 707392000099

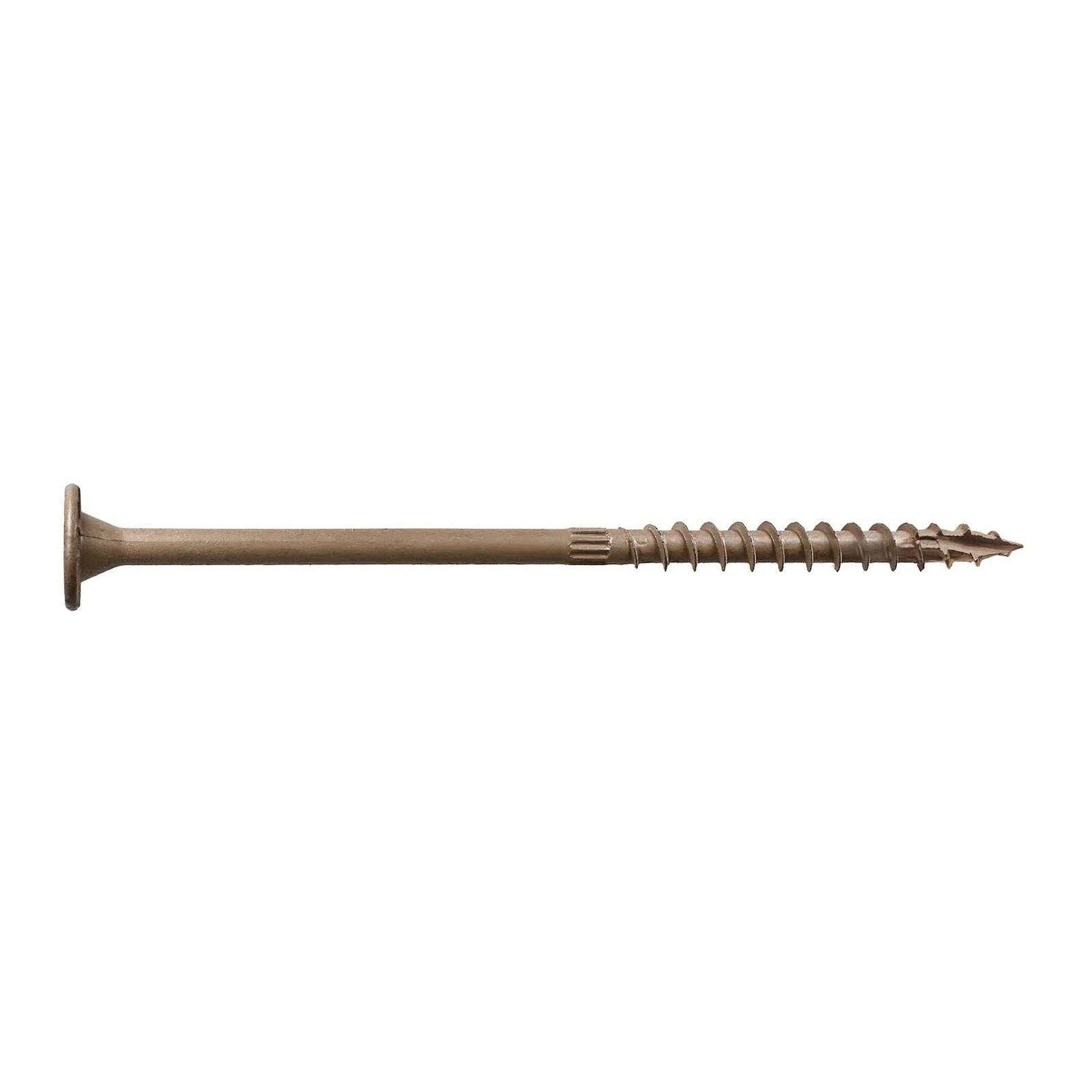

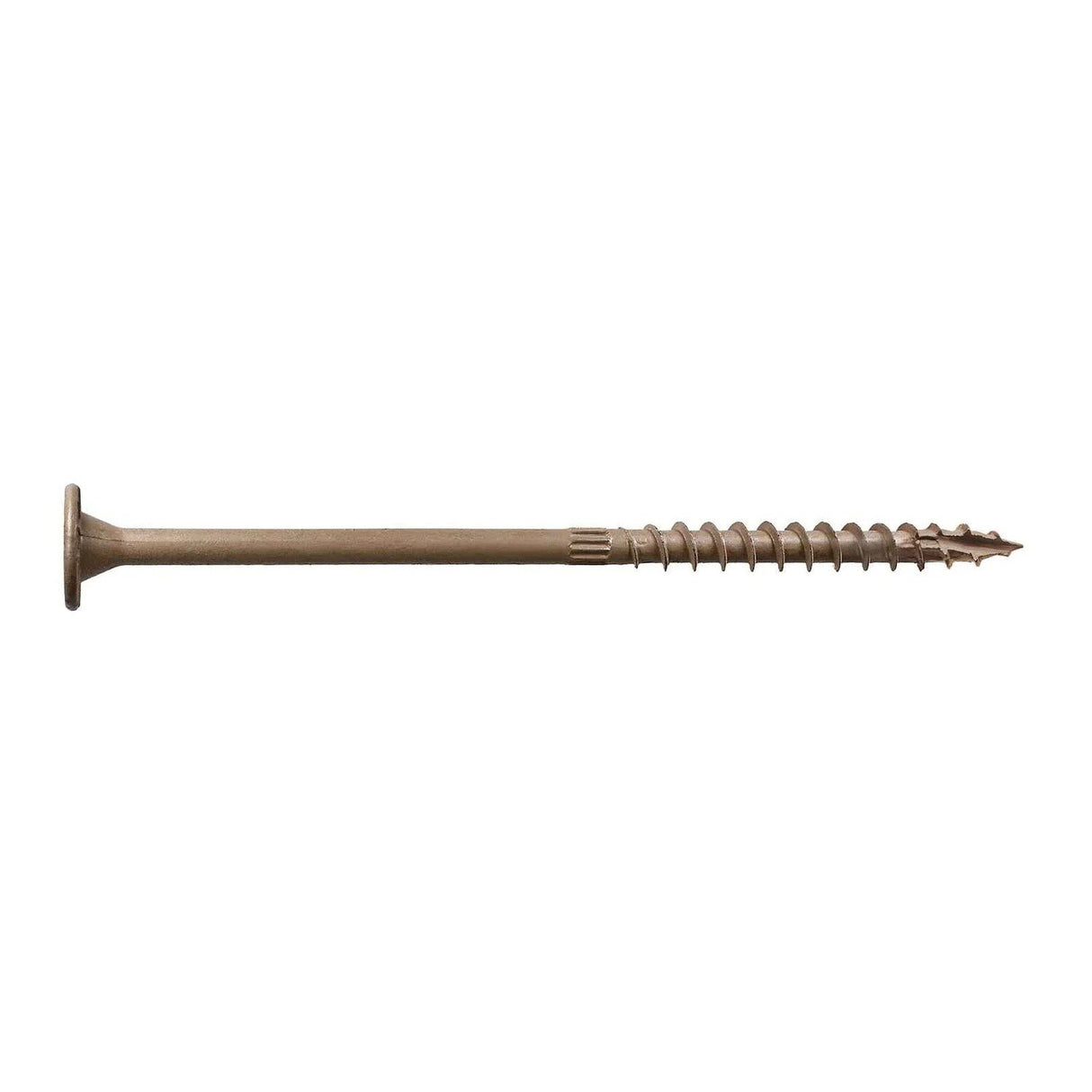

Simpson Strong-Tie SDWS22600DB-RP1 Strong-Drive (0.220" x 6 ") T40 SDWS Timber Screw (Exterior Grade) Tan

$1.82

Description

Simpson Strong-Tie SDWS22600DB-RP1 Description

The SDWS Timber Screw is designed for exterior wood applications, featuring a double barrier coating for enhanced corrosion resistance and a SawTooth point for easy installation.

Simpson Strong-Tie SDWS22600DB-RP1 Includes

  • (1) Timber Screw

Simpson Strong-Tie SDWS22600DB-RP1 Features

  • Bold thread design provides superior holding power
  • SawTooth point ensures fast starts and reduces installation torque
  • Underhead nibs allow for flush driving with reduced splintering
  • Large washer head provides a large bearing area
  • Size identification on all SDWS screw heads
  • 6-lobe T40 drive for positive engagement and improved bit life
  • Double-barrier coating for corrosion resistance equivalent to hot-dip galvanization

Simpson Strong-Tie SDWS22600DB-RP1 Applications

  • Structural wood-to-wood connections including ledgers
  • Mass timber connections such as CLT wall-to-wall and floor-to-floor
  • Surface splines and lap joints

Simpson Strong-Tie SDWS22600DB-RP1 Specifications

Diameter 0.220"
Finish Double Barrier Coating
Length 6"
Material Carbon Steel
Drive type T40 Star Drive
Head type Washer Head
Point type Sawtooth Point
Quantity 1

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
