Simpson Anchors  |  SKU: SDWS22600DBMB  |  Barcode: 746056682806

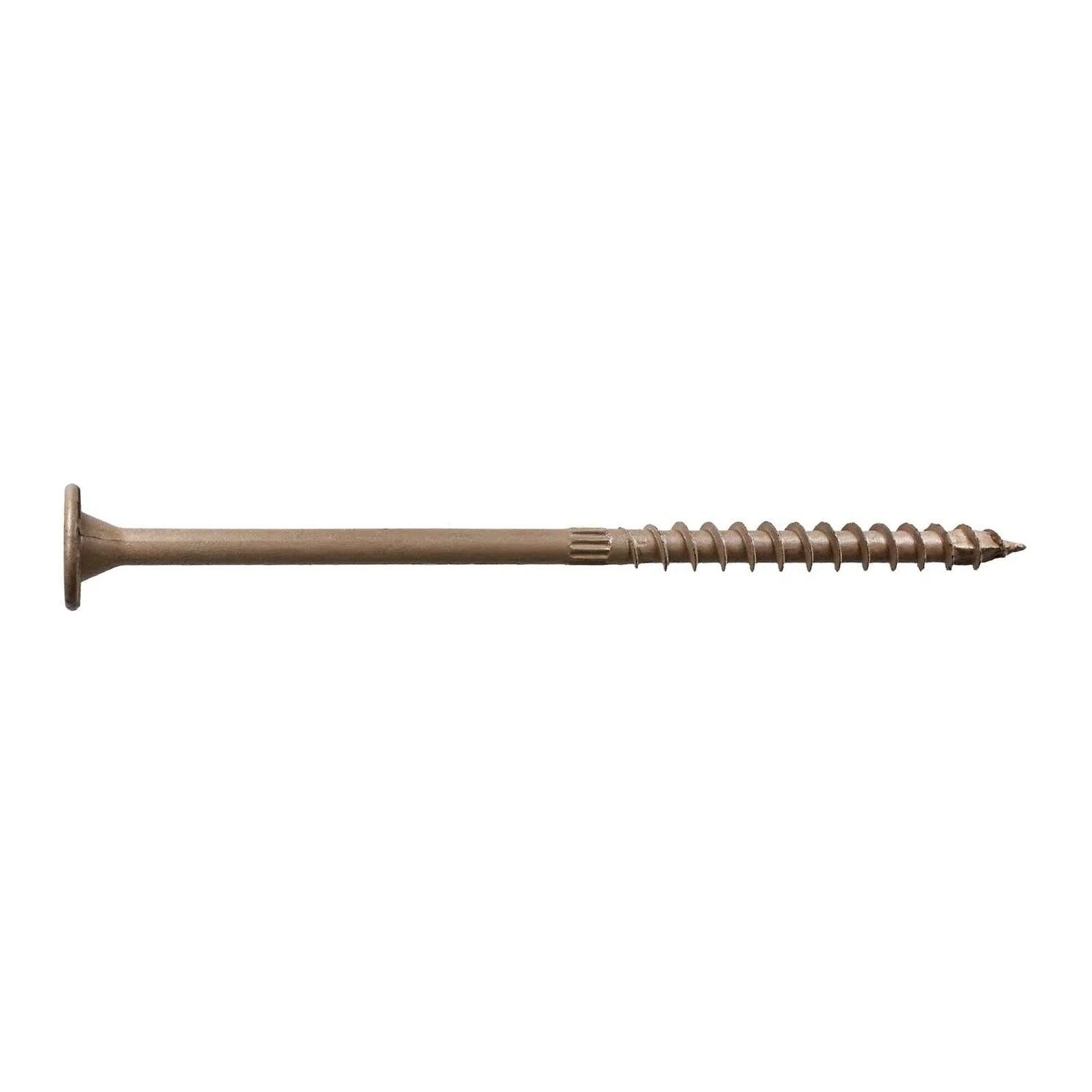

Simpson Strong-Tie SDWS22600DBMB Strong-Drive (0.220" x 6") T40 SDWS Timber Screw (Exterior Grade) Tan (250 Pack)

Free Shipping
$220.04

Description

Simpson SDWS22600DBMB Description

Strong-Tie SDWS Timber Screws are designed for wood-to-wood structural connections, featuring a double barrier coating for corrosion resistance and a SawTooth point for fast starts.

Simpson SDWS22600DBMB Includes

  • (250) 0.220" x 6" Timber Screw

Simpson SDWS22600DBMB Features

  • Bold thread design provides superior holding power
  • SawTooth point ensures fast starts and reduces installation torque
  • Underhead nibs allow for flush driving with reduced splintering
  • Large washer head provides a large bearing area
  • Size identification on all SDWS screw heads
  • 6-lobe T40 drive for positive engagement and improved bit life
  • Double-barrier coating for corrosion resistance equivalent to hot-dip galvanization

Simpson SDWS22600DBMB Applications

  • Structural wood-to-wood connections including ledgers
  • Mass timber connections such as CLT wall-to-wall and floor-to-floor
  • Surface splines and lap joints

Simpson SDWS22600DBMB Installation Overview

  1. Verify dimensions and alignment of wood members
  2. Position the screw at the desired location
  3. Drive the screw using a T40 star drive bit
  4. Ensure the screw is fully seated and flush with the surface

Simpson SDWS22600DBMB Specifications

Diameter 0.220"
Length 6"
Material Carbon Steel
Finish Double Barrier Coating
Drive Type T40 Star Drive
Head Diameter 0.75"
Thread Length 2-3/4"
Point Type SawTooth
Quantity 250

NOTE: Ensure the correct fasteners are installed in the correct position to achieve published load values
