Simpson Anchors | SKU:
SDWS22800DB-R50

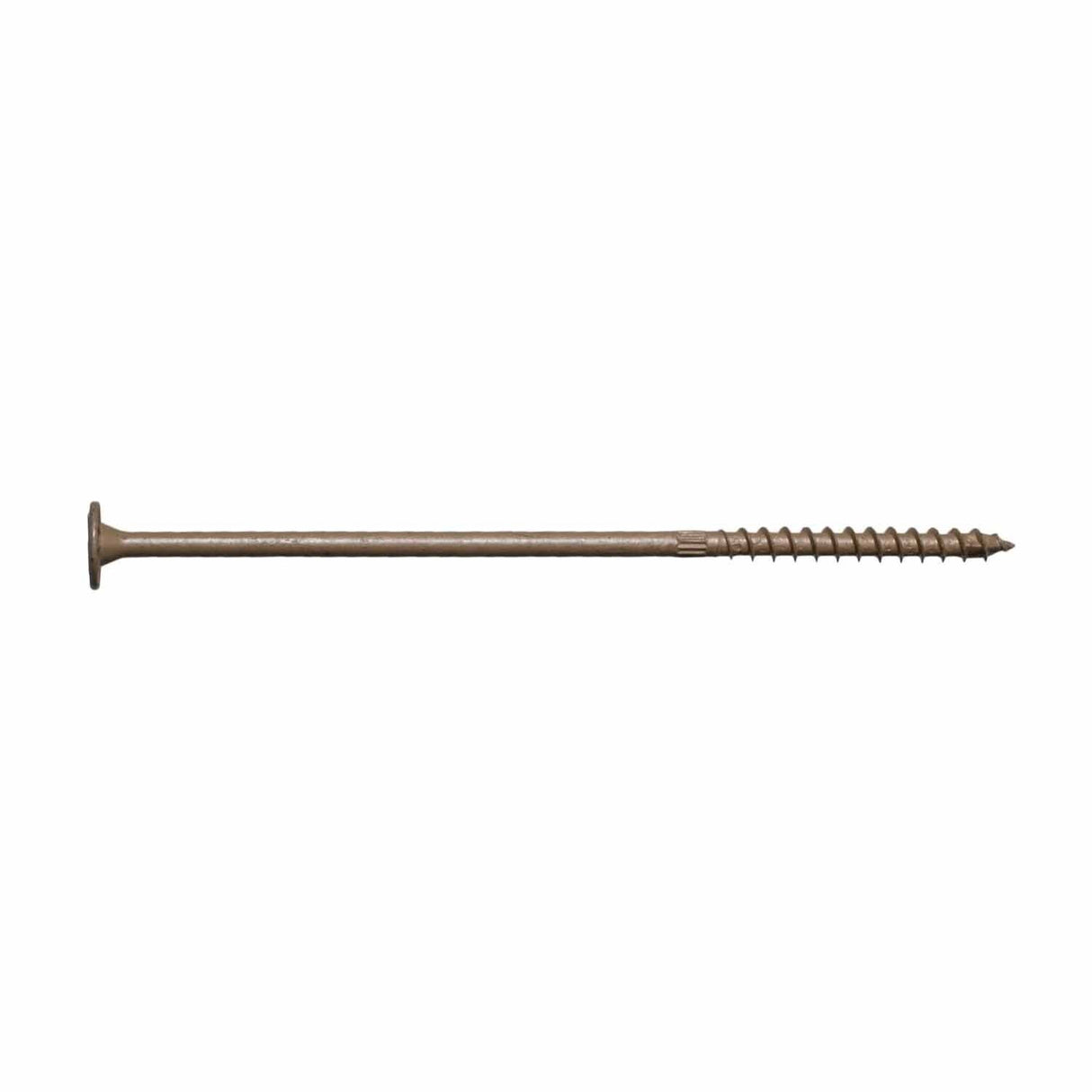

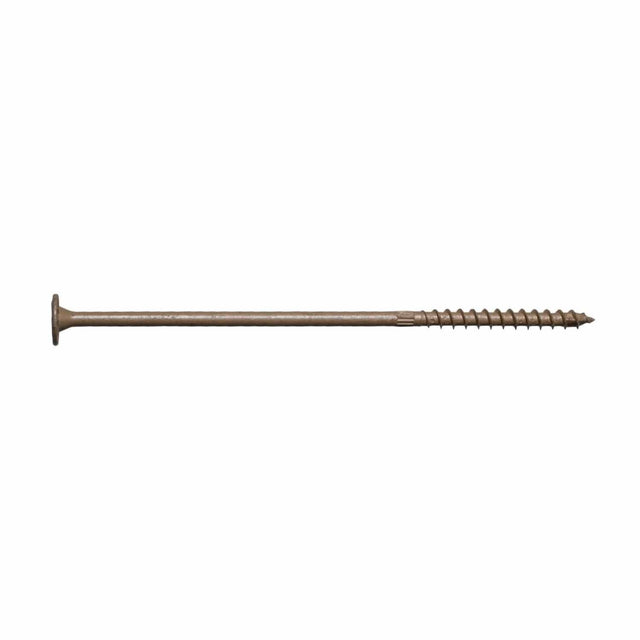

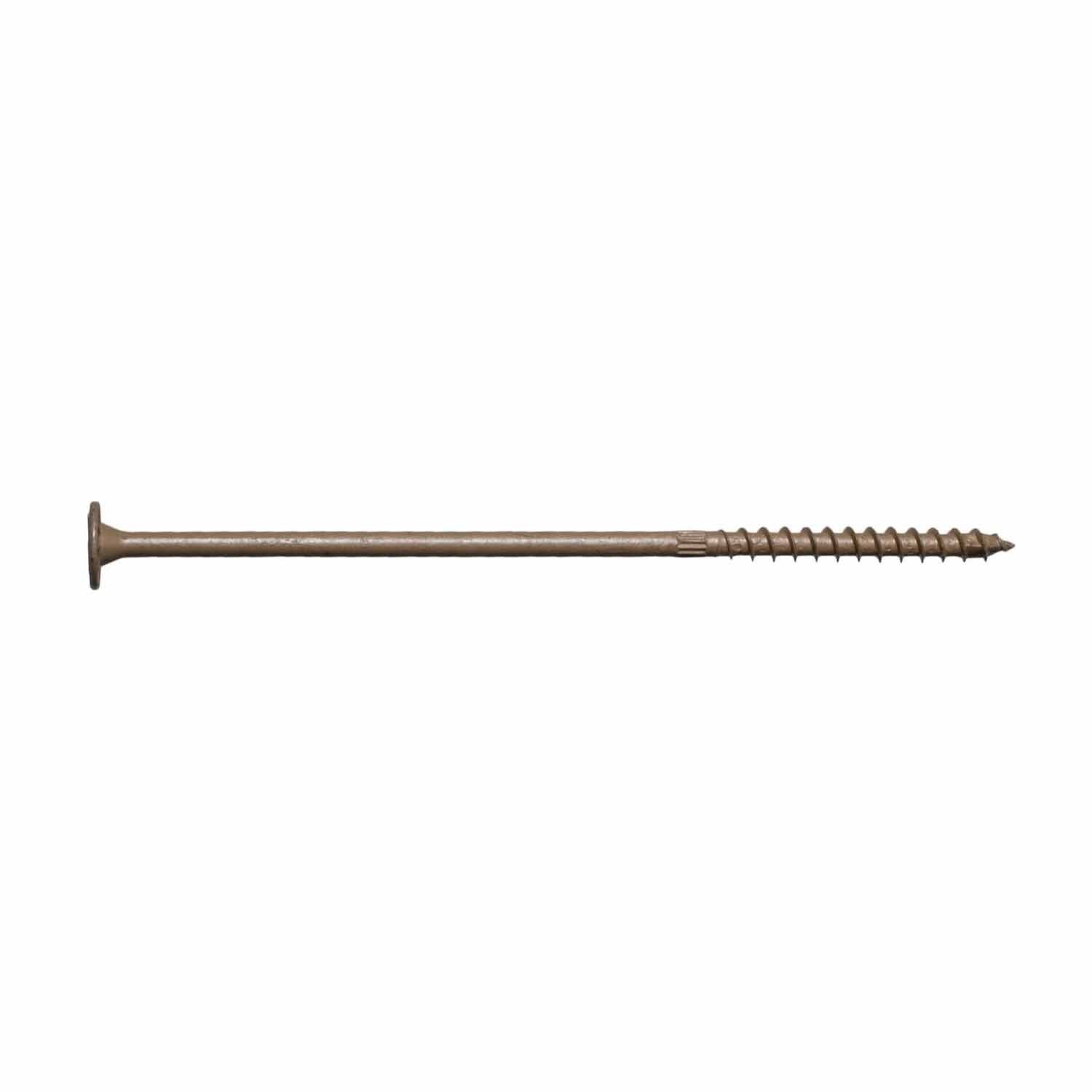

Simpson Strong-Tie SDWS22800DB-R50 Strong-Drive (0.220" x 8") T40 SDWS Timber Screw (Exterior Grade) Tan (50 Pack)
$67.94
Unit price
/
Unavailable
Description
Description
Simpson SDWS22800DB-R50 Description
Strong-Tie SDWS Timber Screws feature a 4CUT tip for easy installation without pre-drilling and a double barrier coating for enhanced durability in exterior applications.
Simpson SDWS22800DB-R50 Includes
- (50) 0.220 in. x 8 in. Timber Screw
Simpson SDWS22800DB-R50 Features
- 4CUT tip eliminates the need for pre-drilling
- Double barrier coating equivalent to hot dip galvanization
- Suitable for exterior and preservative treated wood applications
- T40 Star Drive for secure fastening
- Made from durable carbon steel
Simpson SDWS22800DB-R50 Applications
- Exterior wood construction
- Preservative treated wood applications
- General timber fastening
Simpson SDWS22800DB-R50 Installation Overview
- Ensure the wood surface is clean and dry.
- Align the screw with the desired fastening point.
- Drive the screw using a T40 Star Drive tool.
- Verify the screw is securely fastened.
Simpson SDWS22800DB-R50 Specifications
| Diameter | 0.220" |
| Finish | Double Barrier Coating |
| Length | 8" |
| Material | Carbon Steel |
| Drive type | T40 Star Drive |
| Head diameter | .75" |
| Point type | Sawtooth |
| Quantity | 50 |
| Thread length | 2-3/4" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
