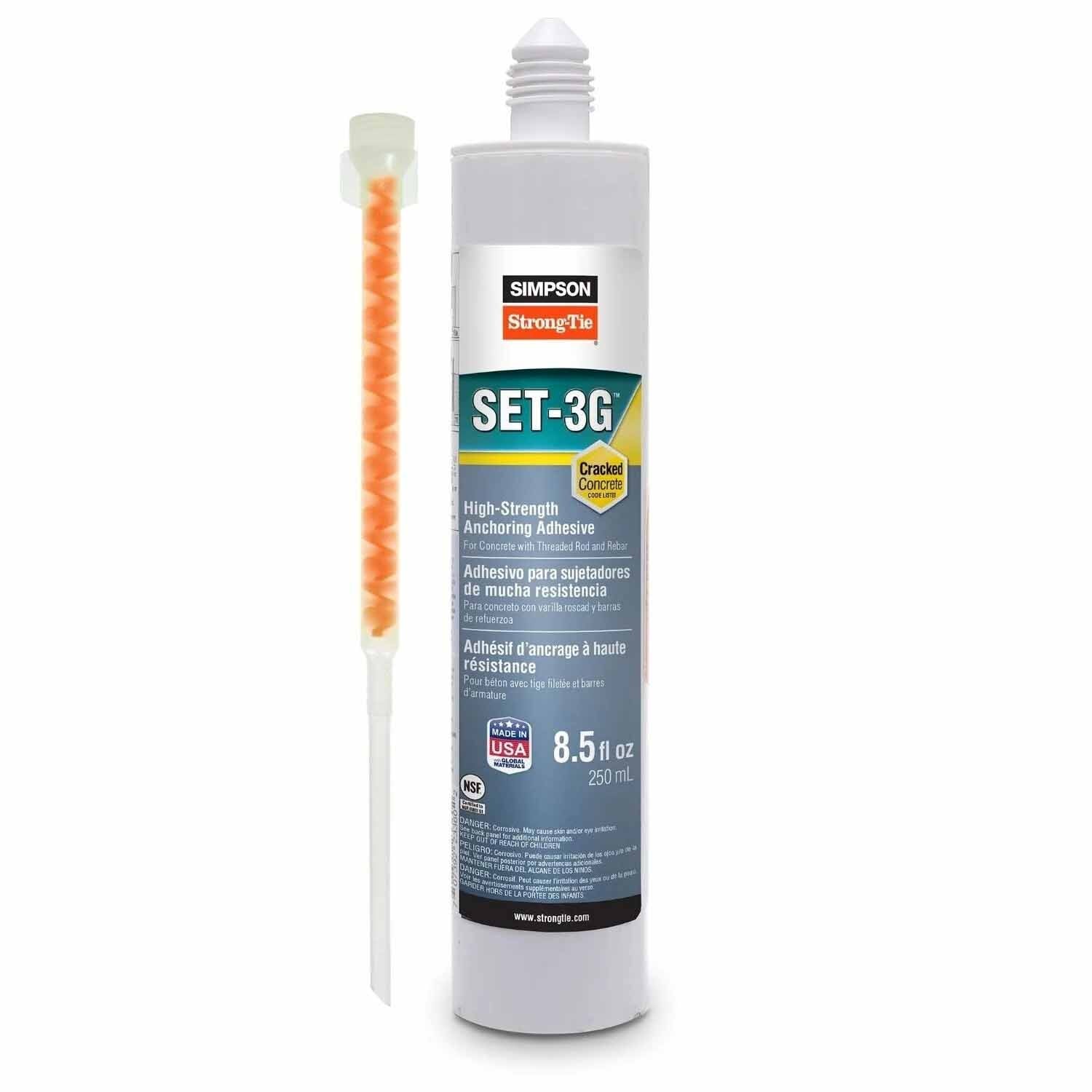

Simpson Strong-Tie SET3G10 (8.5 oz) High-Strength Epoxy Adhesive Cartridge with Nozzle and Extension (1 Piece)

Simpson SET3G10 Features

• Exceptional performance with superior bond strengths for ductile solutions in high seismic areas.
• Improved sustained load performance at elevated temperatures.
• Versatile for all base material conditions with in-service temperatures from -40°F to 176°F.
• Recognized per ICC ES AC308 for post-installed rebar development and splice length design provisions.
• Approved for installation with multiple vacuum-drill bit systems without further hole cleaning.
• Wire brush hole-cleaning system for conventional blow-brush-blow cleaning method.
• Low-odor formulation.
• Manufactured in the USA using global materials.
• Compatible with potable water applications.

Simpson SET3G10 Applications

• Threaded rod anchor and rebar dowel installations in cracked and uncracked concrete under various environmental conditions.
• Installation in downward, horizontal, and upwardly inclined orientations, including overhead.
• Qualified for use in structures assigned to Seismic Design Categories A through F.

Simpson SET3G10 Installation Overview

1. Ensure surfaces to receive epoxy are clean per approved hole cleaning method.
2. Base-material temperatures must be 40°F or above during installation.
3. Condition adhesive to a temperature between 70°F and 80°F for optimal results.
4. Store cartridges in a warm, uniformly heated area to warm cold adhesive.
5. Mixed material can harden in the dispensing nozzle within 30 minutes at 70°F.
6. Use only Simpson Strong-Tie mixing nozzles as per instructions.
7. Refer to the Adhesive Anchoring Installation Instructions for full details.
