Simpson Strong-Tie SHH3/68-KT24 Description
The Simpson Strong-Tie SHH steel header hanger is designed to support traditional CFS box headers and large-flange lay-in headers, offering minimized drywall buildup and versatile screw-hole layouts for various flange sizes.
Simpson Strong-Tie SHH3/68-KT24 Includes

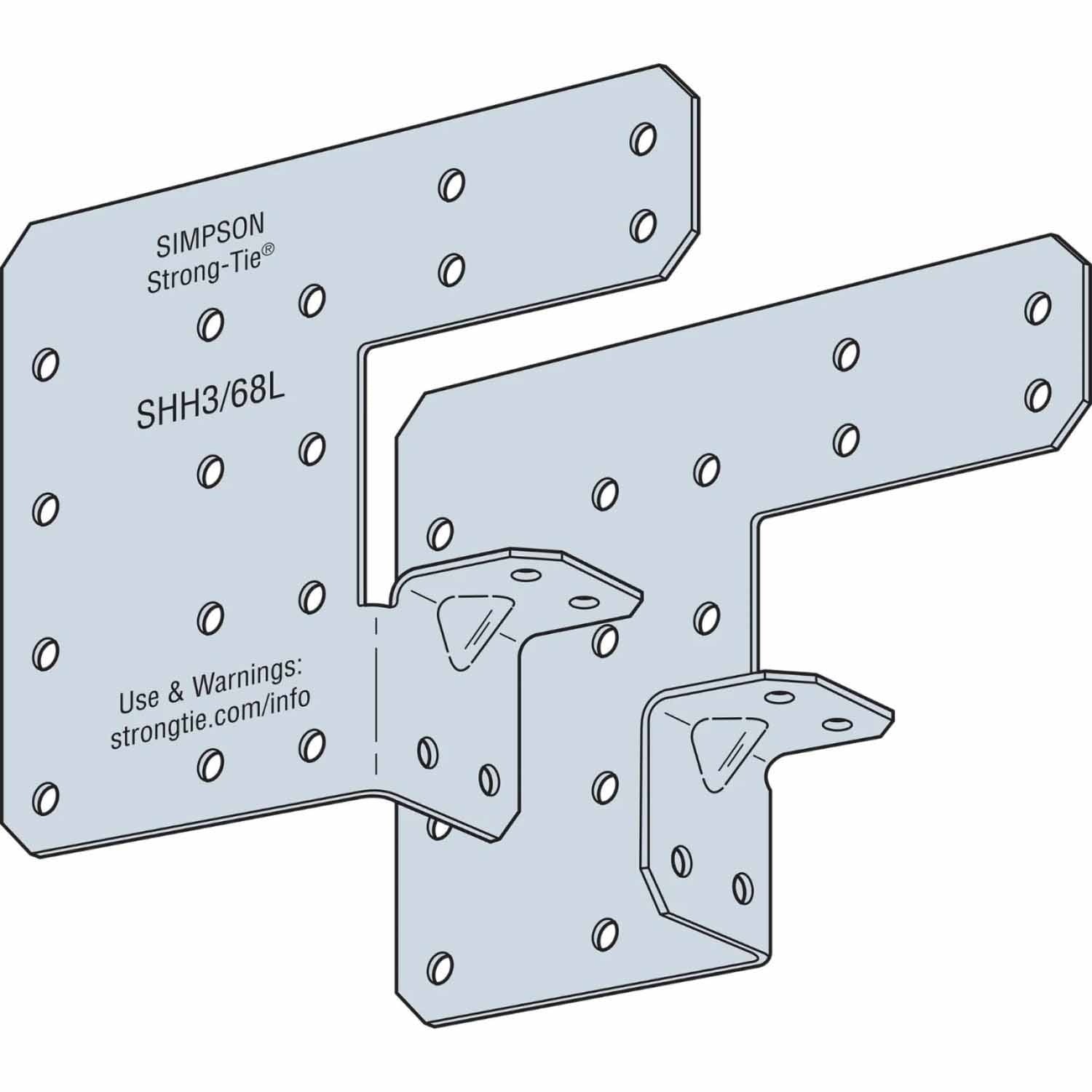

- (12) Right-handed connectors
- (12) Left-handed connectors
Simpson Strong-Tie SHH3/68-KT24 Features
- Transfers wind load from the horizontal window header to the jamb studs
- Supports header assembly during installation
- Manufactured from 68 mil (14 ga.) steel for durability
- Coped gusset portion for easier drywall installation
- Versatile screw-hole layout for various flange sizes
Simpson Strong-Tie SHH3/68-KT24 Applications
- Cold-Formed Steel construction
- Curtain-wall construction
- Supporting traditional CFS box headers
Simpson Strong-Tie SHH3/68-KT24 Installation Overview
- Use all specified anchors/fasteners

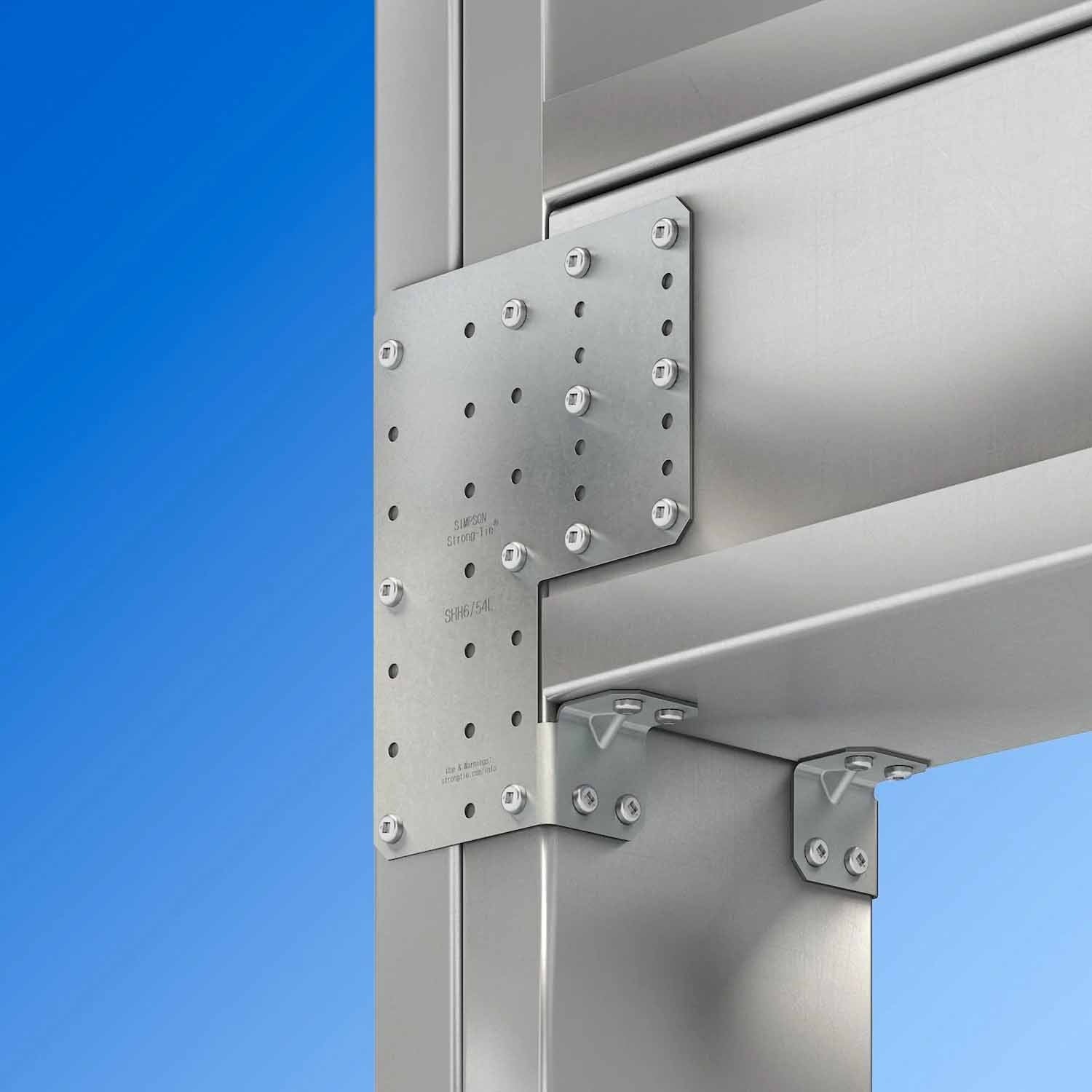

- Install one SHH connector on each side of the header at each connection to a jamb stud
- Allow a maximum gap of 1/8" between the end of the header and the face of the jamb stud
Simpson Strong-Tie SHH3/68-KT24 Specifications
| Material | Carbon Steel |
| Finish | G90 Galvanized |
| Gauge | 14 |
| Thickness | 68 mil |
| Dimensions | 4-3/8 in. x 5-5/8 in. |
| Weight | 11.5 lb |
| Packaging Quantity | 24 |
Toolup Part # :
821720
