Simpson SHH6/54-KT24 Description

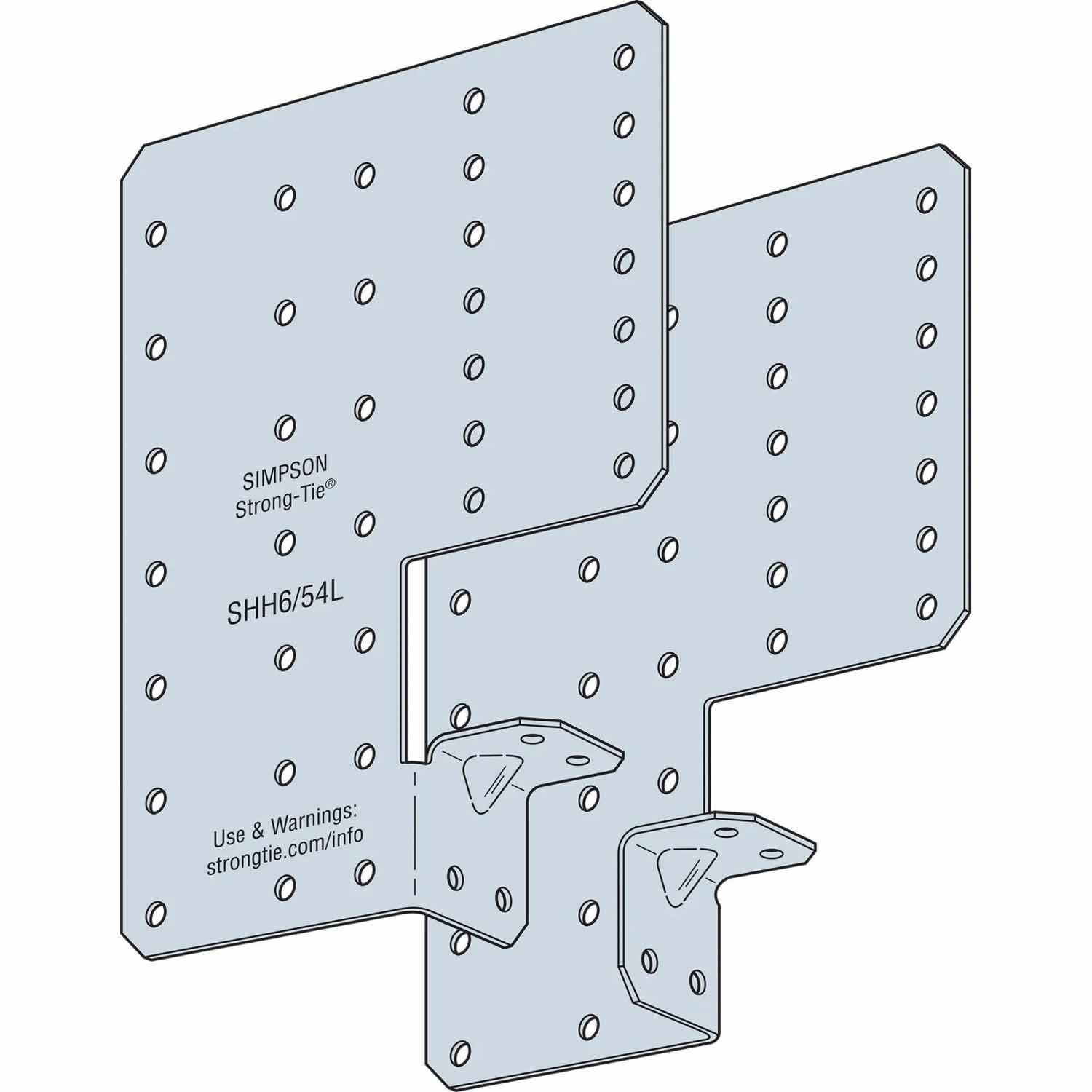

The Simpson SHH6/54-KT24 Steel Header Hanger is designed for supporting traditional CFS box headers and large-flange lay-in headers, offering minimized drywall buildup and versatile screw-hole layouts.
Simpson SHH6/54-KT24 Includes
- (12) Right-Handed Connectors
- (12) Left-Handed Connectors
Simpson SHH6/54-KT24 Features

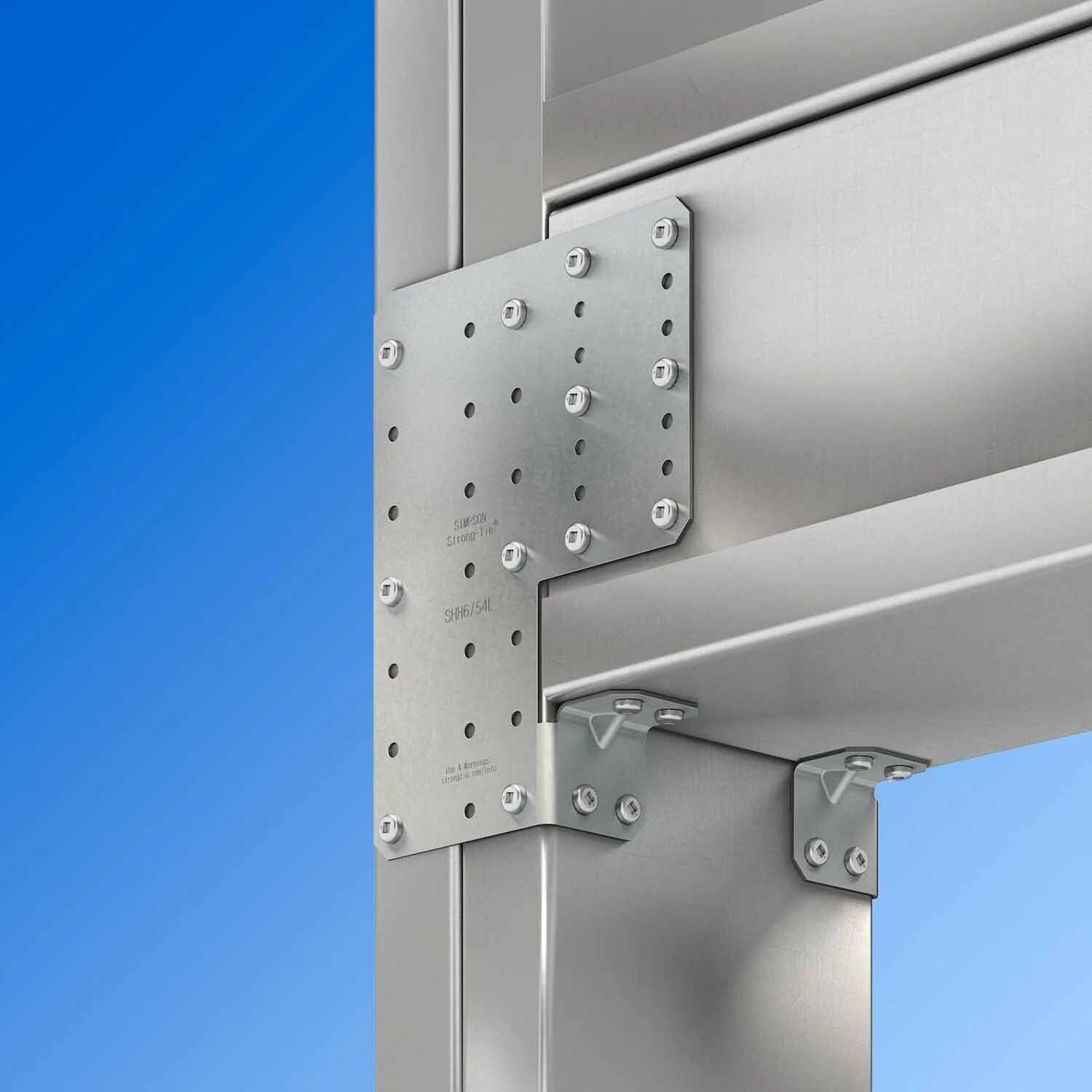

- Transfers wind load from horizontal window header to jamb studs
- Supports header assembly during installation
- Manufactured in 54 mil (16 ga.) steel
- Coped gusset portion for easier drywall installation
- Versatile screw-hole layout for various flange sizes
Simpson SHH6/54-KT24 Applications
- Cold-Formed Steel Construction
- Curtain-Wall Construction
- Supporting CFS Box Headers
- Large-Flange Lay-In Headers
Simpson SHH6/54-KT24 Installation Overview
- Use all specified anchors/fasteners
- Install one SHH connector on each side of the header
- Allow a maximum gap of 1/8" between the header and jamb stud
- Ensure connectors are installed in pairs
Simpson SHH6/54-KT24 Specifications
| Material | Carbon Steel |
| Finish | G90 Galvanized |
| Thickness | 54 mil (16 ga.) |
| Height | 7-3/16 in. |
| Width | 5-5/8 in. |
| Weight | 15.3 lb |
| Packaging Quantity | 24 |
NOTE: Ensure all specified fasteners are used and connectors are installed in pairs to achieve listed loads
