Simpson Strong-Tie SJC8.25-R15 Description

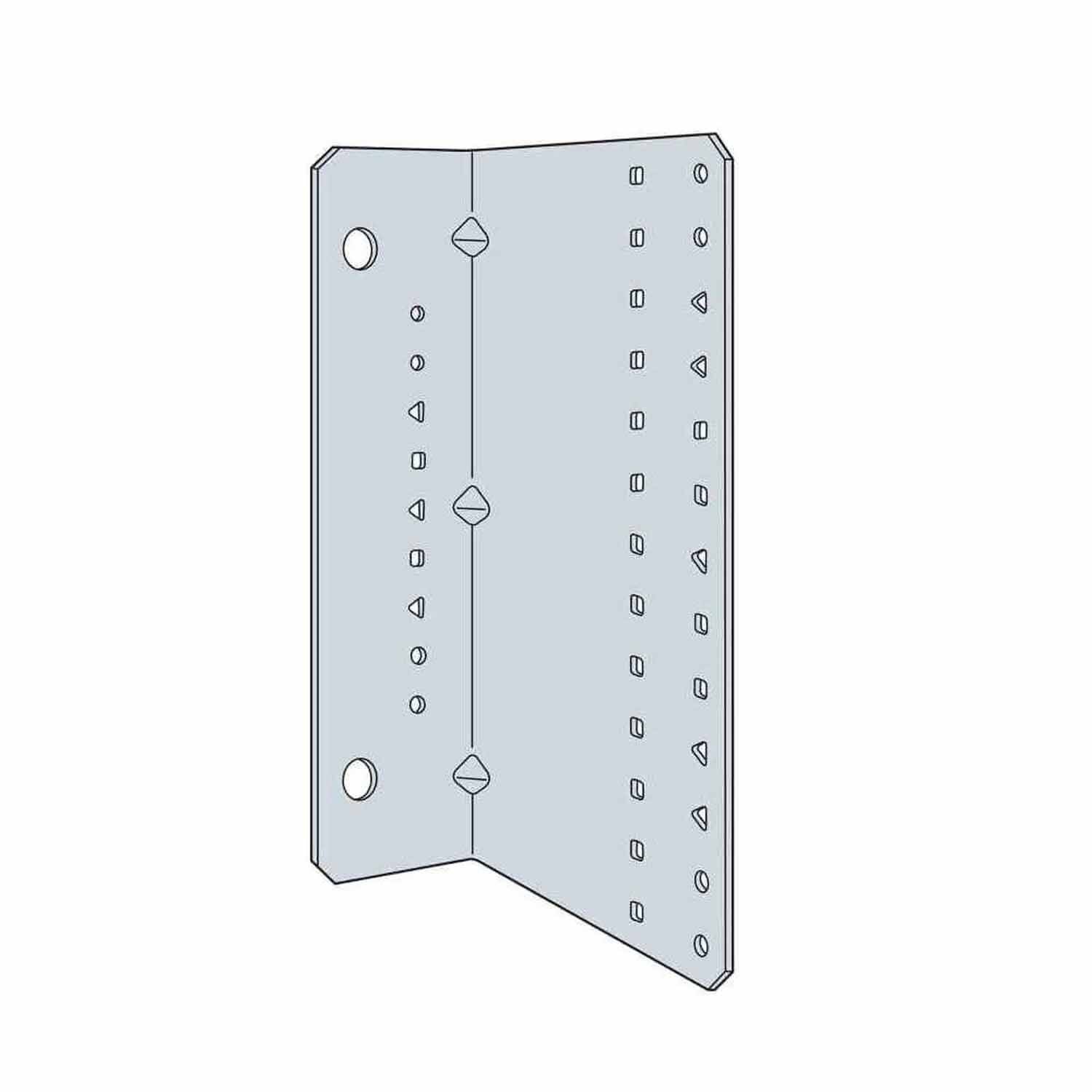

The SJC8.25-R15 Steel Joist Connector is designed for CFS joists, rafters, and metal-deck applications, featuring a G90 Galvanized finish for corrosion resistance.
Simpson Strong-Tie SJC8.25-R15 Includes
- (15) Steel Joist Connector
Simpson Strong-Tie SJC8.25-R15 Features
- Prepunched holes reduce installation cost by eliminating predrilling
- Intuitive fastener hole positions ensure accurate clip installation
- Angle lengths accommodate either hard-side or soft-side attachment
- 4 1/2" leg length enables soft-side connections for joists with flanges up to 3 1/2"
- Accommodates kicker-to-metal-deck applications
Simpson Strong-Tie SJC8.25-R15 Applications
- CFS joist and rafter connections
- Metal-deck applications
- Kicker-to-metal-deck connections
Simpson Strong-Tie SJC8.25-R15 Installation Overview
- Use all specified fasteners/anchors
Simpson Strong-Tie SJC8.25-R15 Specifications
| Material | 68 mil (50 ksi) |
| Finish | G90 Galvanized |
| Gauge | 14 |
| Dimensions | 2 3/16 x 4 1/2 in. |
| Length | 8 1/4 in. |
| Packaging Quantity | 15 |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
