Simpson Strong-Tie SL25200PF Description

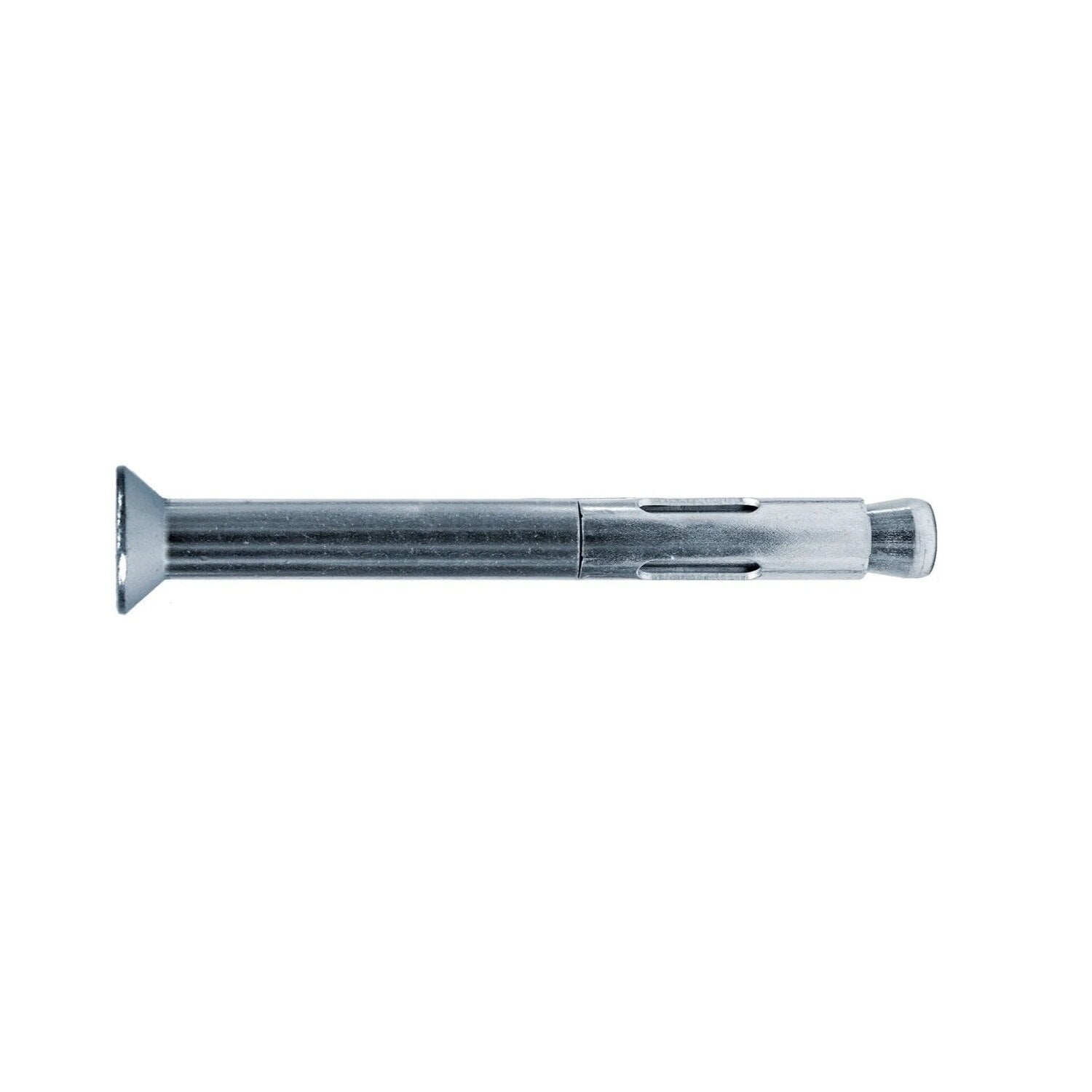

The Sleeve-All Phillips Flat-Head Sleeve Anchor is a zinc-plated, pre-assembled expanding anchor designed for use in solid base materials such as concrete and brick. It offers reliable performance in structural applications.
Simpson Strong-Tie SL25200PF Includes
- (100) Sleeve-All Phillips Flat-Head Sleeve Anchor
Simpson Strong-Tie SL25200PF Features
- Zinc-plated for corrosion resistance
- Pre-assembled expanding anchor
- Designed for solid base materials
- Reliable performance in structural applications
Simpson Strong-Tie SL25200PF Applications
- Securing into concrete and brick
- Hollow and grouted CMU applications
- Structural anchoring needs
Simpson Strong-Tie SL25200PF Installation Overview
- Drill a hole in the base material using a carbide drill bit of the same diameter as the anchor.
- Drill to the specified embedment depth and clean the hole.
- Place the anchor in the fixture and drive it into the hole.
- Tighten to the required installation torque.
Simpson Strong-Tie SL25200PF Specifications
| Material | Carbon steel |
| Finish | Zinc-plated |
| Diameter | 1/4" |
| Length | 2" |
| Head Type | Phillips Flat |
| Drill Bit Size | 1/4" |
| Quantity | 100 |
NOTE: Oversized holes will make it difficult to set the anchor and will reduce the anchor's load capacity.
