Simpson Anchors | SKU:
SL25214A

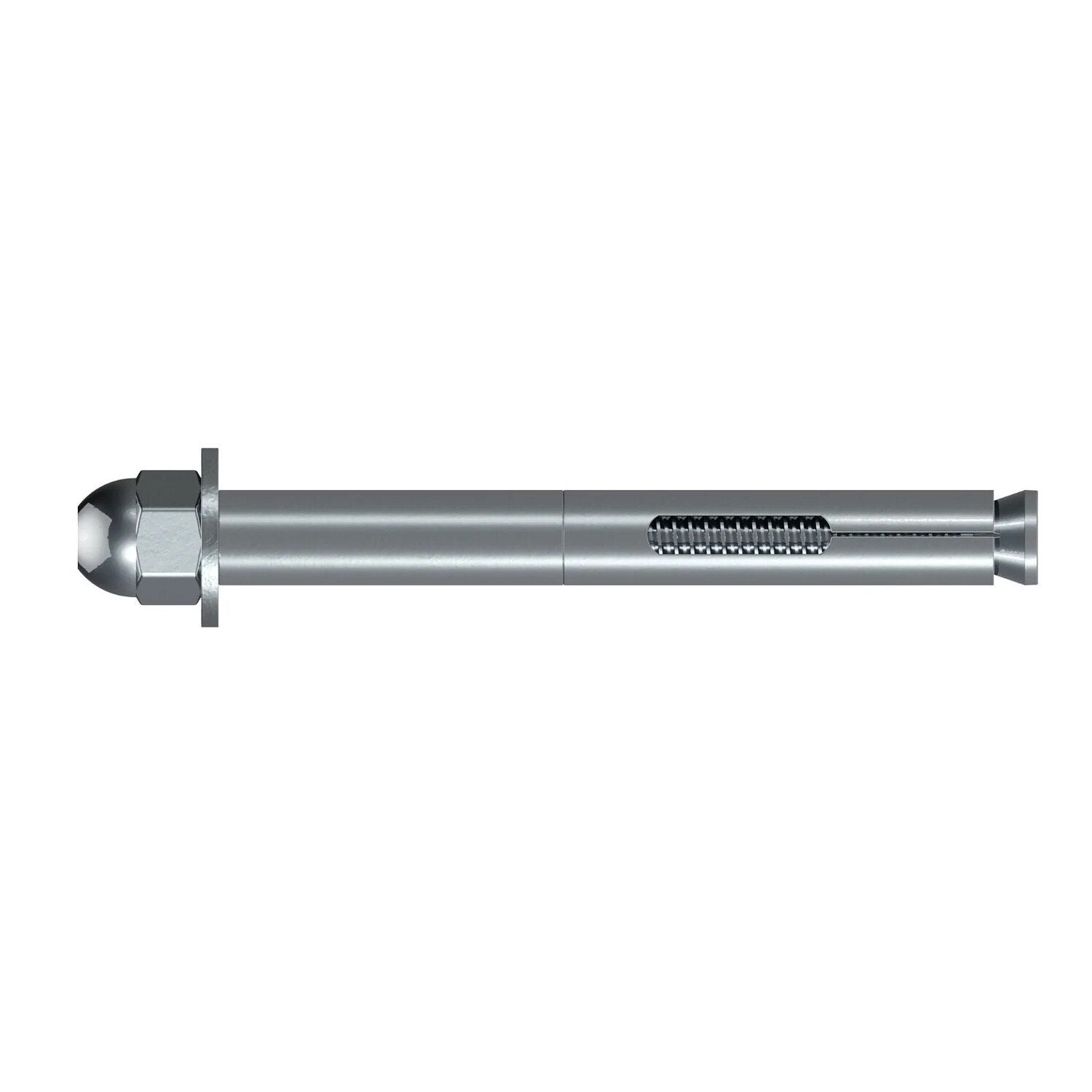

Simpson Strong-Tie SL25214A (1/4" x 2-1/4") Sleeve-All Acorn-Head Sleeve Anchor (100 Pack)
$30.41
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie SL25214A Description
Strong-Tie Sleeve-All wedge anchors are pre-assembled expanding anchors for use in solid base materials. They secure into concrete and brick to hollow and grouted CMU.
Simpson Strong-Tie SL25214A Includes
- (100) Sleeve-All Acorn-Head Sleeve Anchor
Simpson Strong-Tie SL25214A Features
- Pre-assembled expanding anchors
- Optimal performance in demanding structural applications
- Available in acorn, hex, rod coupler, and flat head options
Simpson Strong-Tie SL25214A Applications
- Securing into concrete and brick
- Hollow and grouted CMU applications
- Structural anchoring in solid base materials
Simpson Strong-Tie SL25214A Installation Overview
- Drill a hole in the base material using a carbide drill bit the same diameter as the nominal diameter of the anchor.
- Drill the hole to the specified embedment depth, and blow it clean using compressed air.
- Place the anchor in the fixture, and drive it into the hole until the washer and nut are tight against the fixture.
- Tighten to required installation torque.
Simpson Strong-Tie SL25214A Specifications
| Material | Carbon steel |
| Finish | Zinc plated |
| Diameter | 1/4" |
| Length | 2-1/4" |
| Drill bit size | 1/4" |
| Head type | Acorn Head |
| Quantity | 100 |
NOTE: Oversized holes will make it difficult to set the anchor and will reduce the anchor's load capacity.
