Simpson Anchors | SKU:
SL25214AP1
Simpson Strong-Tie SL25214AP1 (1/4" x 2-1/4") Sleeve-All Acorn-Head Sleeve Anchor (1 Piece)
$0.79
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie SL25214AP1 Description

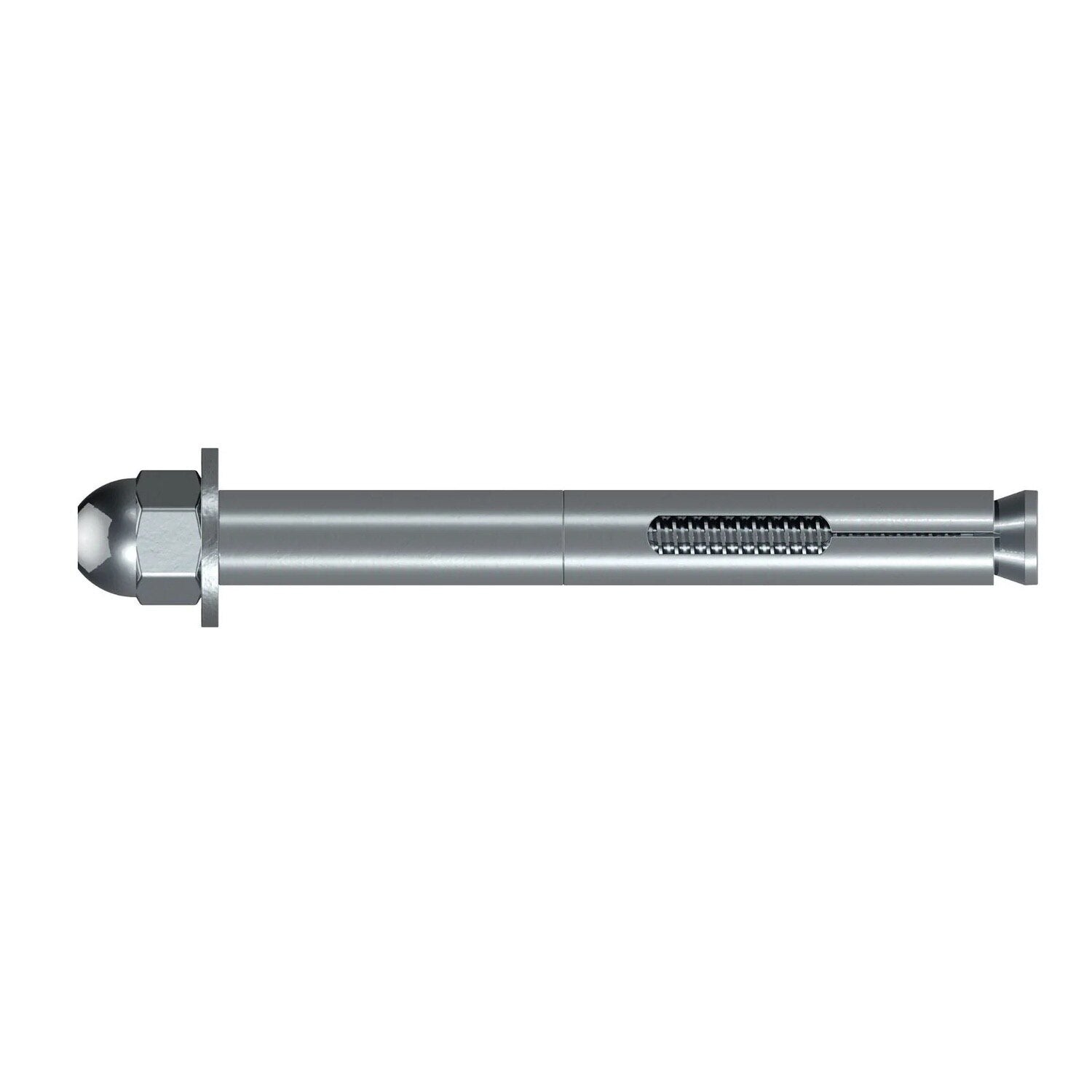

The Simpson Strong-Tie Sleeve-All Acorn-Head Sleeve Anchor is a reliable mechanical anchor designed for solid base materials. It is ideal for securing into concrete, brick, and CMU.
Simpson Strong-Tie SL25214AP1 Includes
- (1) Sleeve-All Acorn-Head Sleeve Anchor
Simpson Strong-Tie SL25214AP1 Features
- Pre-assembled expanding anchor for solid base materials
- Optimal performance in structural applications
- Available in various head options for versatility
Simpson Strong-Tie SL25214AP1 Applications
- Securing into concrete and brick
- Hollow and grouted CMU applications
- Demanding structural anchoring tasks
Simpson Strong-Tie SL25214AP1 Installation Overview
- Drill a hole in the base material using a carbide drill bit of the same diameter as the anchor.
- Drill to the specified embedment depth and clean the hole.
- Place the anchor in the fixture and drive it into the hole.
- Tighten to the required installation torque.
Simpson Strong-Tie SL25214AP1 Specifications
| Diameter | 1/4" |
| Finish | Zinc Plated |
| Length | 2-1/4" |
| Material | Carbon Steel |
| Drill bit size | 1/4" |
| Head type | Acorn head |
NOTE: Oversized holes will make it difficult to set the anchor and will reduce the anchor's load capacity.
