Simpson Anchors | SKU:
SL31212HP1

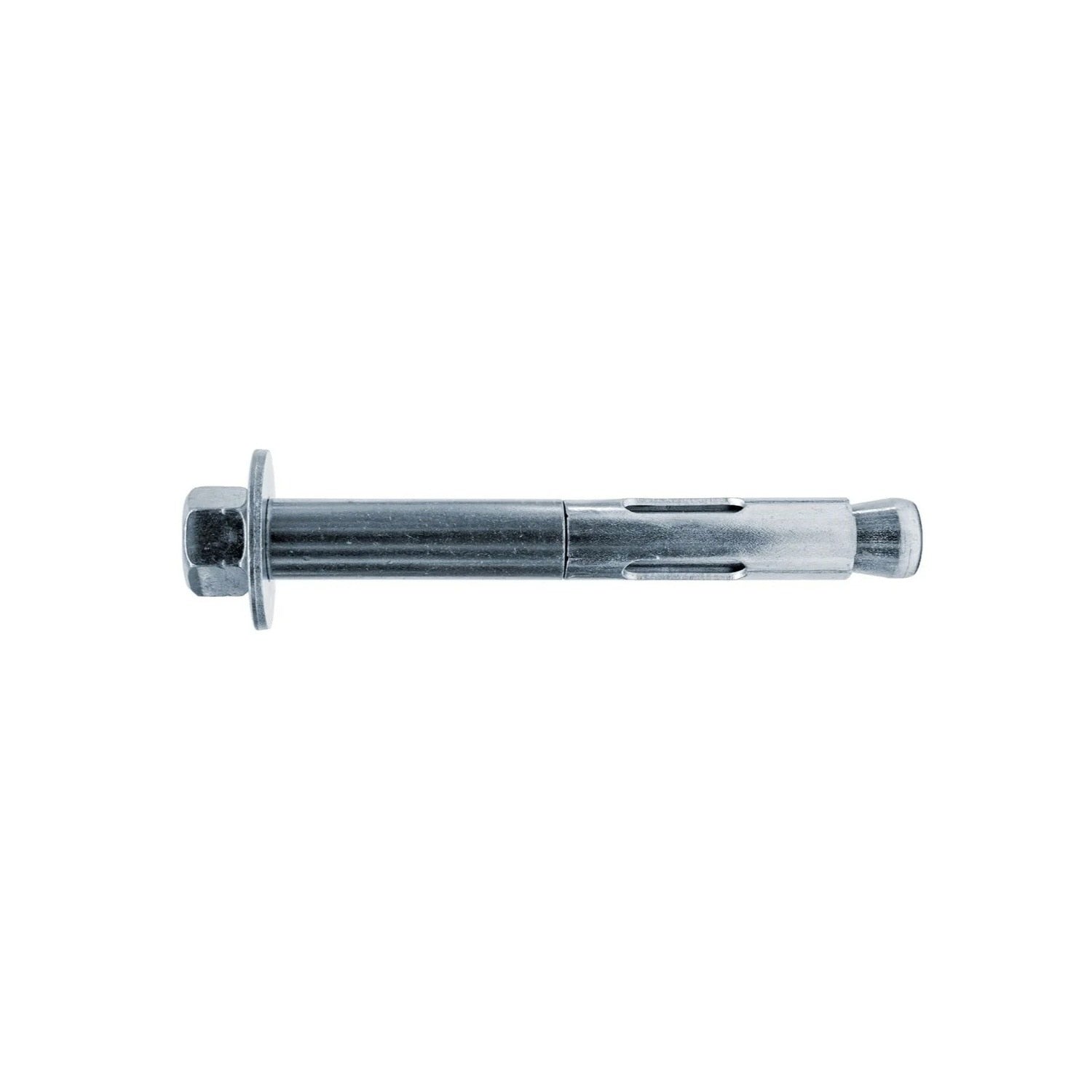

Simpson Strong-Tie SL31212HP1 (5/16" x 2-1/2") Sleeve-All Hex-Head Sleeve Anchor
$0.61
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie SL31212HP1 Description
The Simpson Strong-Tie Sleeve-All wedge anchor is a pre-assembled expanding anchor designed for use in solid base materials, providing secure fastening in concrete and brick.
Simpson Strong-Tie SL31212HP1 Includes
- (1) Sleeve-All 5/16 in. x 2-1/2 in. Hex-Head Sleeve Anchor
Simpson Strong-Tie SL31212HP1 Features
- Pre-assembled expanding anchor for solid base materials
- Optimal performance in demanding structural applications
- Available in various head options for diverse applications
Simpson Strong-Tie SL31212HP1 Applications
- Securing into concrete and brick
- Hollow and grouted CMU fastening
- General structural applications
Simpson Strong-Tie SL31212HP1 Installation Overview
- Drill a hole in the base material using a carbide drill bit of the same diameter as the anchor.
- Drill to the specified embedment depth and clean the hole using compressed air.
- Place the anchor in the fixture and drive it into the hole until the washer and nut are tight.
- Tighten to the required installation torque.
Simpson Strong-Tie SL31212HP1 Specifications
| Diameter | 5/16" |
| Finish | Zinc Plated |
| Length | 2-1/2" |
| Material | Carbon Steel |
| Drill bit size | 5/16" |
| Head type | Hex head |
| Manufacturer name | Simpson Strong-Tie |
| Quantity | 1 |
NOTE: Oversized holes will make it difficult to set the anchor and will reduce the anchor's load capacity.
