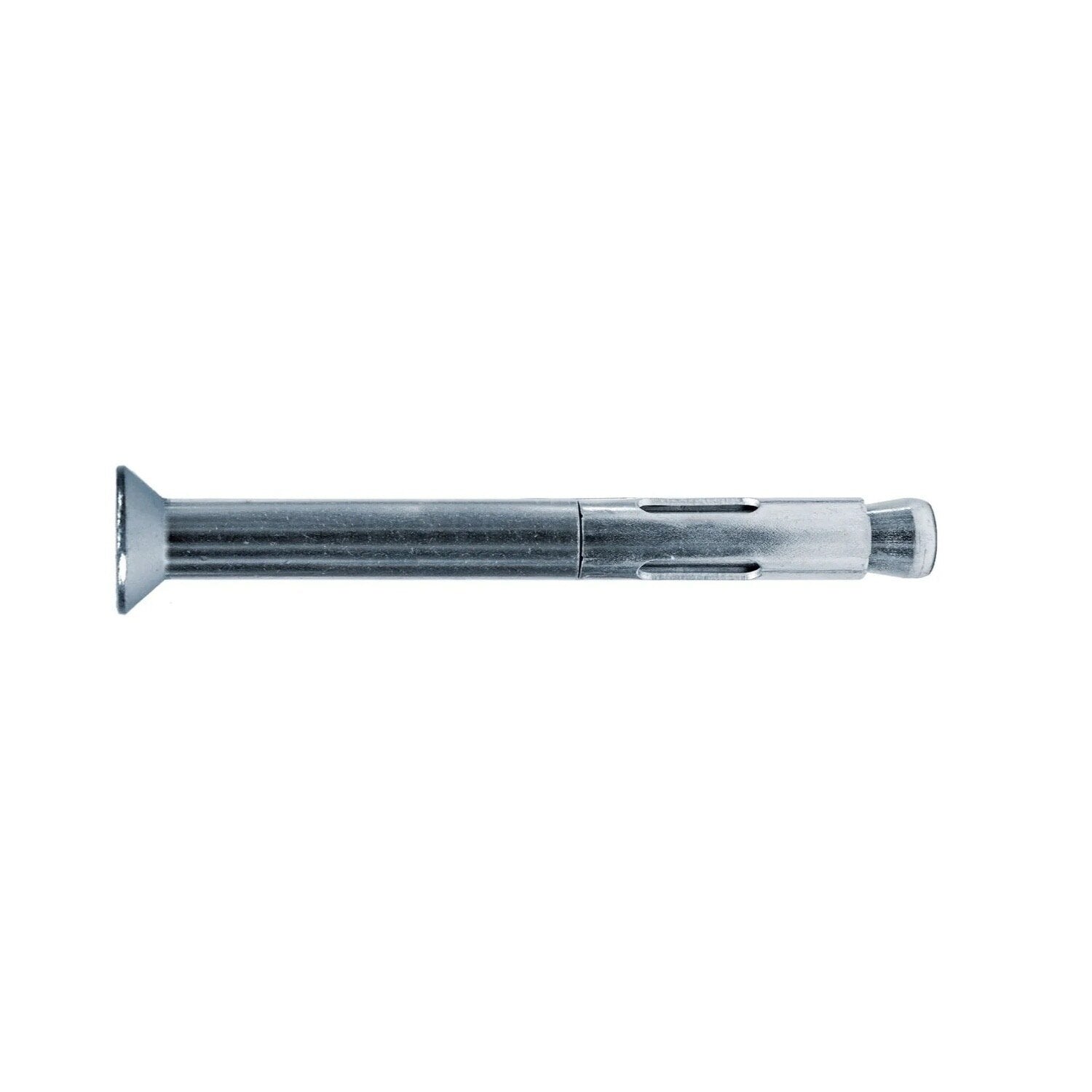

Simpson Strong-Tie SL31312PF Description
Strong-Tie Sleeve-All wedge anchors are pre-assembled expanding anchors for use in solid base materials. They secure into concrete and brick to hollow and grouted CMU.
Simpson Strong-Tie SL31312PF Includes
- (50) Sleeve-All 5/16 in. x 3-1/2 in. Phillips Flat-Head Sleeve Anchor
Simpson Strong-Tie SL31312PF Features
- Pre-assembled expanding anchors for solid base materials
- Optimal performance in demanding structural applications
- Available in various head options including flat head
Simpson Strong-Tie SL31312PF Applications
- Securing into concrete and brick
- Hollow and grouted CMU applications
- General structural anchoring
Simpson Strong-Tie SL31312PF Installation Overview
- Drill a hole in the base material using a carbide drill bit of the same diameter as the anchor.
- Drill to the specified embedment depth and clean the hole using compressed air.
- Place the anchor in the fixture and drive it into the hole until tight.
- Tighten to the required installation torque.
Simpson Strong-Tie SL31312PF Specifications
| Diameter | 5/16" |
| Length | 3-1/2" |
| Drill bit size | 5/16" |
| Head type | Phillips Flat |
| Manufacturer name | Simpson Strong-Tie |
| Quantity | 50 |
NOTE: Oversized holes will make it difficult to set the anchor and will reduce the anchor's load capacity.
