Simpson Anchors | SKU:
SL37178C

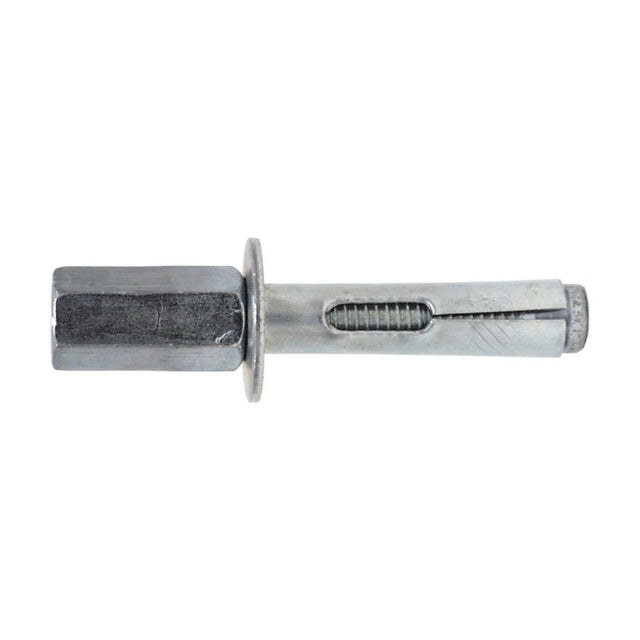

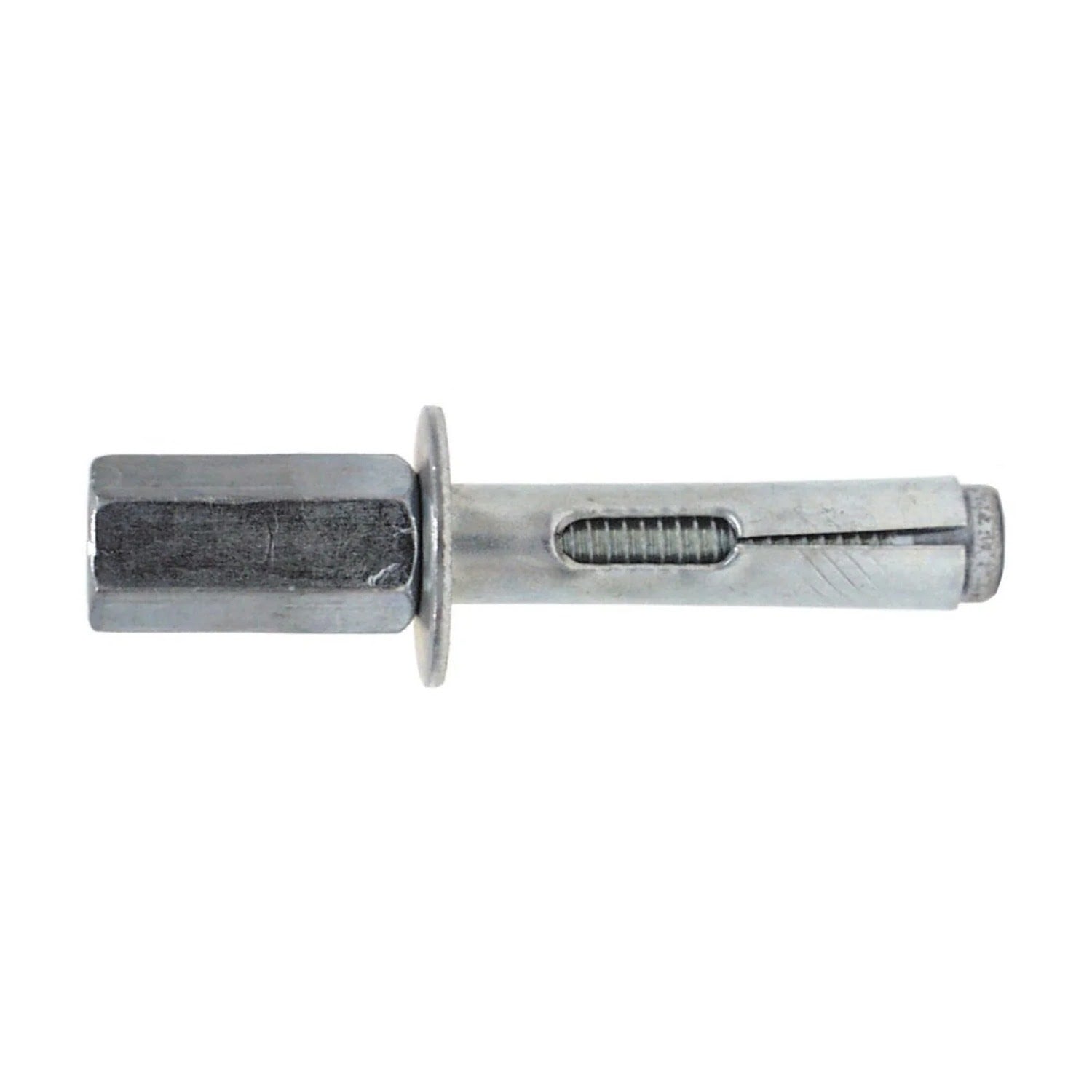

Simpson Strong-Tie SL37178C (3/8" x 1-7/8") Sleeve-All Rod-Coupler Head Sleeve Anchor (50 Pack)
$39.34
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie SL37178C Description
The Sleeve-All Rod-Coupler Head Sleeve Anchor is a zinc-plated, carbon steel anchor designed for secure fastening in solid base materials such as concrete and brick.
Simpson Strong-Tie SL37178C Includes
- (50) Sleeve-All Rod-Coupler Head Sleeve Anchor
Simpson Strong-Tie SL37178C Features
- Zinc-plated for corrosion resistance
- Designed for use in solid base materials
- Pre-assembled for easy installation
- Rod-coupler head for specific applications
Simpson Strong-Tie SL37178C Applications
- Securing fixtures to concrete and brick
- Use in structural applications requiring reliable anchoring
Simpson Strong-Tie SL37178C Installation Overview
- Drill a hole in the base material using a carbide drill bit of the same diameter as the anchor.
- Drill to the specified embedment depth and clean the hole.
- Place the anchor in the fixture and drive it into the hole.
- Tighten the nut to the required torque.
Simpson Strong-Tie SL37178C Specifications
| Material | Carbon Steel |
| Finish | Zinc Plated |
| Diameter | 3/8" |
| Length | 1-7/8" |
| Accepts Rod Size | 3/8" |
| Drill Bit Size | 3/8" |
| Head Type | Rod Coupler |
| Quantity | 50 |
NOTE: Oversized holes will make it difficult to set the anchor and will reduce the anchor's load capacity.
