Simpson Anchors | SKU:
SL50214C

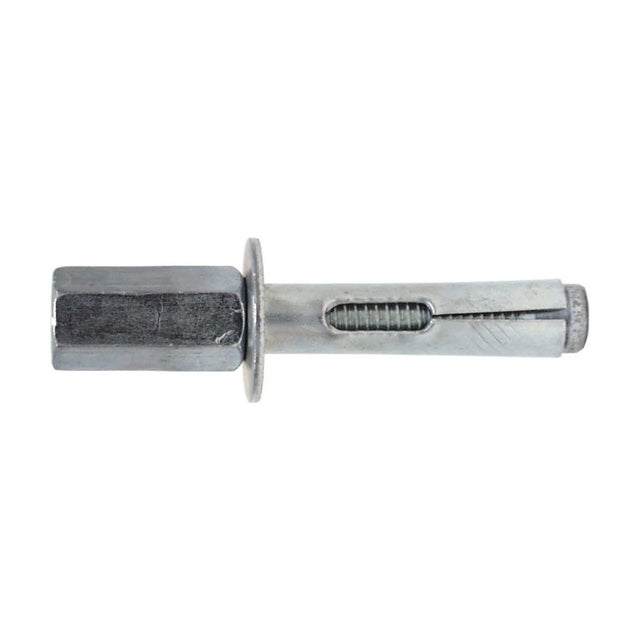

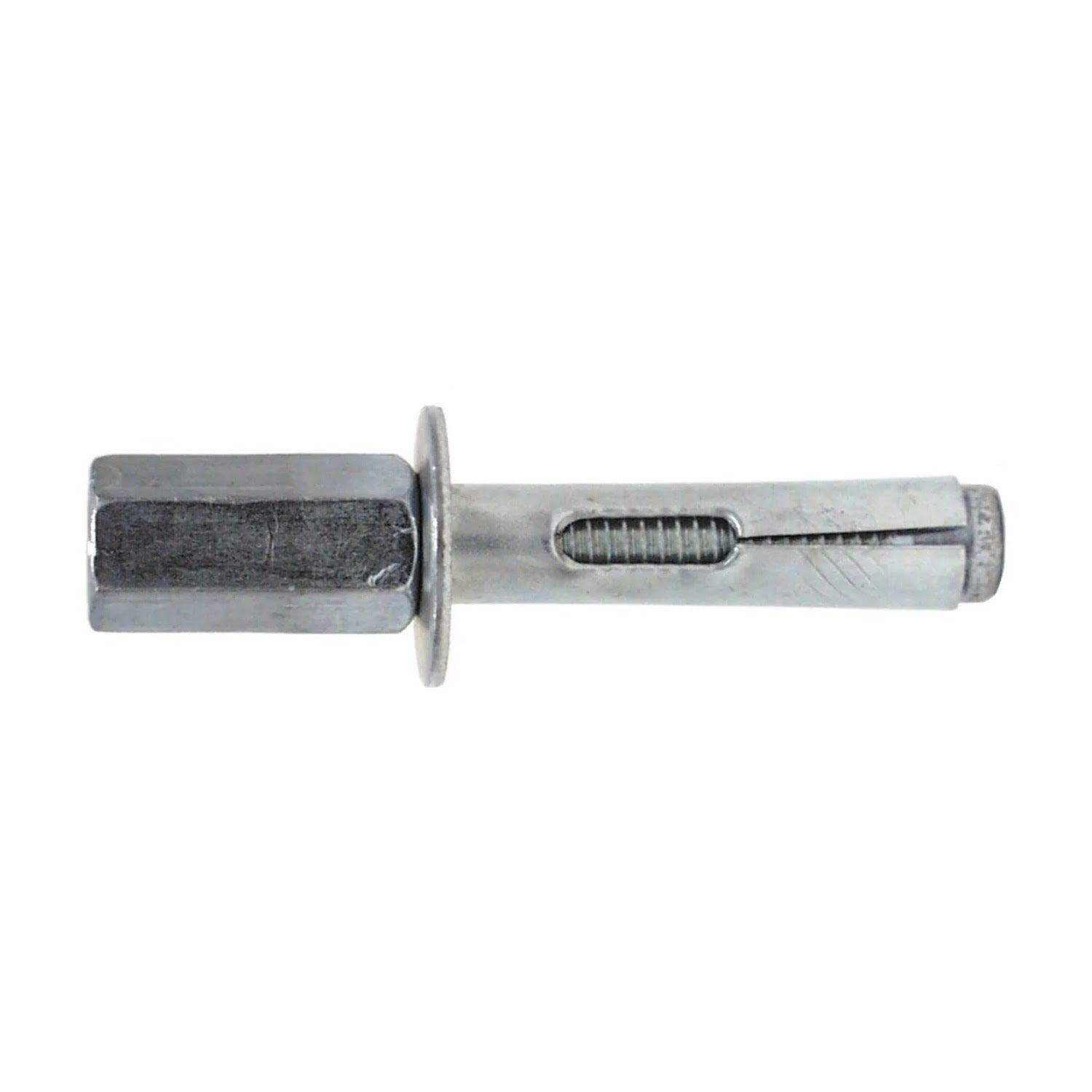

Simpson Strong-Tie SL50214C (1/2" x 2-1/4") Sleeve-All Rod-Coupler Head Sleeve Anchor - Zinc Plated (25 Pack)
$51.15
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie SL50214C Description
The Simpson Strong-Tie Sleeve-All Rod-Coupler Head Sleeve Anchor is a zinc-plated, pre-assembled expanding anchor designed for use in solid base materials. It provides reliable performance in concrete, brick, and other demanding structural applications.
Simpson Strong-Tie SL50214C Includes
- (25) Sleeve-All Rod-Coupler Head Sleeve Anchor
Simpson Strong-Tie SL50214C Features
- Zinc-plated for corrosion resistance
- Pre-assembled expanding anchor for solid base materials
- Compatible with concrete and brick
- Rod-coupler head design for secure fastening
Simpson Strong-Tie SL50214C Applications
- Securing fixtures to concrete and brick
- Structural applications requiring reliable anchoring
- Use in hollow and grouted CMU
Simpson Strong-Tie SL50214C Installation Overview
- Drill a hole in the base material using a carbide drill bit of the same diameter as the anchor.
- Drill to the specified embedment depth and clean the hole using compressed air.
- Place the anchor in the fixture and drive it into the hole until the washer and nut are tight against the fixture.
- Tighten to the required installation torque.
Simpson Strong-Tie SL50214C Specifications
| Material | Carbon steel |
| Finish | Zinc plated |
| Diameter | 1/2" |
| Length | 2-1/4" |
| Accepts rod size | 1/2" |
| Drill bit size | 1/2" |
| Head type | Rod Coupler |
| Quantity | 25 |
NOTE: Oversized holes will make it difficult to set the anchor and will reduce the anchor's load capacity.
