Simpson Anchors | SKU:
SL50300H

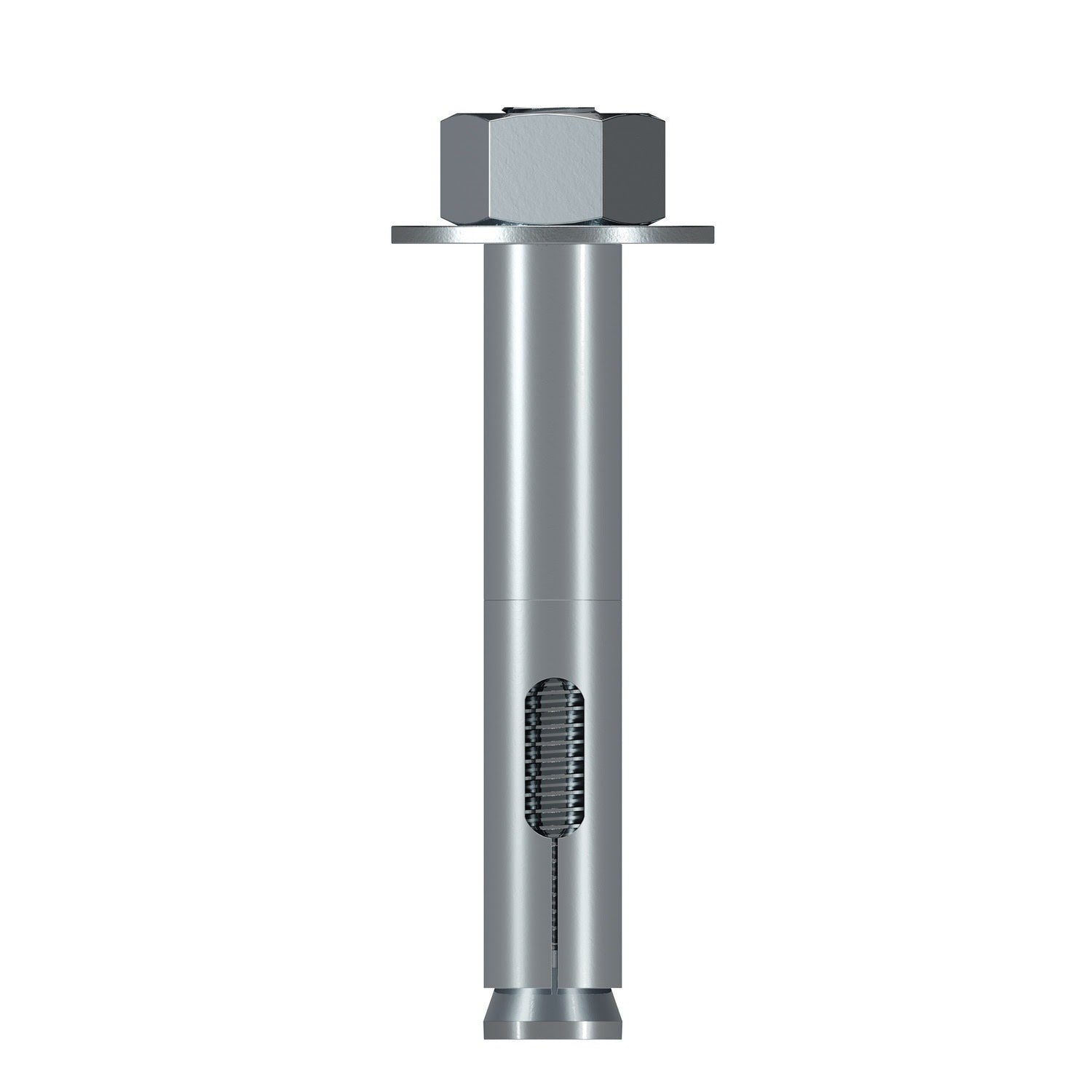

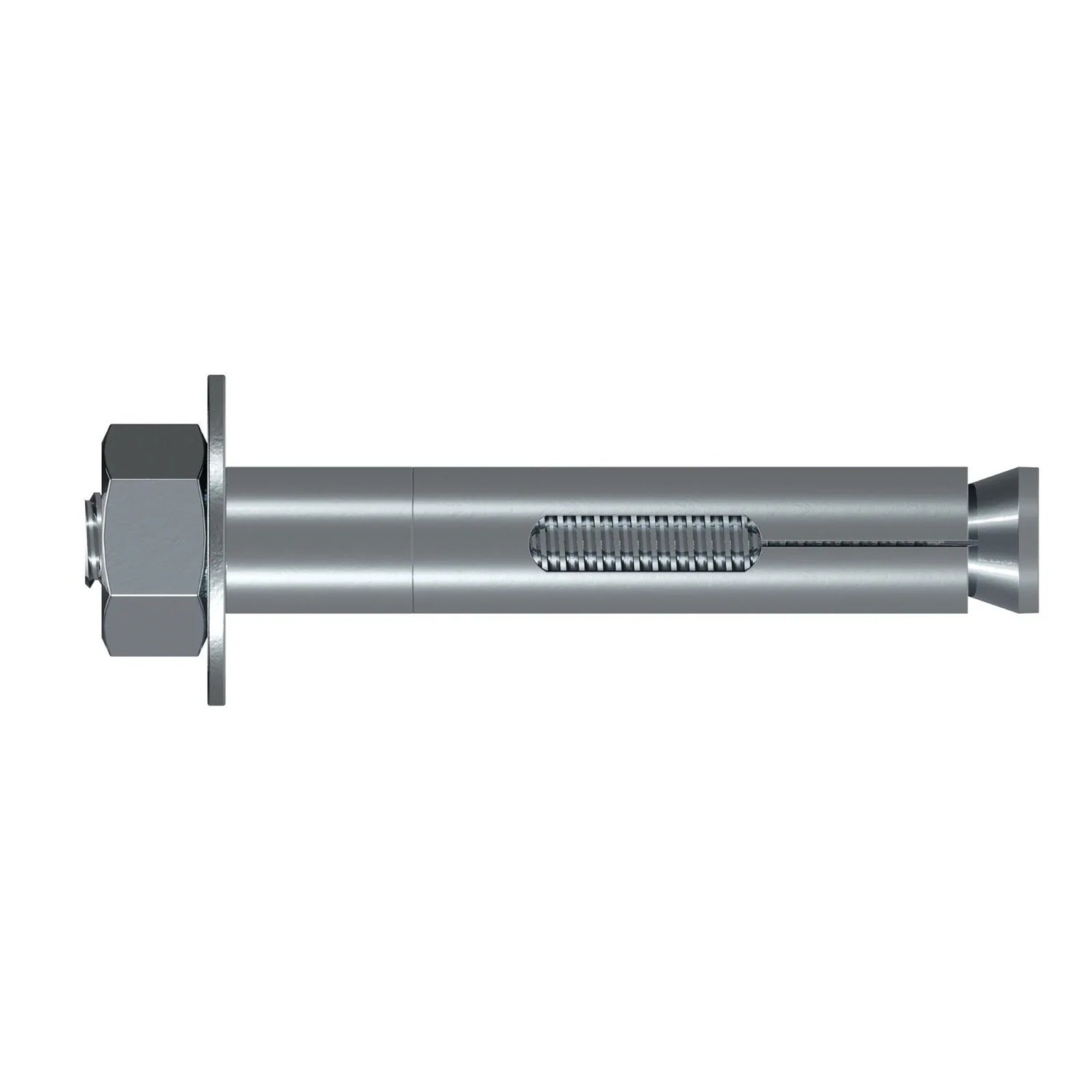

Simpson Strong-Tie SL50300H (1/2" x 3") Sleeve-All Hex-Head Sleeve Anchor - Carbon Steel (25 Pack)
$15.77
$15.96
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie SL50300H Description
The Sleeve-All Hex-Head Sleeve Anchor is a zinc-plated, pre-assembled expanding anchor designed for use in solid base materials such as concrete and brick. It provides reliable performance in structural applications.
Simpson Strong-Tie SL50300H Includes
- (25) Sleeve-All Hex-Head Sleeve Anchor
Simpson Strong-Tie SL50300H Features
- Zinc-plated for corrosion resistance
- Hex-head design for easy installation
- Pre-assembled expanding anchor for solid base materials
- Suitable for concrete and brick applications
Simpson Strong-Tie SL50300H Applications

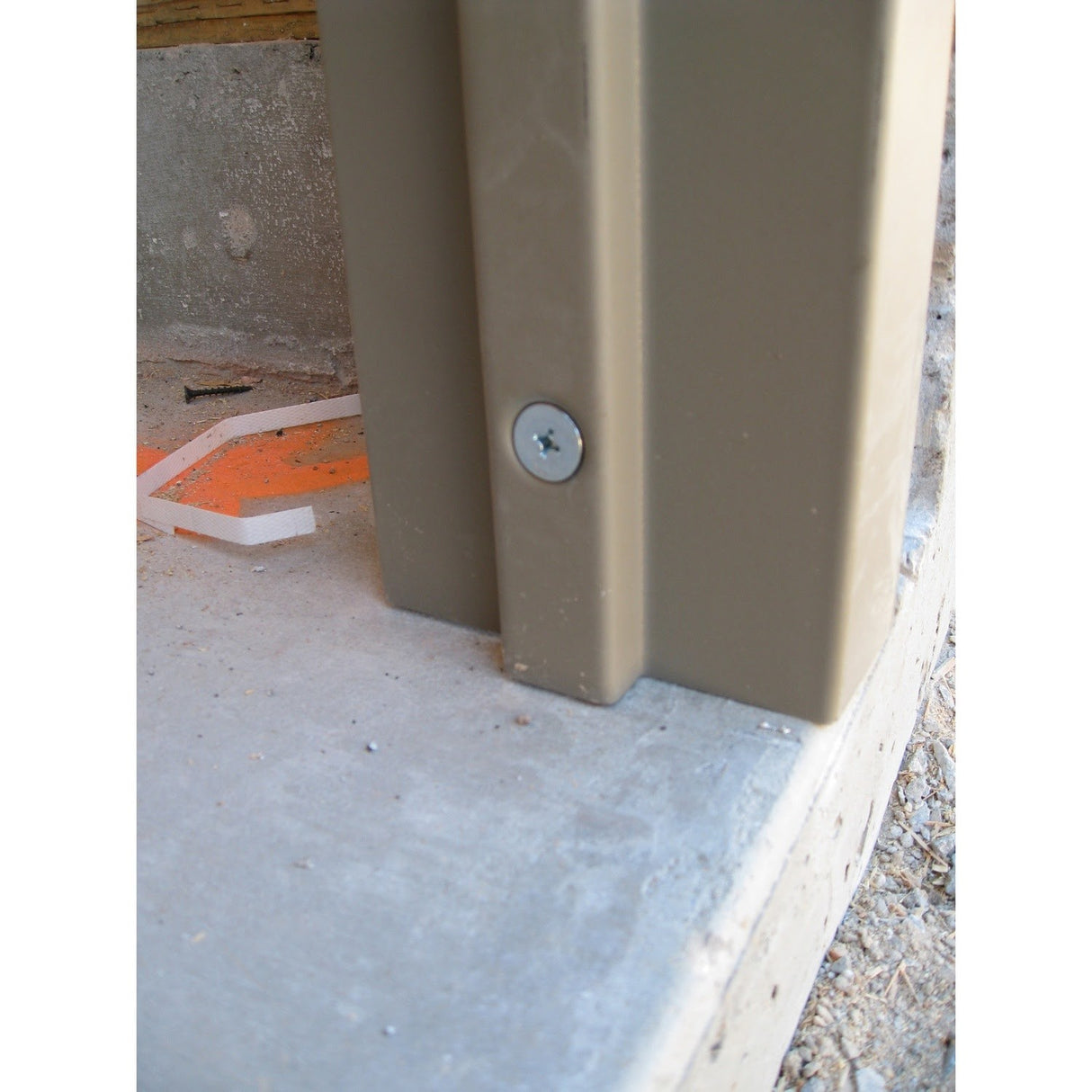

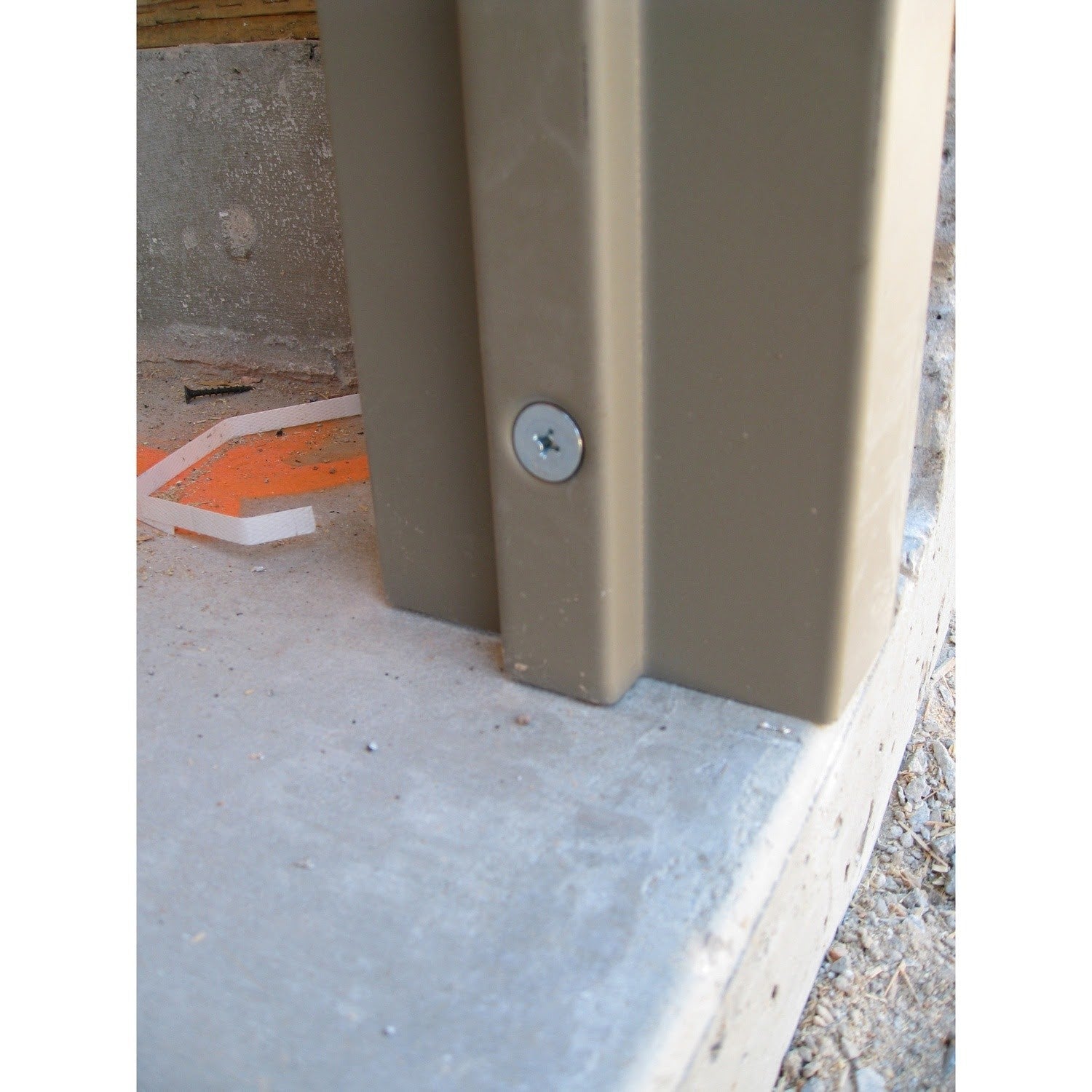

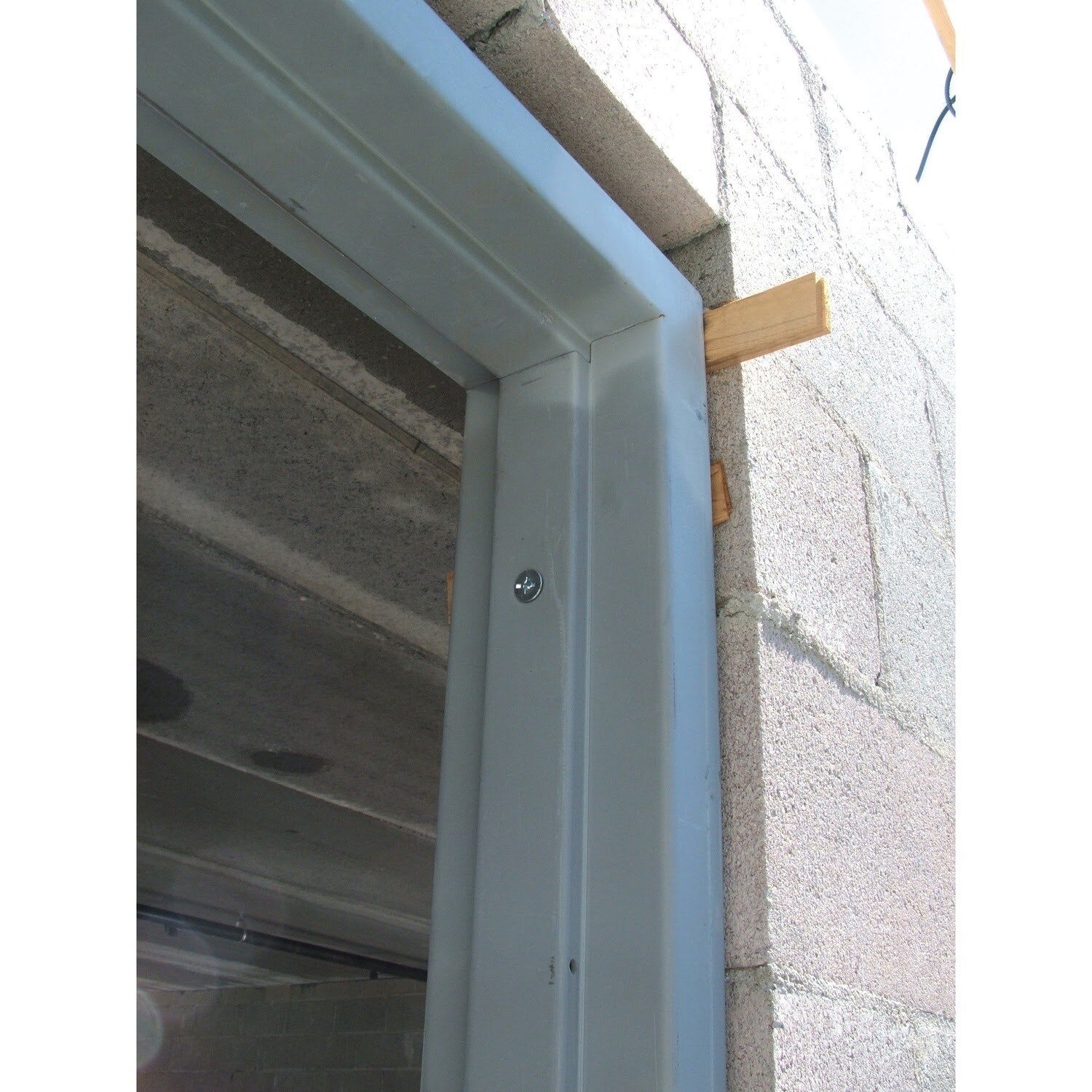

- Securing fixtures to concrete and brick surfaces
- Structural anchoring in construction projects
Simpson Strong-Tie SL50300H Installation Overview
- Drill a hole in the base material using a carbide drill bit of the same diameter as the anchor.
- Drill to the specified embedment depth and clean the hole.
- Place the anchor in the fixture and drive it into the hole.
- Tighten to the required installation torque.
Simpson Strong-Tie SL50300H Specifications
| Material | Carbon steel |
| Finish | Zinc plated |
| Diameter | 1/2" |
| Length | 3" |
| Head Type | Hex Head |
| Drill Bit Size | 1/2" |
| Quantity | 25 |
NOTE: Oversized holes will make it difficult to set the anchor and will reduce the anchor's load capacity.
