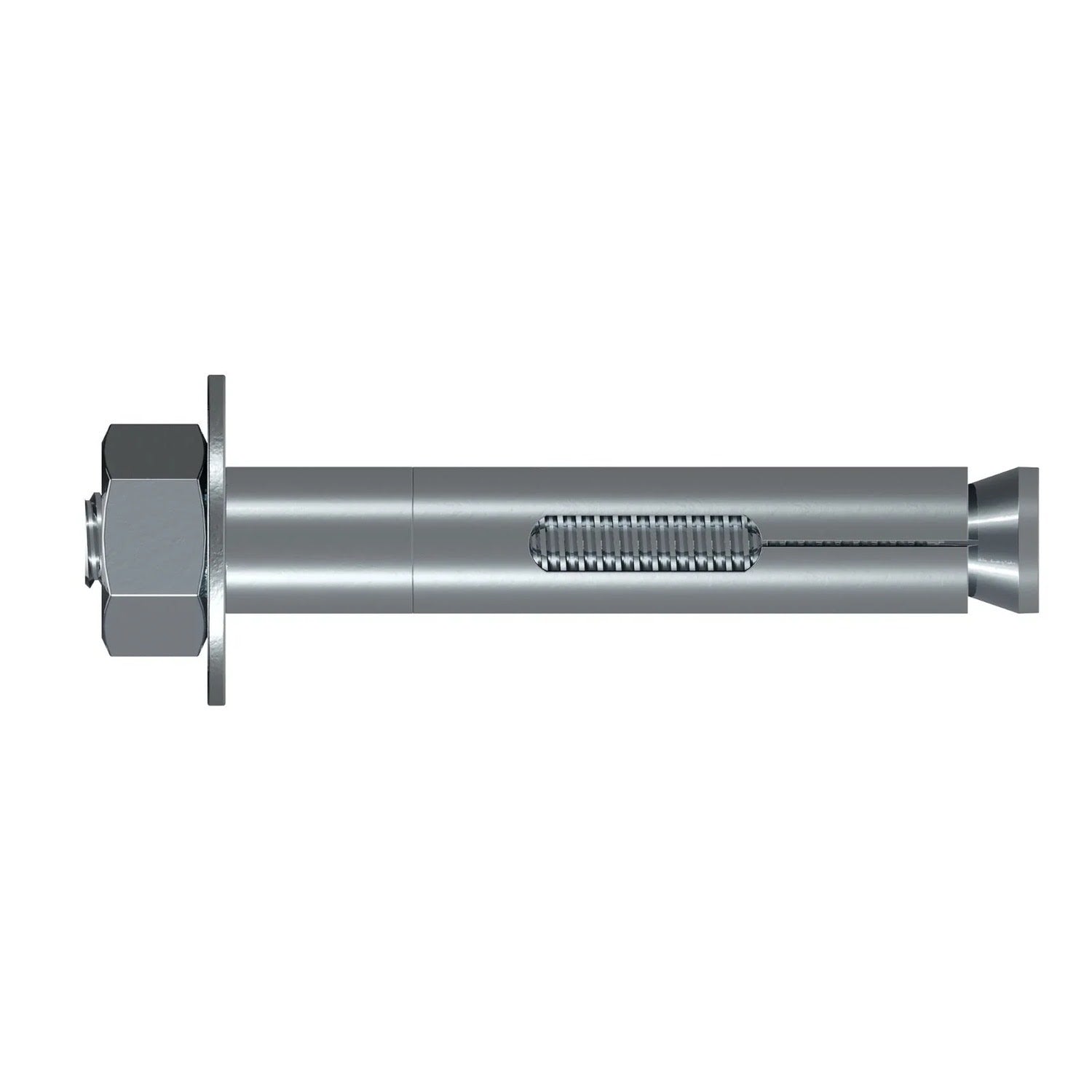

Simpson Strong-Tie SL50300HSS Description
The Simpson Strong-Tie Sleeve-All Hex-Head Stainless-Steel Sleeve Anchor is a pre-assembled expanding anchor designed for use in solid base materials, providing optimal performance in structural applications.
Simpson Strong-Tie SL50300HSS Includes
- (25) Sleeve-All Hex-Head Stainless-Steel Sleeve Anchor
Simpson Strong-Tie SL50300HSS Features
- Pre-assembled expanding anchor for solid base materials
- Hex-head design for secure fastening
- 304 stainless steel for corrosion resistance
- Suitable for concrete, brick, and CMU applications
Simpson Strong-Tie SL50300HSS Applications
- Securing into concrete and brick
- Hollow and grouted CMU anchoring
- General structural applications
Simpson Strong-Tie SL50300HSS Installation Overview
- Drill a hole in the base material using a carbide drill bit of the same diameter as the anchor.
- Drill to the specified embedment depth and clean the hole using compressed air.
- Place the anchor in the fixture and drive it into the hole until the washer and nut are tight.
- Tighten to the required installation torque.
Simpson Strong-Tie SL50300HSS Specifications
| Material | 304 Stainless Steel |
| Diameter | 1/2" |
| Length | 3" |
| Drill Bit Size | 1/2" |
| Head Type | Hex Head |
| Quantity | 25 |
NOTE: Oversized holes will make it difficult to set the anchor and will reduce the anchor's load capacity.
