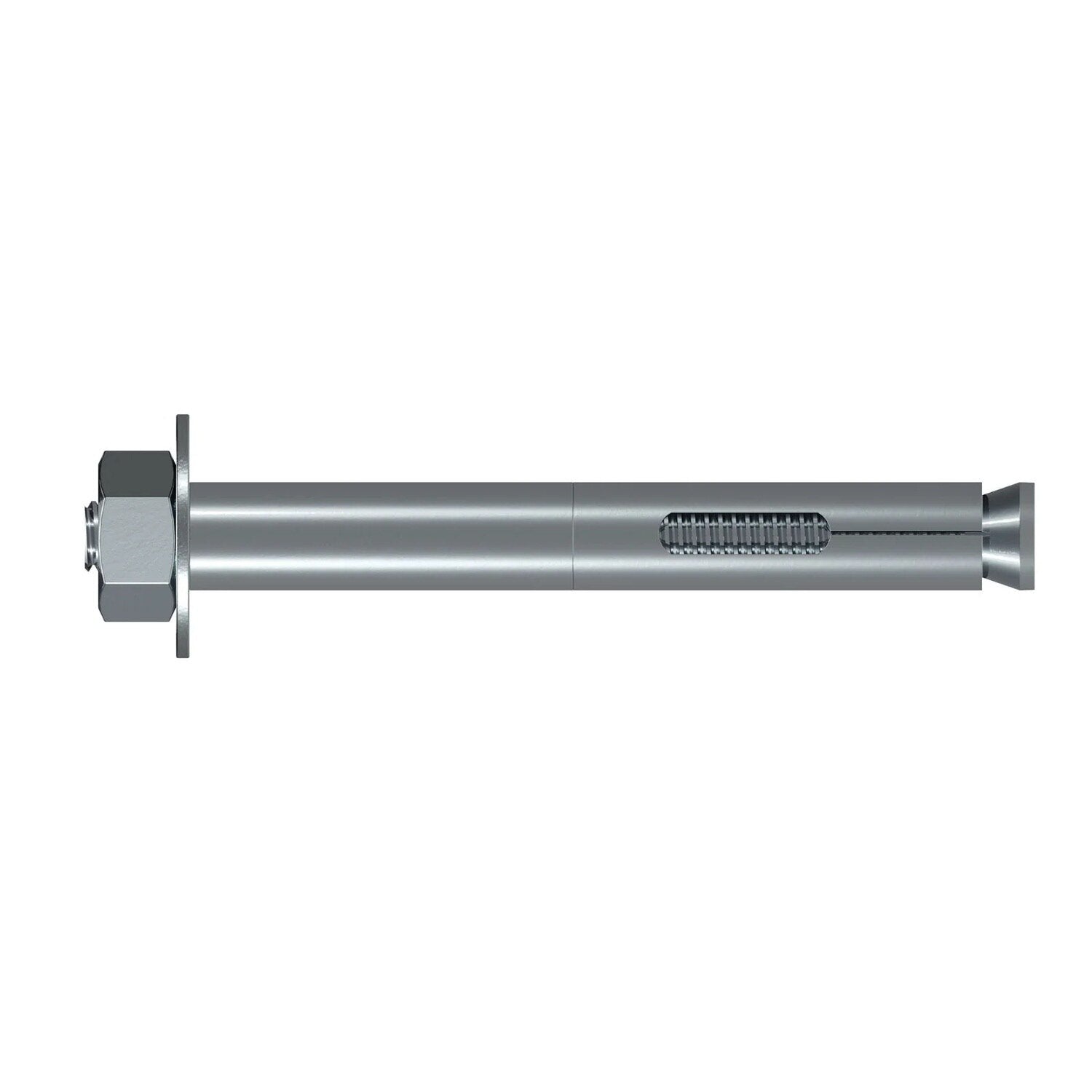

Simpson Strong-Tie SL62414H (5/8" x 4-1/4") Sleeve-All Hex-Head Sleeve Anchor - Carbon Steel (10 Pack)
$15.14
$117.53
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie SL62414H Description
The Sleeve-All Hex-Head Sleeve Anchor Zinc-Plated is a reliable mechanical anchor designed for solid base materials, providing secure fastening in concrete and brick.
Simpson Strong-Tie SL62414H Includes
- (10) Sleeve-All Hex-Head Sleeve Anchor
Simpson Strong-Tie SL62414H Features
- Pre-assembled expanding anchor for solid base materials
- Optimal performance in structural applications
- Available in various head options for versatility
Simpson Strong-Tie SL62414H Applications
- Securing into concrete and brick
- Hollow and grouted CMU applications
- Demanding structural applications
Simpson Strong-Tie SL62414H Installation Overview
- Drill a hole in the base material using a carbide drill bit of the same diameter as the anchor.
- Drill to the specified embedment depth and clean the hole.
- Place the anchor in the fixture and drive it into the hole.
- Tighten to the required installation torque.
Simpson Strong-Tie SL62414H Specifications
| Material | Carbon steel |
| Finish | Zinc plated |
| Diameter | 5/8" |
| Length | 4-1/4" |
| Head type | Hex Head |
| Drill bit size | 5/8" |
| Quantity | 10 |
NOTE: Oversized holes will make it difficult to set the anchor and will reduce the anchor's load capacity.
