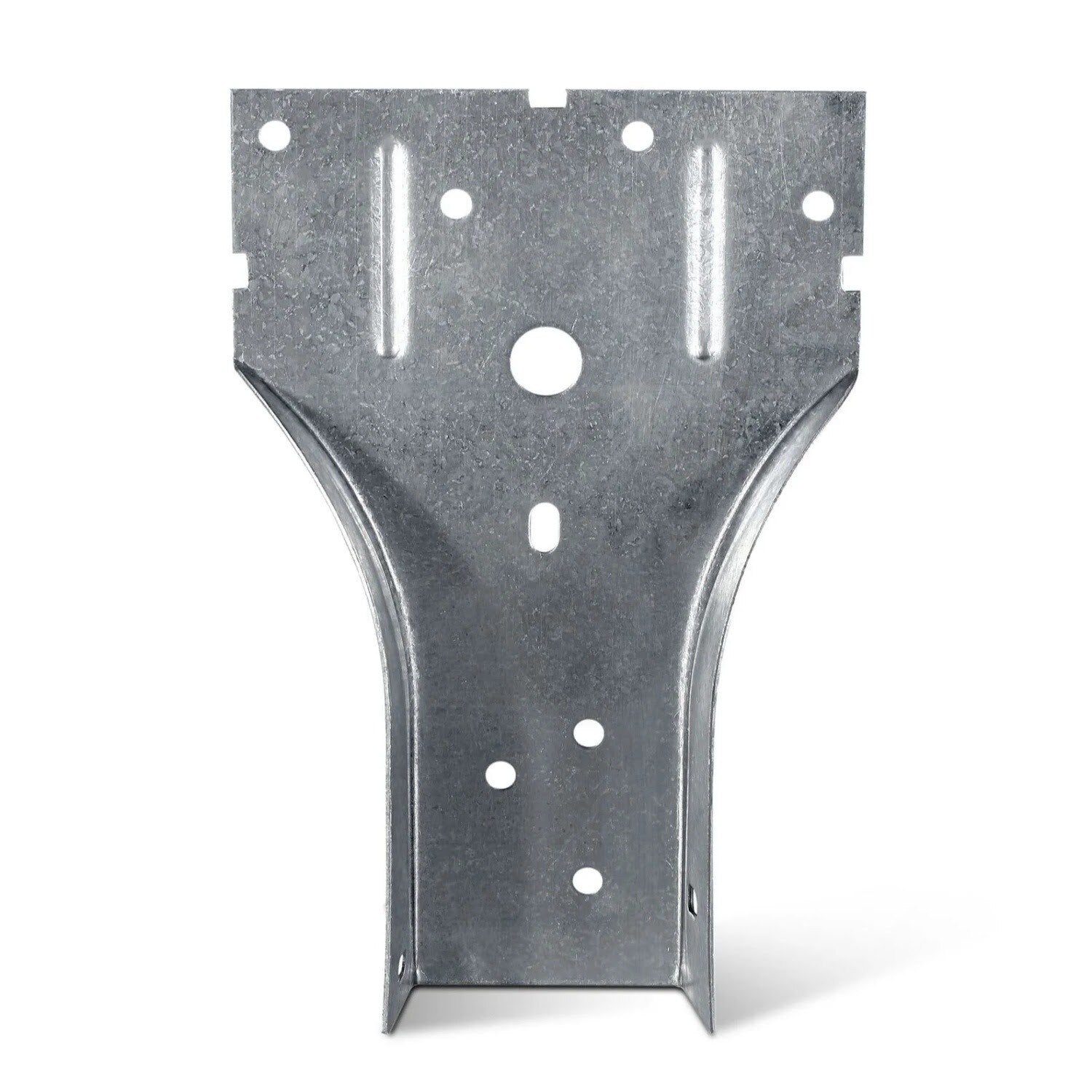

Simpson SP1 Description
The SP1 Stud Plate Tie provides a secure plate-to-stud connection, offering uplift resistance and enhanced structural support.
Simpson SP1 Includes
- (1) Stud Plate Tie Galvanized
Simpson SP1 Features
- Galvanized finish for corrosion resistance
- Designed for plate-to-stud connections
- Provides uplift resistance
- Suitable for windy environments
- Low-profile finish
Simpson SP1 Applications

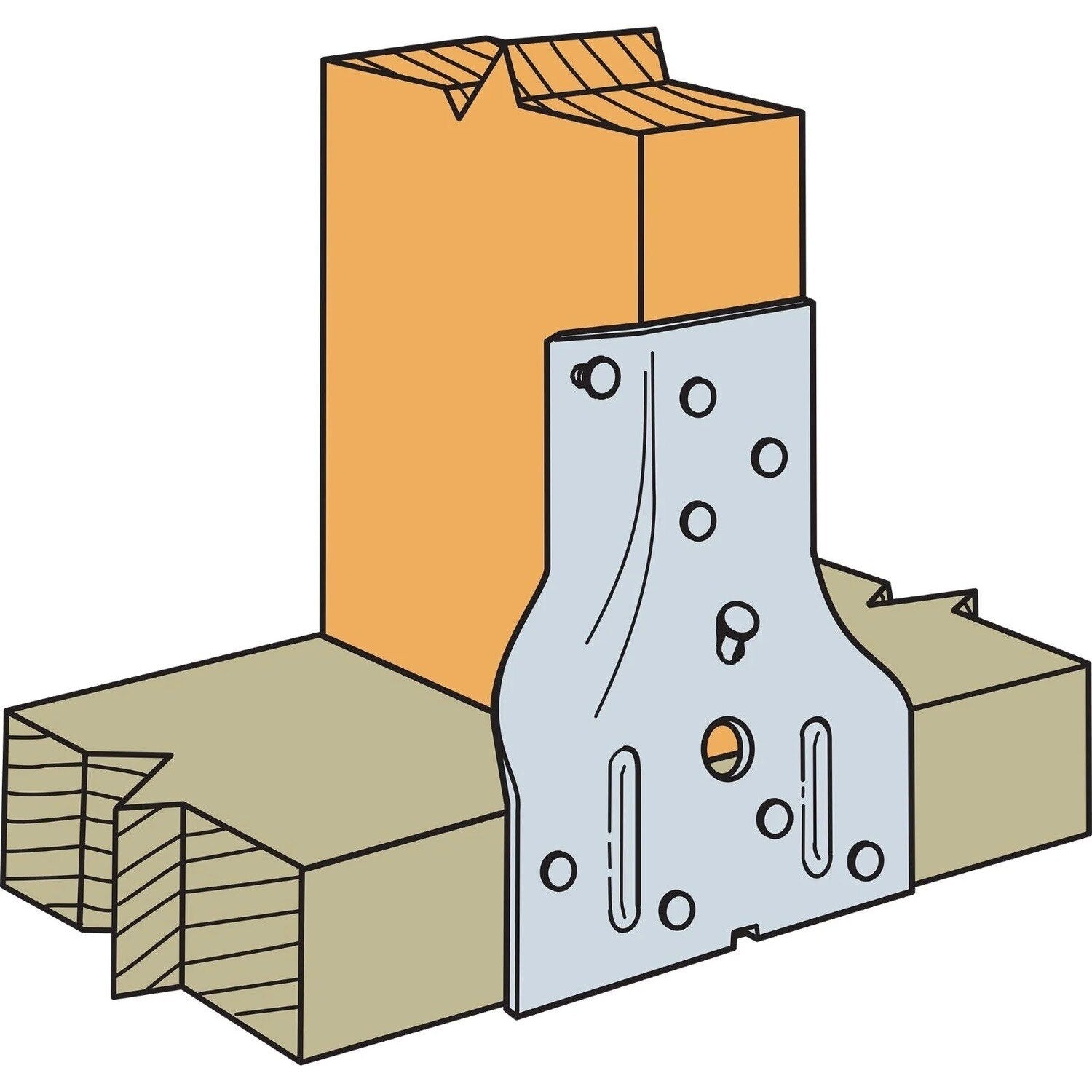

- Connecting studs to plates for structural support
- Enhancing resistance against high winds in hurricane-prone areas
- Securing double top or bottom plates to studs
Simpson SP1 Installation Overview
- Use all specified fasteners as per guidelines
- Drive one 0.148" x 3" stud nail at a 45-degree angle through the stud into the plate
Simpson SP1 Specifications
| Length | 5-1/16" |
| Material | Carbon Steel |
| Fasteners required | Stud - (6) 0.148" x 3" Nails, Plate - (4) 0.148" x 3" Nails |
| For Treated Lumber | Yes |
| Width | 3-1/2" |
NOTE: Ensure all specified fasteners are used and installed correctly to achieve published load values
Toolup Part # :
824837
