Simpson SP1Z Description

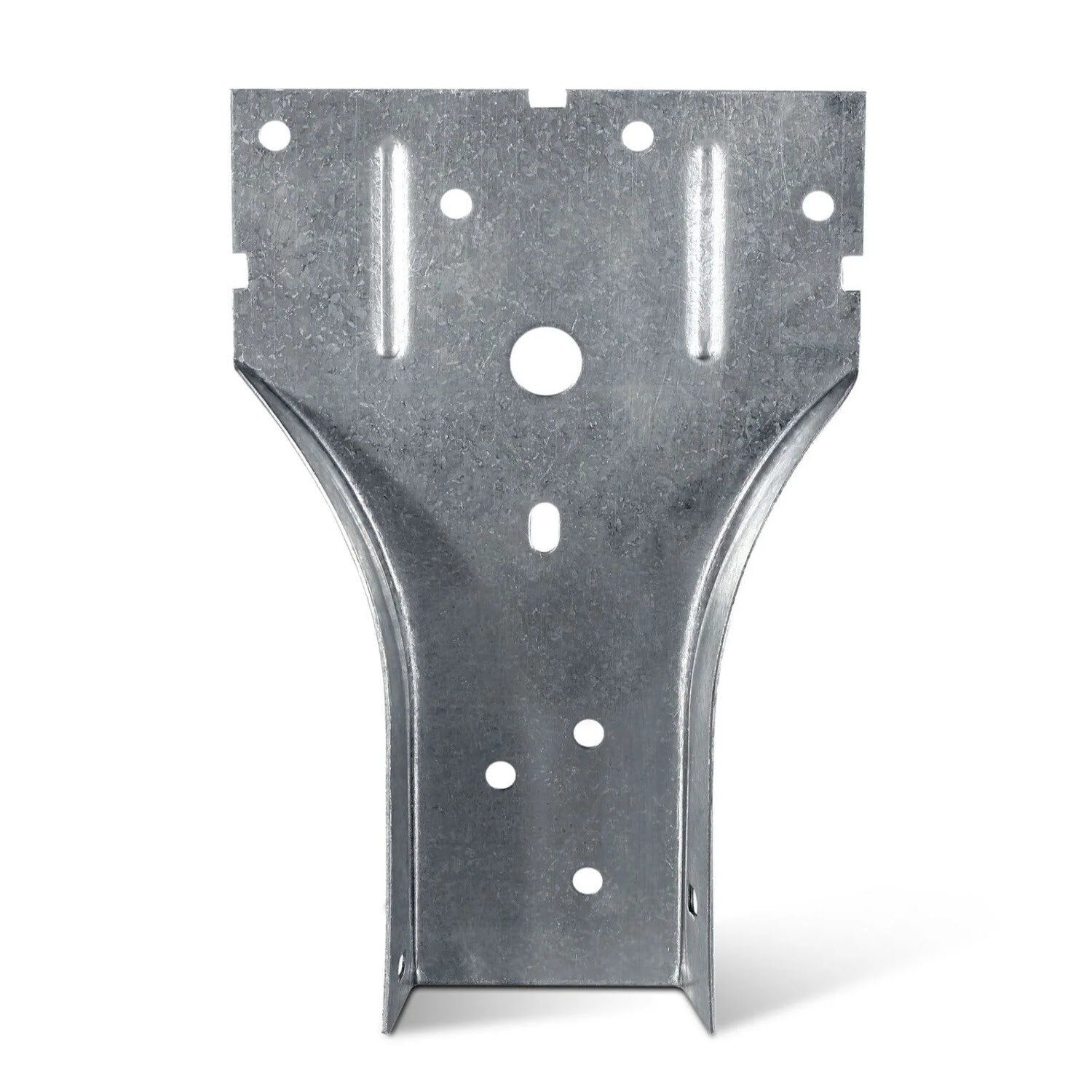

The SP1Z Stud Plate Tie provides a secure plate-to-stud connection with uplift resistance, ideal for reinforcing structures in windy environments.
Simpson SP1Z Includes
- (1) Stud Plate Tie ZMAX Finish
Simpson SP1Z Features
- ZMAX Finish for corrosion resistance
- Designed for plate-to-stud connections
- Provides uplift resistance
- Suitable for windy environments
- Low profile finish
Simpson SP1Z Applications
- Reinforcing stud plates in residential and commercial construction
- Providing additional support in hurricane-prone areas

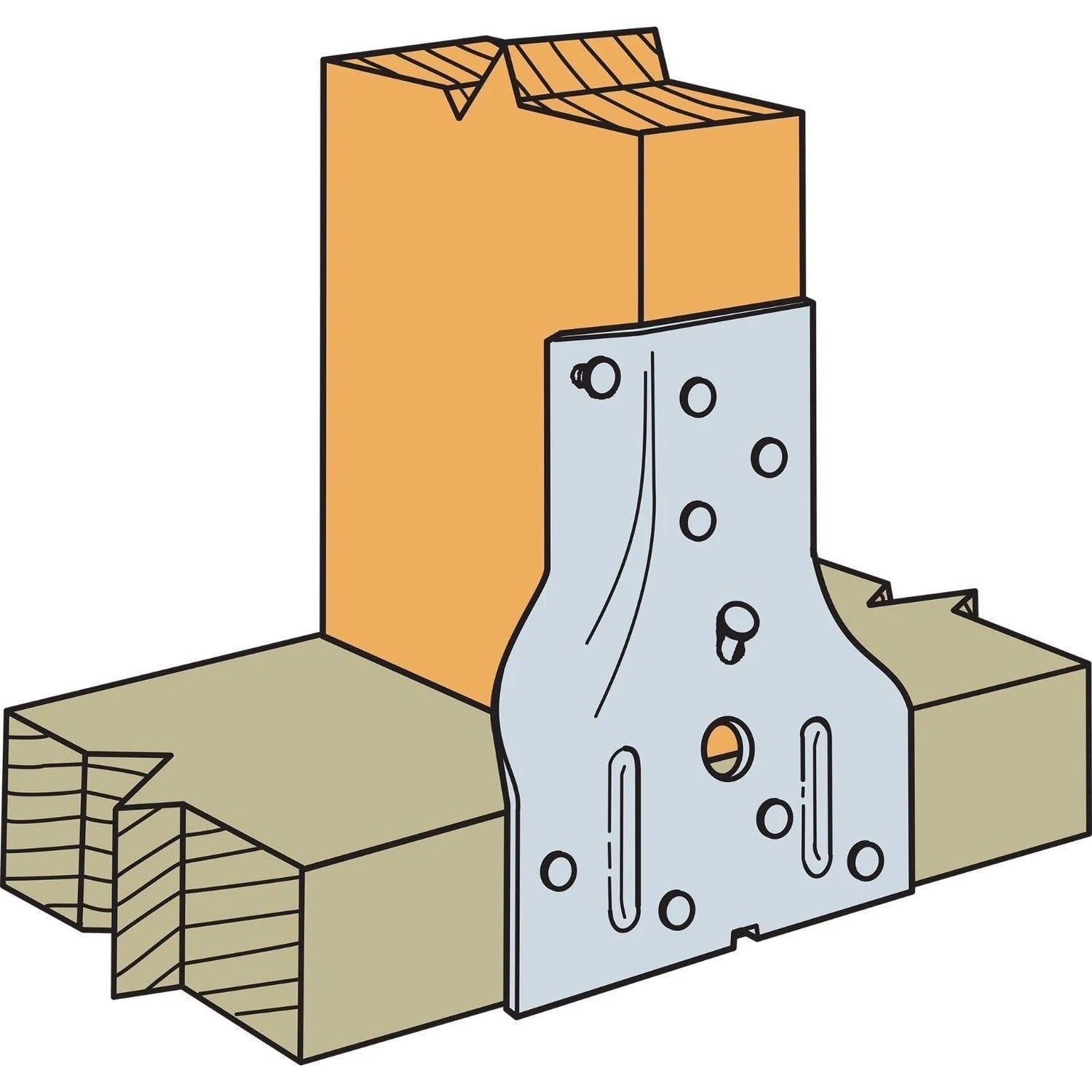

- Securing studs to double top or bottom plates
Simpson SP1Z Installation Overview
- Use all specified fasteners as per guidelines
- Drive one of the 0.148" x 3" stud nails at a 45-degree angle through the stud into the plate
Simpson SP1Z Specifications
| Length | 5-1/16" |
| Material | Carbon Steel |
| Fasteners required | Stud - (6) 0.148" x 3" Nails, Plate - (4) 0.148" x 3" Nails |
| For Treated Lumber | Yes |
| Width | 3-1/2" |
NOTE: Ensure all specified fasteners are used and installed correctly to achieve published load values
