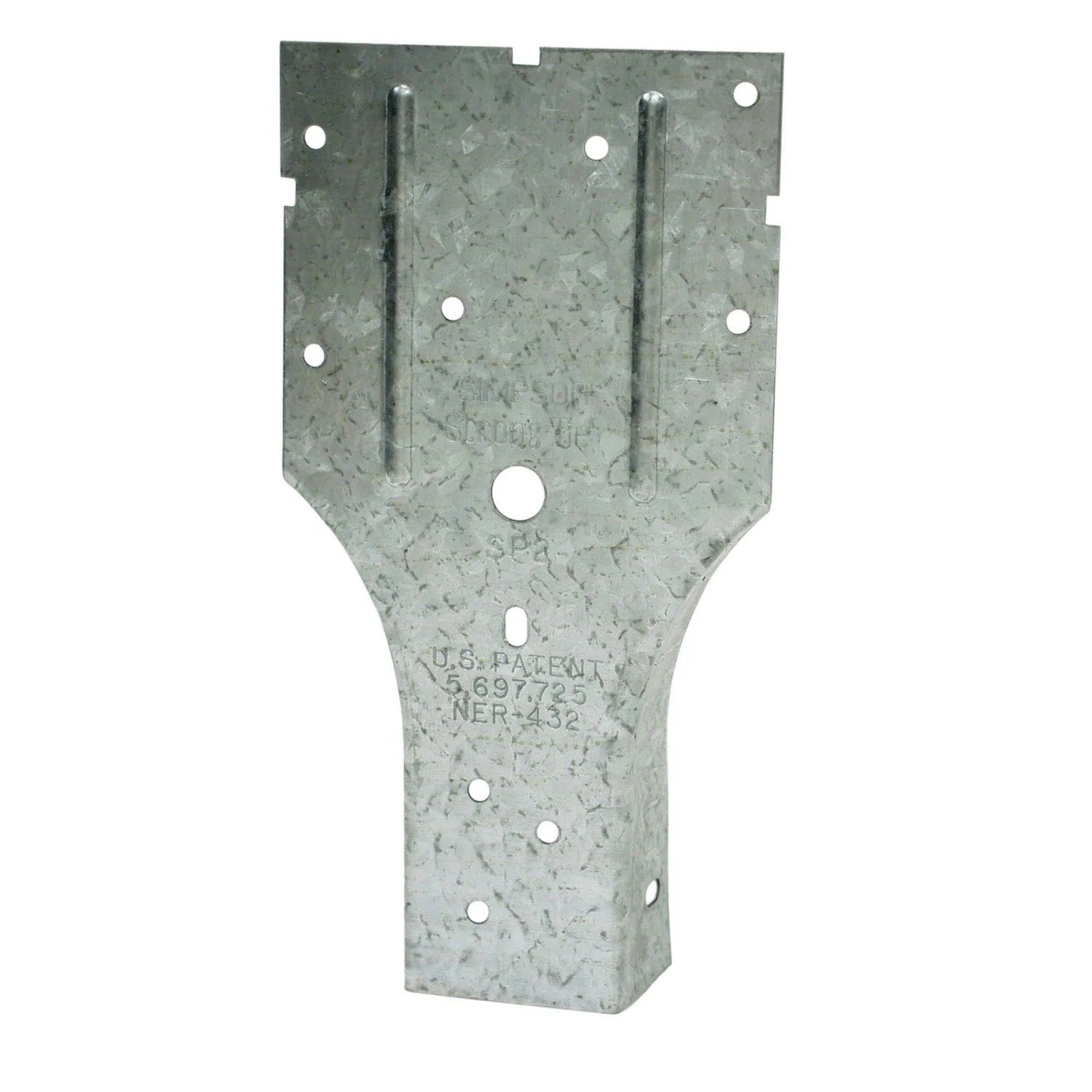

Simpson Strong-Tie SP2Z Description
The SP2Z Stud Plate Tie by Simpson Strong-Tie provides a robust connection between studs and plates, ensuring enhanced structural integrity in high-wind and seismic conditions.
Simpson Strong-Tie SP2Z Includes
- (1) SP2Z Stud Plate Tie
Simpson Strong-Tie SP2Z Features
- Embossments strengthen the stud-to-plate connection
- Designed to resist wind and seismic forces
- Can be used before or after installation, including in retrofit applications
Simpson Strong-Tie SP2Z Applications
- High-wind construction: Provides uplift resistance in hurricane and tornado-prone areas
- Seismic reinforcement: Enhances structural stability during earthquakes

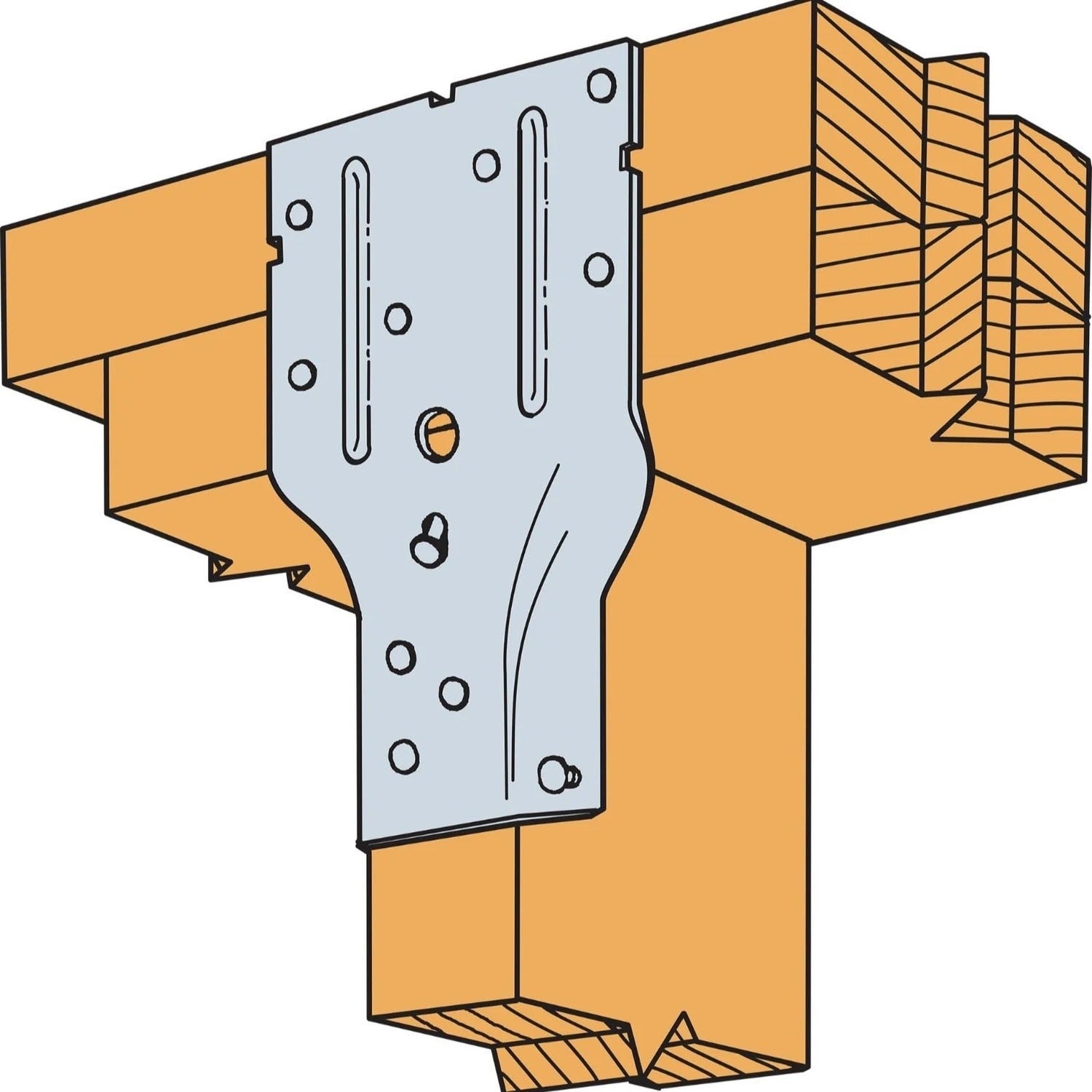

Simpson Strong-Tie SP2Z Installation Overview
- Use all specified fasteners as per guidelines
- Drive one 0.148" x 3" stud nail at a 45° angle through the stud into the plate
Simpson Strong-Tie SP2Z Specifications
| Material | Carbon Steel |
| Finish | ZMAX Galvanized |
| Gauge | 20 |
| Width | 3-1/2 in. |
| Length | 6-5/8 in. |
| Weight | 0.2 lb |
| Fasteners Required | Stud - (6) 0.148" x 3" Nails, Plate - (6) 0.148" x 3" Nails |
Toolup Part # :
823408
