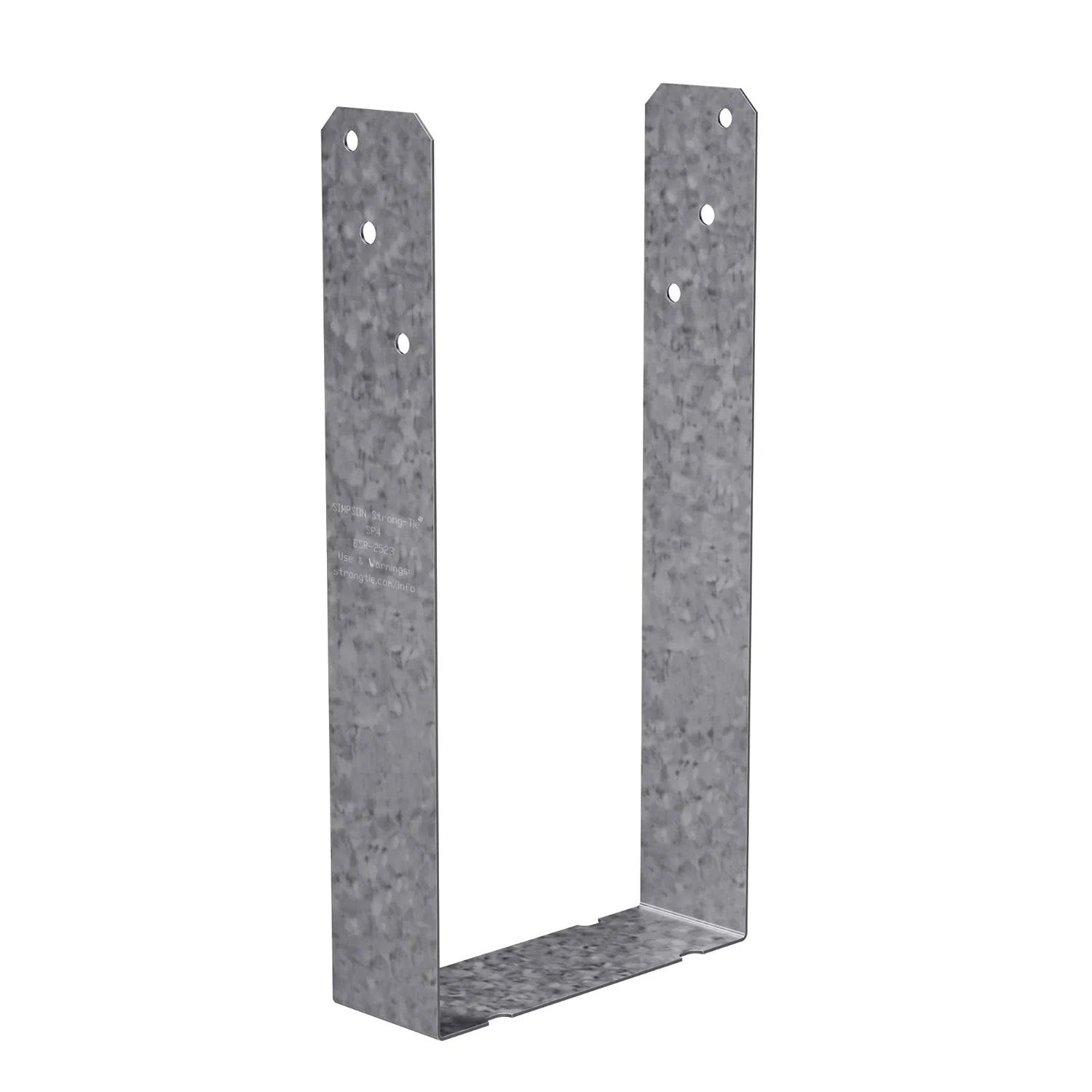

Simpson Strong-Tie SP4Z Description

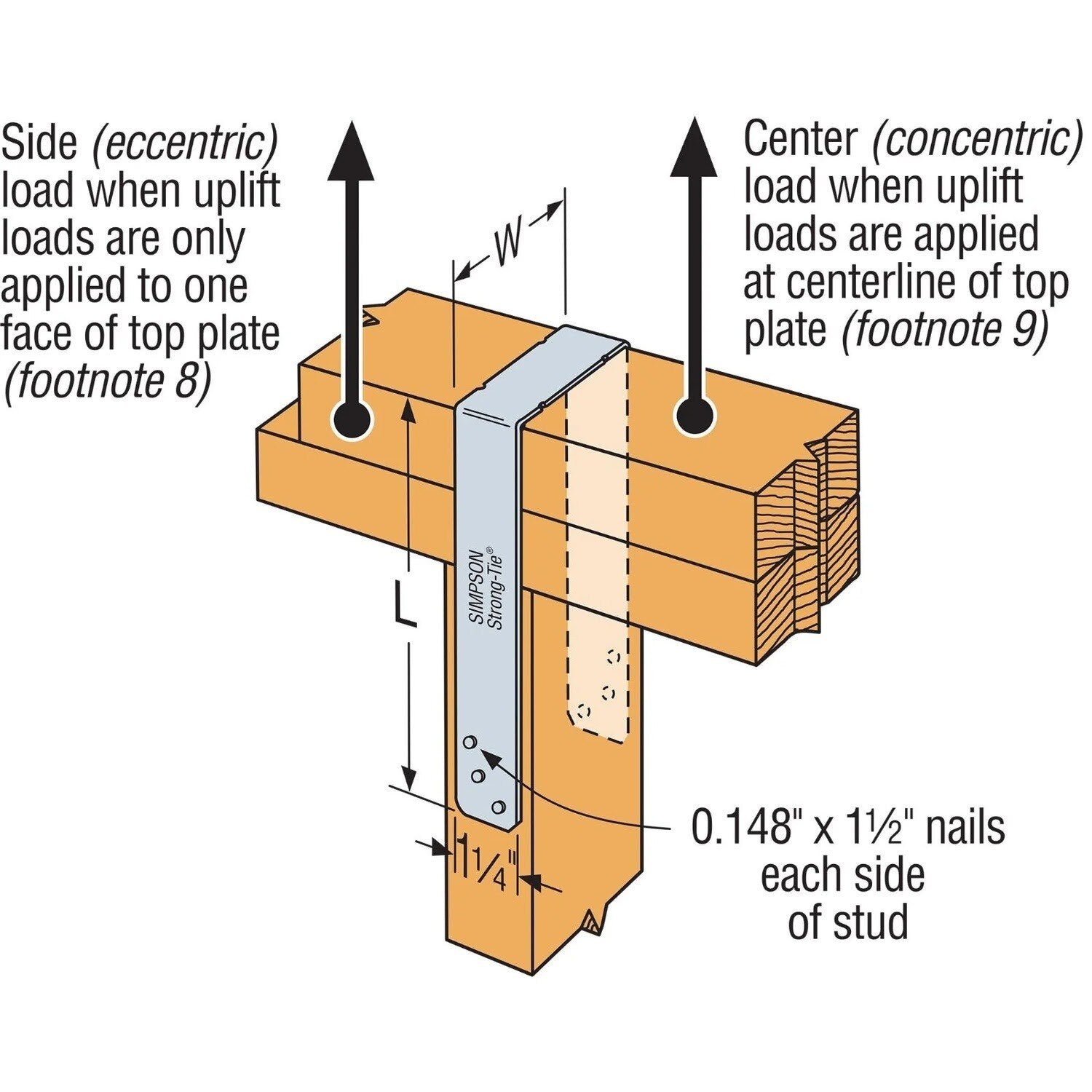

The SP stud plate tie provides uplift resistance and is ideal for connecting studs plates at a ninety-degree angle, offering additional support in high-wind environments.
Simpson Strong-Tie SP4Z Includes
- (1) SP4Z Stud Plate Tie
Simpson Strong-Tie SP4Z Features
- Load rated
- Designed to resist wind and seismic forces
- Does not require top or bottom track attachment
Simpson Strong-Tie SP4Z Applications
- High-Wind Construction: Provides uplift resistance for stud plates.
- Structural Reinforcement: Secures wall to top or bottom track studs.

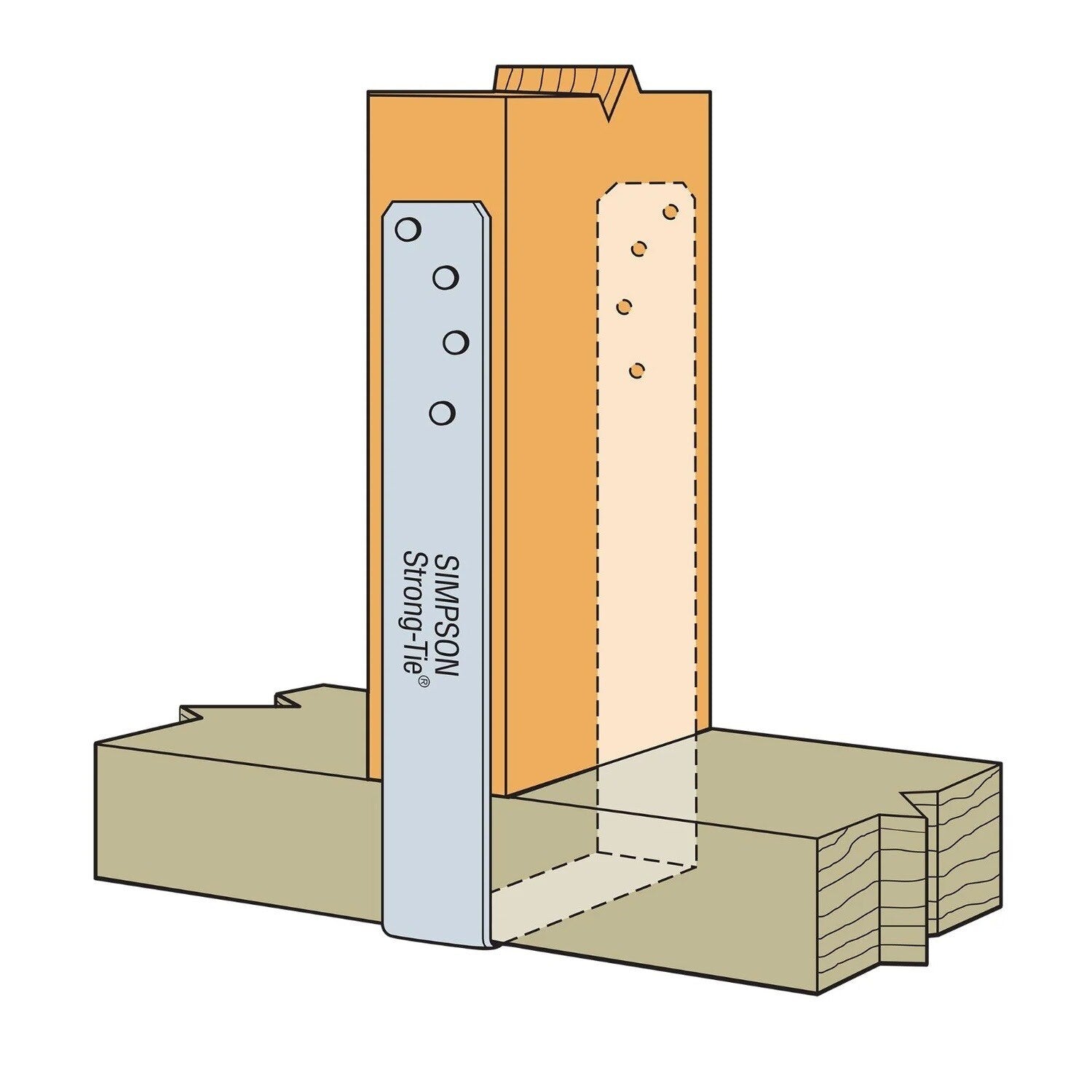

Simpson Strong-Tie SP4Z Installation Overview
- Use all specified fasteners as per General Notes.
Simpson Strong-Tie SP4Z Specifications
| Material | Carbon Steel |
| Finish | ZMAX Galvanized |
| Width | 3-9/16" |
| Length | 7-1/4" |
| Fasteners required | (6) 0.148" x 1-1/2" Nails |
| For Treated Lumber | Yes |
NOTE: Ensure all specified fasteners are used to achieve published load values.
