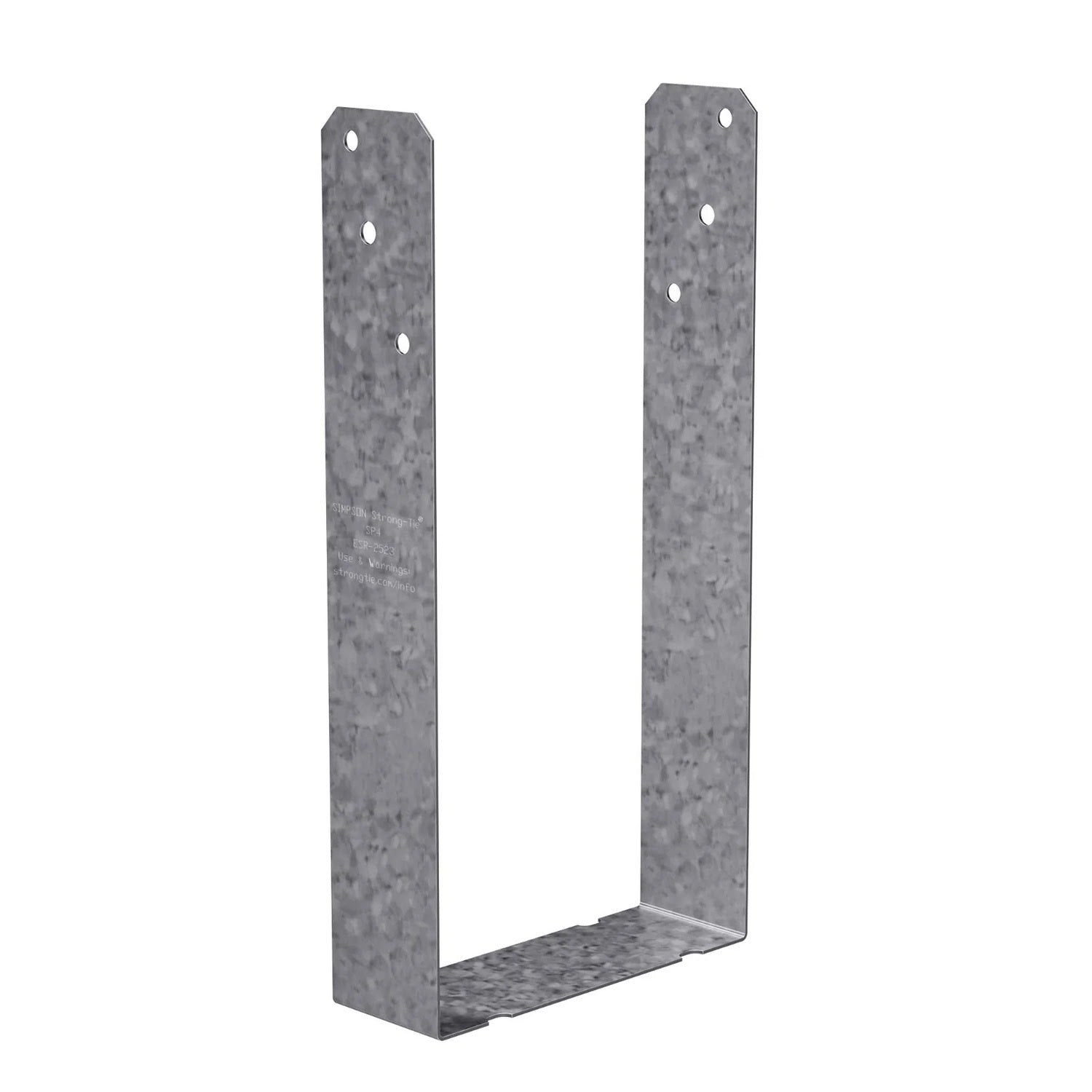

Simpson Strong-Tie SP8 Description
The SP8 Stud Plate Tie by Simpson Strong-Tie provides a secure plate-to-stud connection, offering uplift resistance and additional support in windy environments.
Simpson Strong-Tie SP8 Includes
- (1) SP8 Stud Plate Tie
Simpson Strong-Tie SP8 Features
- Provides uplift resistance for stud-to-plate connections
- Ideal for windy environments to prevent structural separation
- Made from durable galvanized carbon steel
- Compatible with treated lumber
Simpson Strong-Tie SP8 Applications

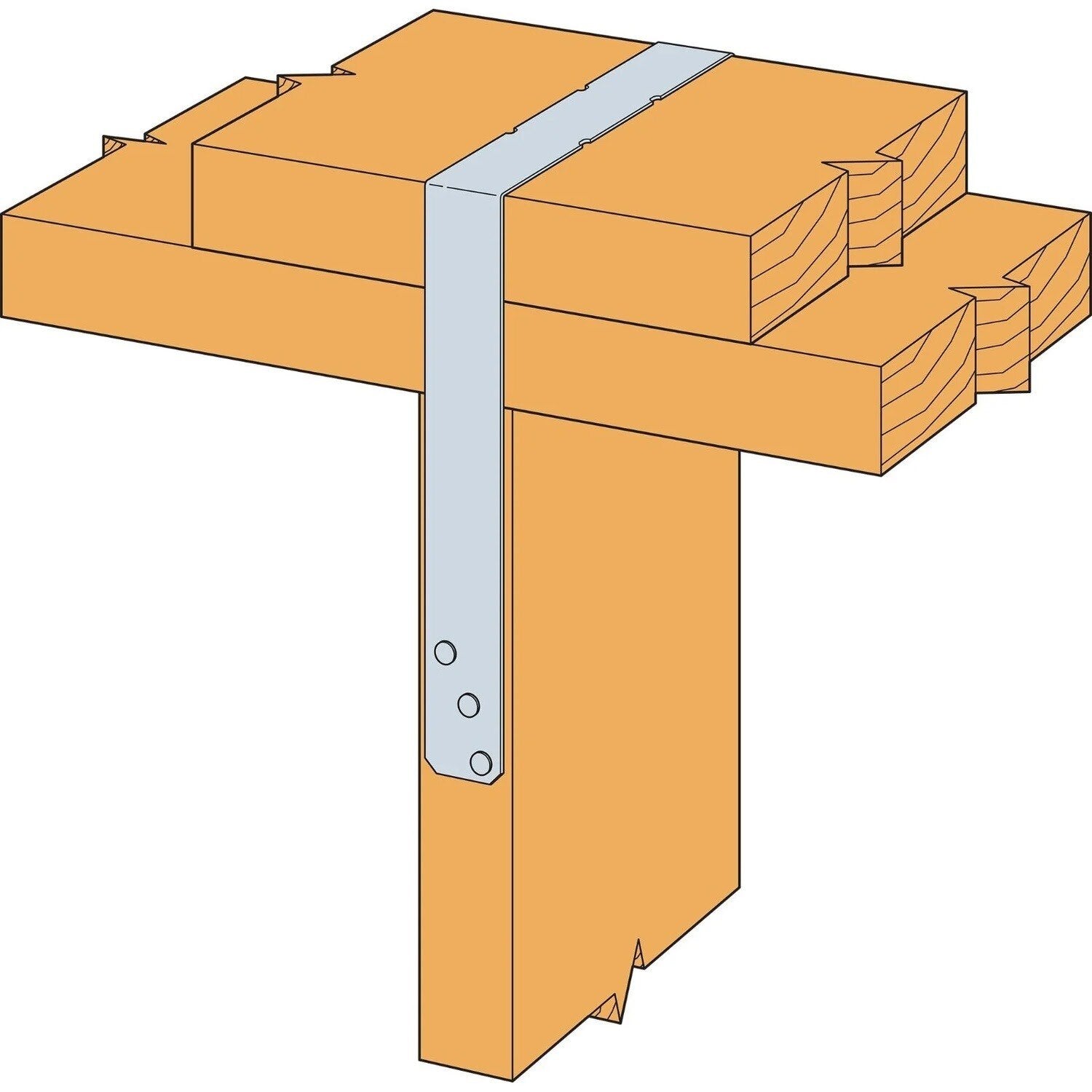

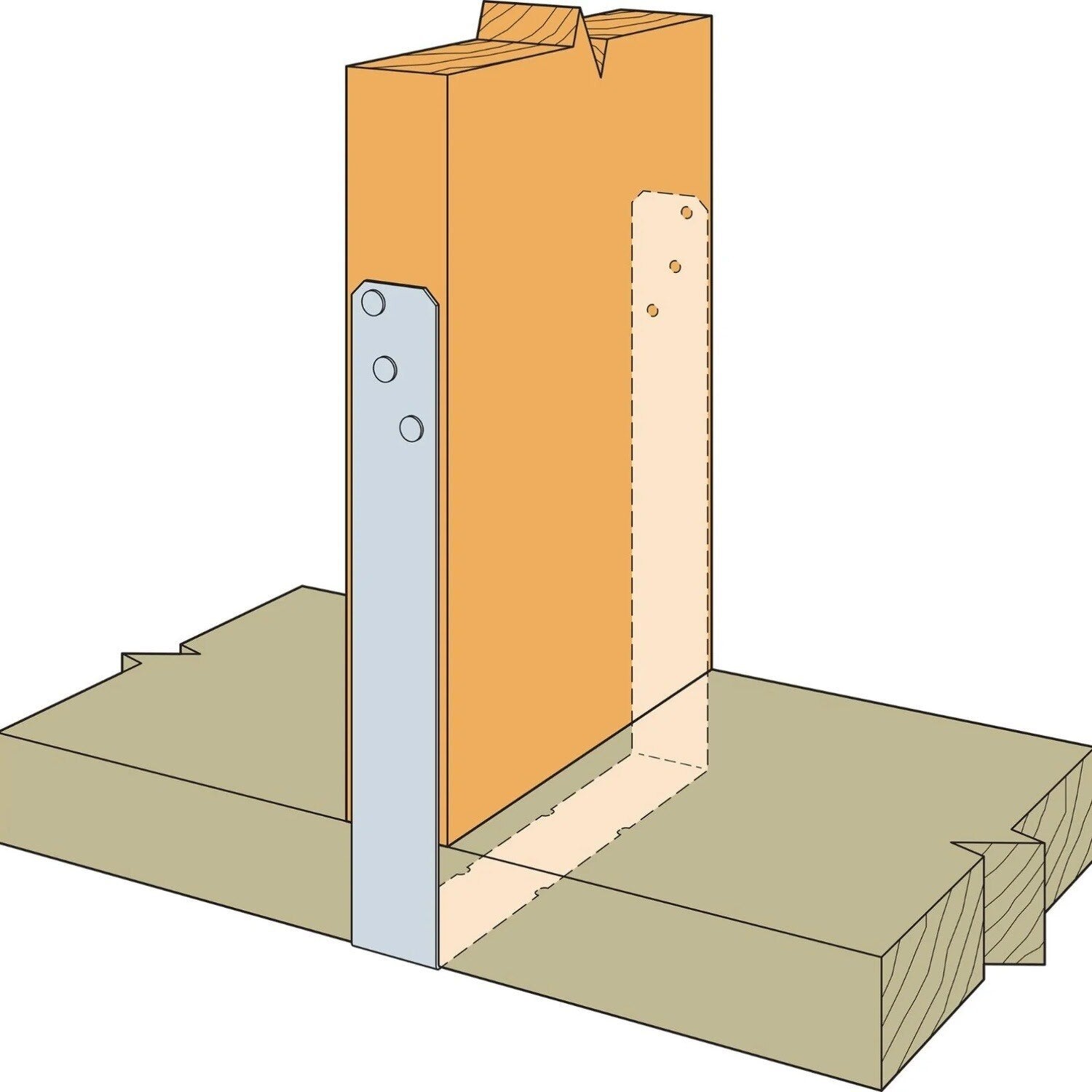

- Securing wall studs to top or bottom tracks
- Providing uplift resistance in hurricane or tornado-prone areas
- Reinforcing structural connections in residential and commercial buildings
Simpson Strong-Tie SP8 Installation Overview
- Use all specified fasteners as per guidelines
- Secure the tie to the stud and plate using the recommended nails
Simpson Strong-Tie SP8 Specifications
| Length | 8-5/16" |
| Width | 7-5/16" |
| Material | Carbon Steel |
| Fasteners required | (6) 0.148" x 1-1/2" Nails |
| For Treated Lumber | Yes |
Toolup Part # :
824196
