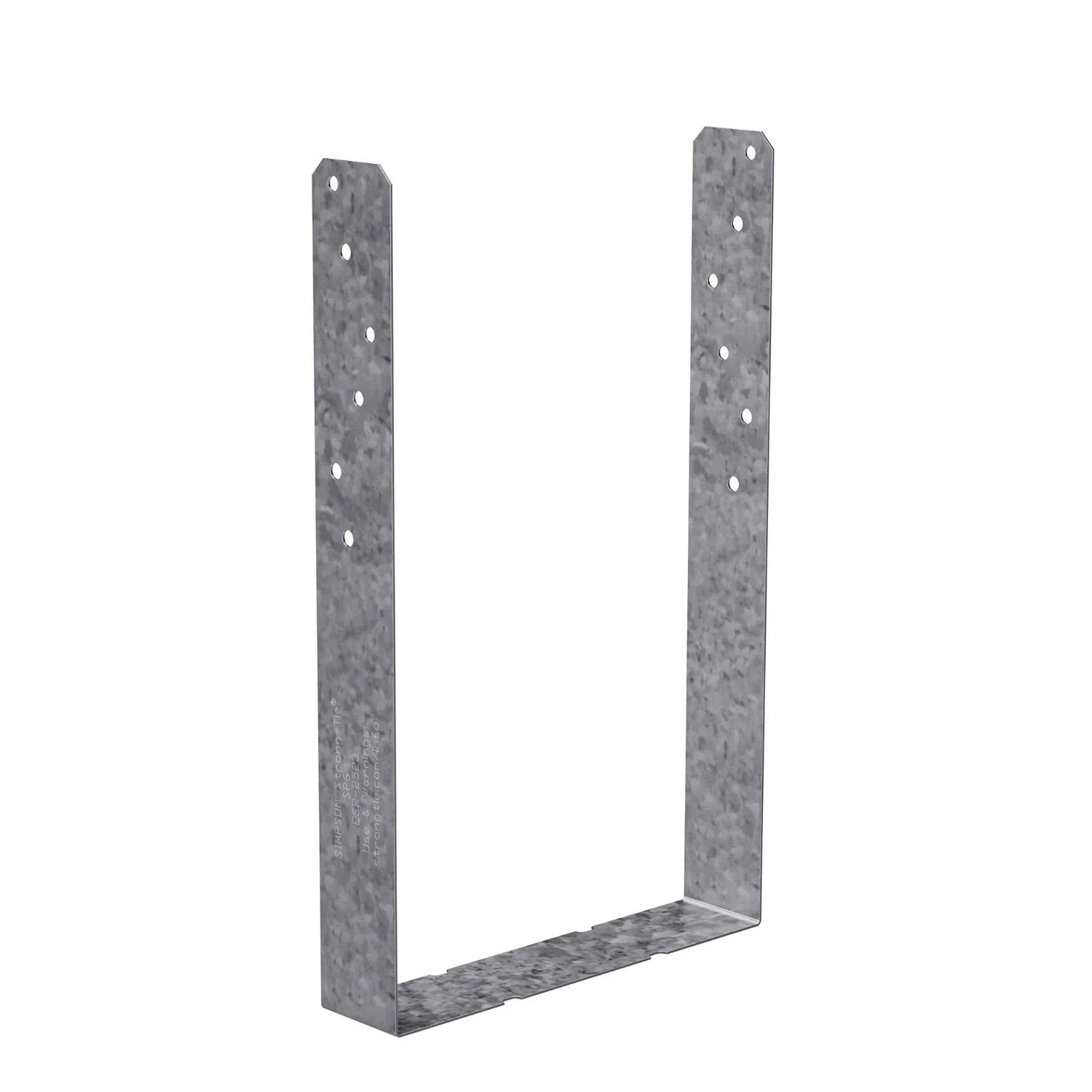

Simpson Strong-Tie SPH6R Description
The SPH6R stud plate tie is designed to provide uplift resistance in high-wind and seismic environments, ensuring secure connections between studs and plates.
Simpson Strong-Tie SPH6R Includes
- (1) SPH6R Stud Plate Tie
Simpson Strong-Tie SPH6R Features
- Load rated for high-wind and seismic forces
- Does not require top or bottom track attachment
- Made from galvanized steel for durability
Simpson Strong-Tie SPH6R Applications
- High-wind construction: Provides uplift resistance in hurricane and tornado-prone areas
- Seismic construction: Ensures secure connections in earthquake-prone regions
Simpson Strong-Tie SPH6R Installation Overview
- Use all specified fasteners as per the general notes
- Secure the plate tie to the studs and plates as per the installation guidelines
Simpson Strong-Tie SPH6R Specifications
| Gauge | 18 |
| Width | 6-1/16" |
| Length | 8-3/4" |
| Material | Carbon Steel |
| Coating | Zinc Galvanized, G90 |
| Fasteners Required | (12) 0.148" x 1-1/2" Nails |
NOTE: Ensure all specified fasteners are used as per the general notes for proper installation.
