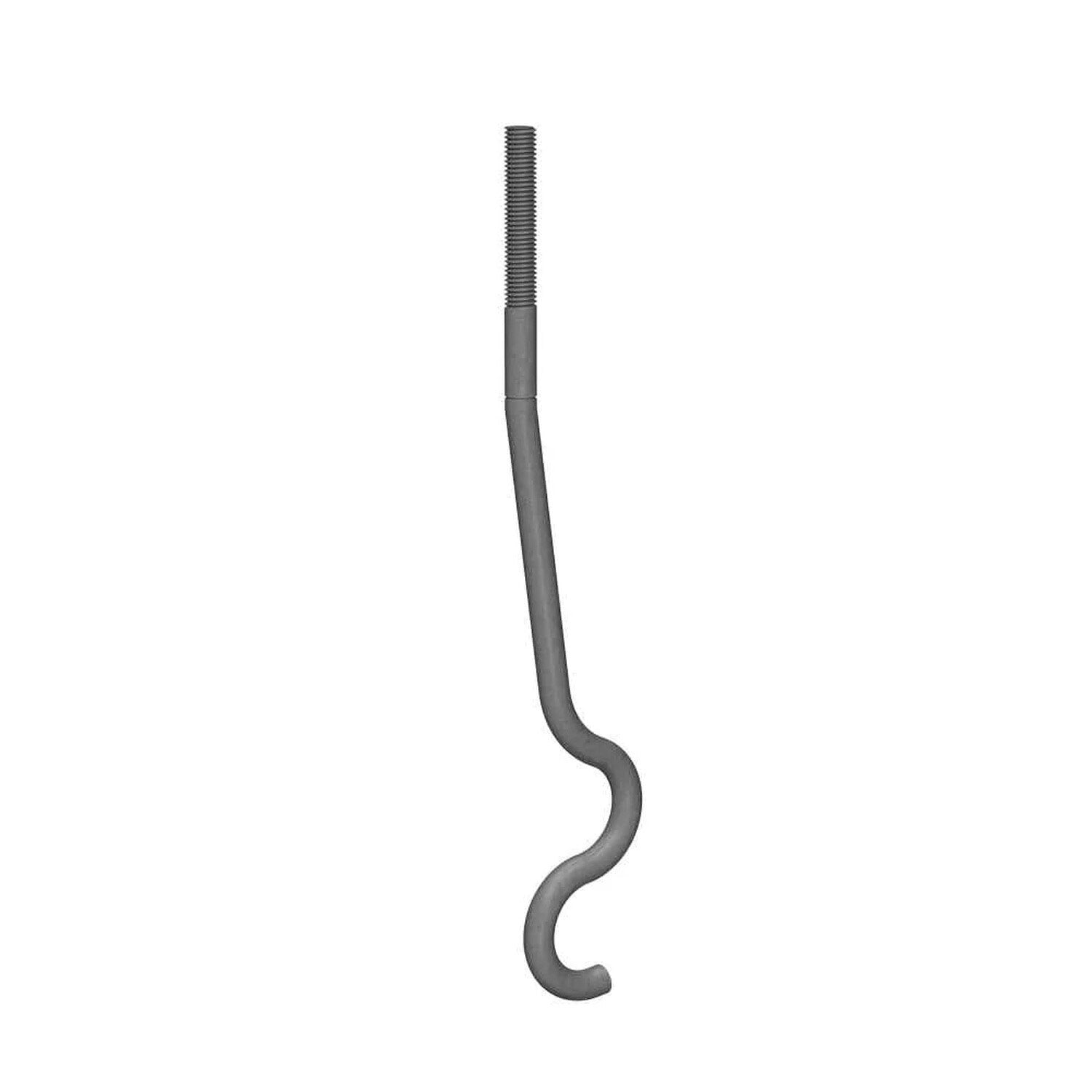

Simpson Strong-Tie SSTB14 Description
The Simpson Strong-Tie SSTB14 Anchor Bolt is a high-performance solution for concrete holdowns and shearwalls, designed for durability and reliability.
Simpson Strong-Tie SSTB14 Includes
- (1) 5/8" x 16" Anchor Bolt
Simpson Strong-Tie SSTB14 Features
- Identification on the bolt head showing embedment angle and model
- Offset angle reduces side bursting and provides more concrete cover
- Rolled thread for higher tensile capacity
- Stamped embedment line aids installation
- Available in HDG for additional corrosion resistance
Simpson Strong-Tie SSTB14 Applications
- Concrete holdowns and shearwalls
- General anchoring in concrete structures

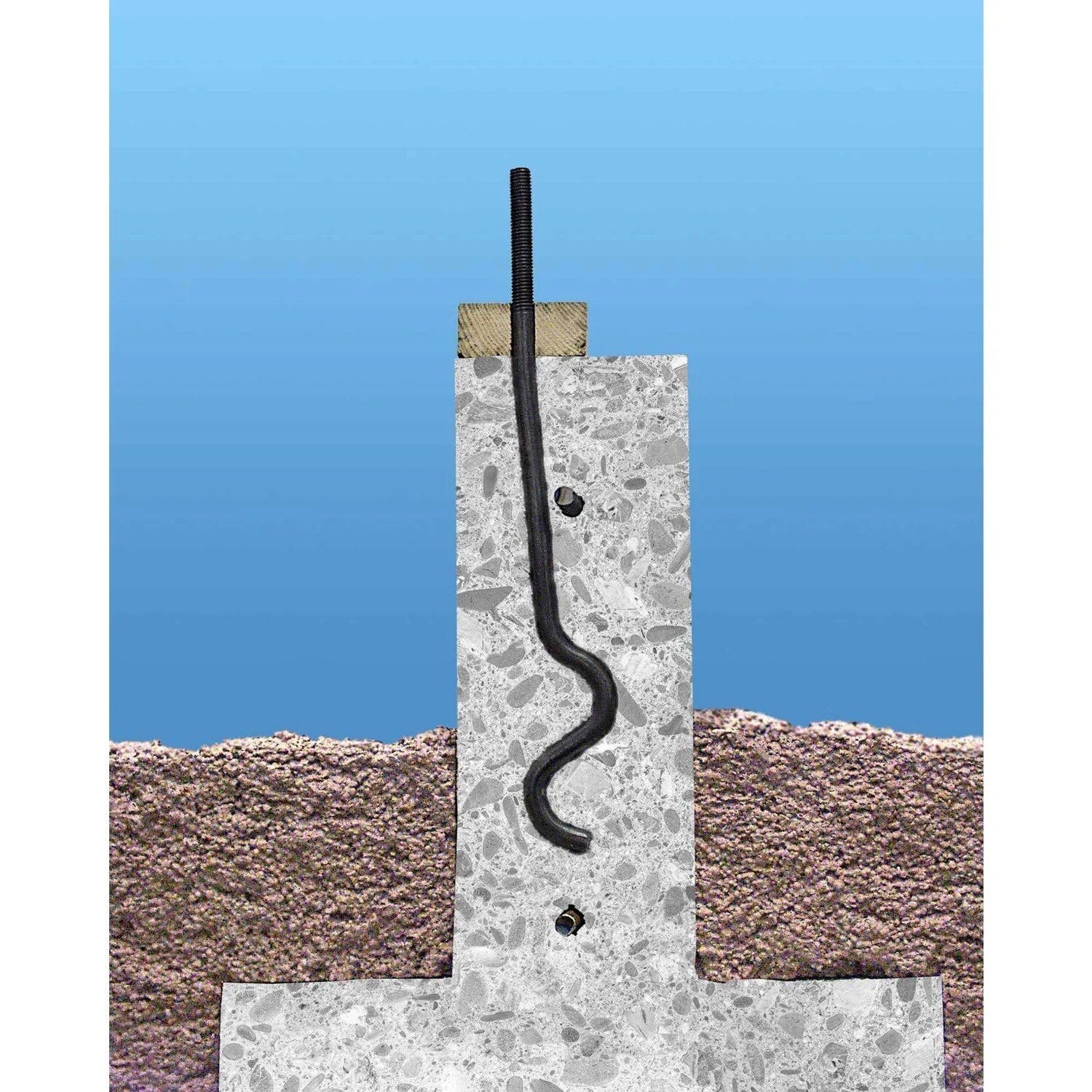

Simpson Strong-Tie SSTB14 Installation Overview
- Install SSTB before the concrete pour using AnchorMate anchor bolt holders.
- Ensure minimum concrete compressive strength of 2,500 psi.
- Follow the installation guide for proper placement and securing.
Simpson Strong-Tie SSTB14 Specifications
| Material | ASTM F-1554, Grade 36 |
| Finish | None. May be ordered HDG. |
| Diameter | 5/8" |
| Length | 16" |
| Thread length | 3-1/2" |
| Weight | 1.3 lb |
Toolup Part # :
819033
