Simpson Anchors | SKU:
SSTB16-R

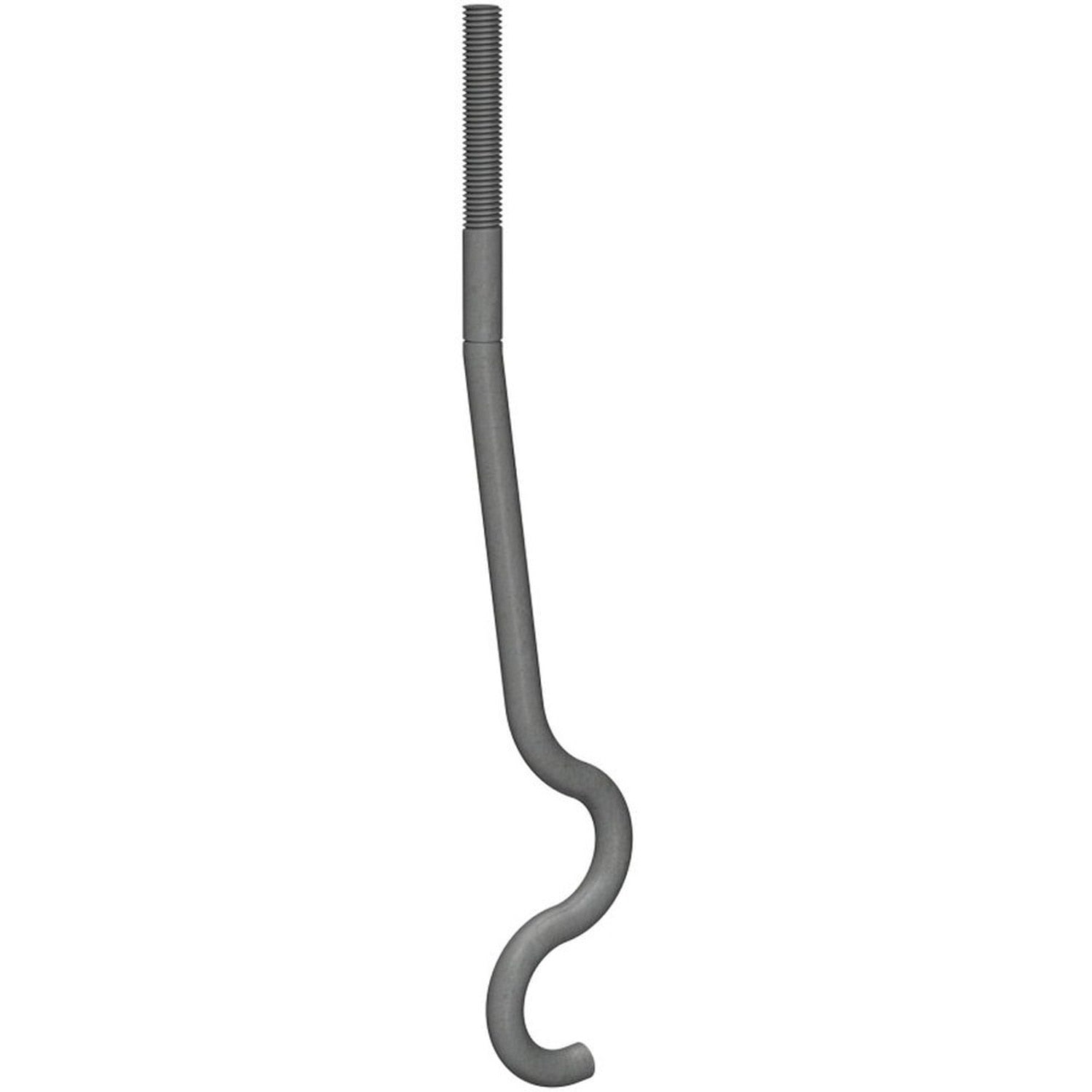

Simpson Strong-Tie SSTB16-R (5/8" x 17-5/8") Anchor Bolt for Concrete Applications
$10.28
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie SSTB16-R Description
The SSTB16-R Anchor Bolt is designed for concrete applications, offering high tensile capacity and corrosion resistance.
Simpson Strong-Tie SSTB16-R Includes
- (1) Simpson Anchors SSTB16-R
Simpson Strong-Tie SSTB16-R Features
- Identification on the bolt head showing embedment angle and model
- Offset angle reduces side bursting, and provides more concrete cover
- Rolled thread for higher tensile capacity
- Stamped embedment line aids installation
- Available in HDG for additional corrosion resistance
Simpson Strong-Tie SSTB16-R Applications
- Concrete applications requiring secure anchoring

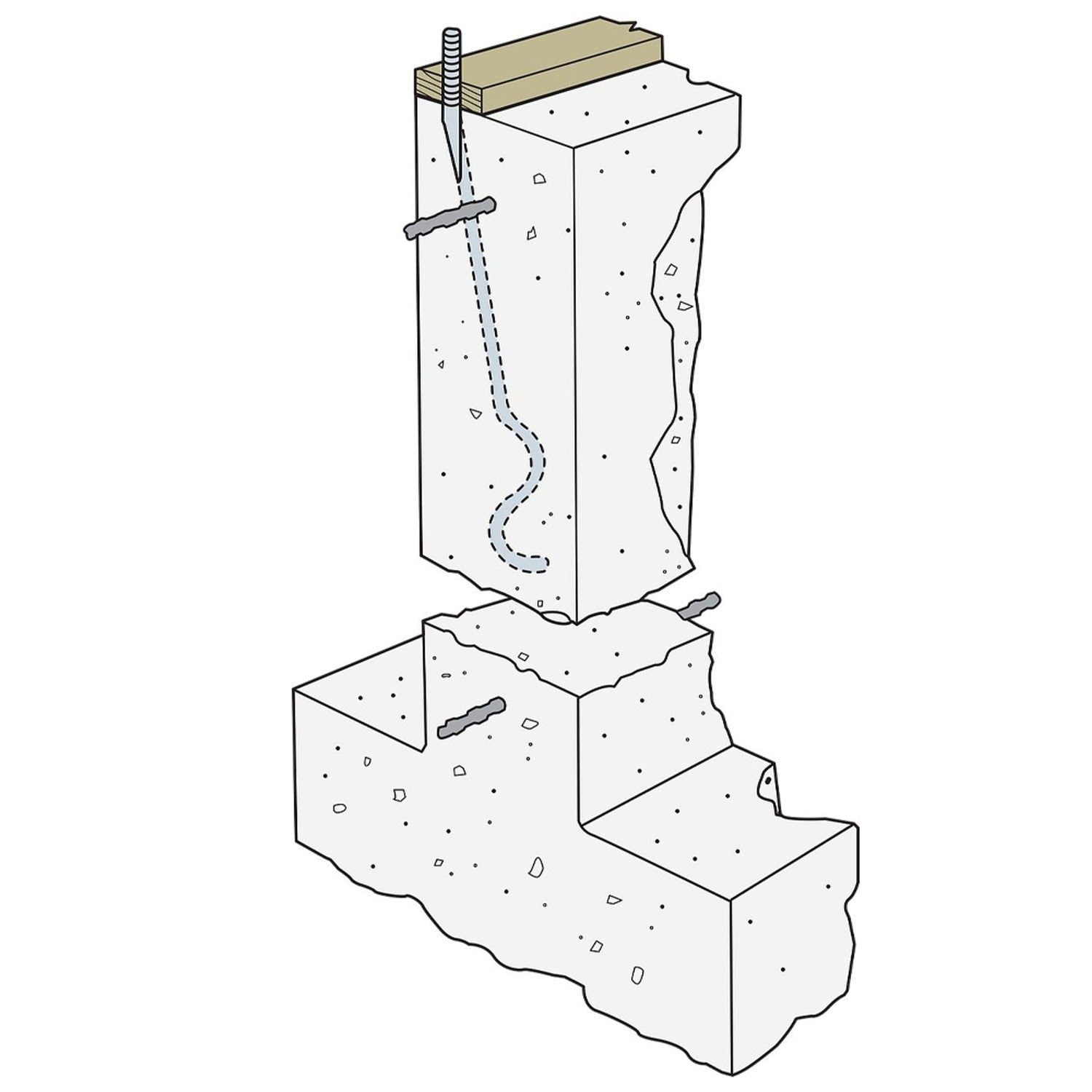

- Use in monolithic and two-pour concrete setups
- Suitable for GFCMU (Grout-Filled Concrete Masonry Units) installations
Simpson Strong-Tie SSTB16-R Installation Overview
- Install SSTB before the concrete pour using AnchorMate anchor bolt holders
- Ensure minimum concrete compressive strength of 2,500 psi
- Follow plan view details for proper alignment and positioning
Simpson Strong-Tie SSTB16-R Specifications
| Material | ASTM F-1554, Grade 36 |
| Finish | None. May be ordered HDG. |
| Application | Concrete |
