Simpson Anchors | SKU:
SSTB16L

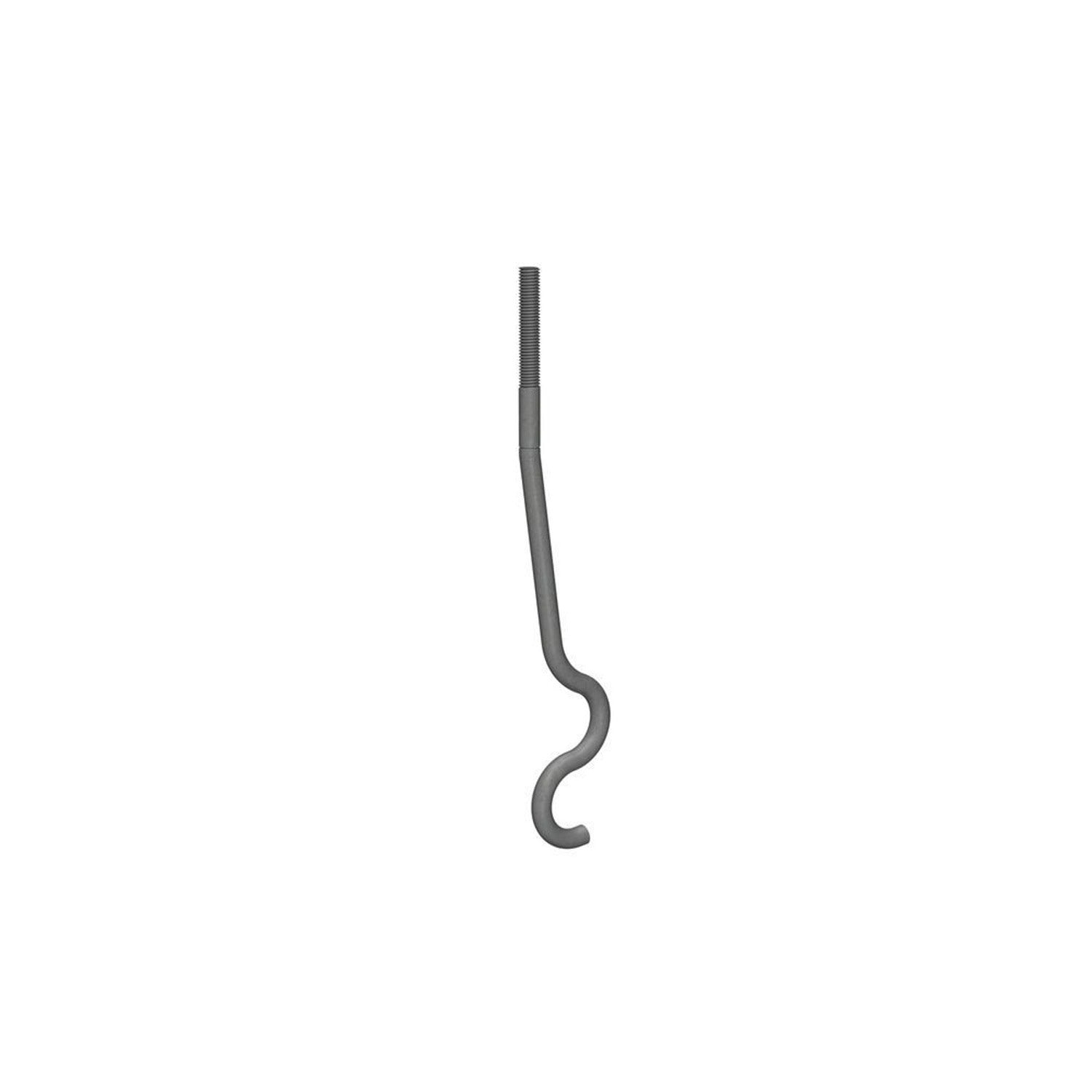

Simpson Strong-Tie SSTB16L (5/8 in. x 19-5/8 in.) Anchor Bolt for Concrete Applications
$10.44
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie SSTB16L Description
The SSTB16L Anchor Bolt is designed for concrete applications, offering high tensile capacity and corrosion resistance.
Simpson Strong-Tie SSTB16L Includes
- (1) SSTB16L Anchor Bolt
Simpson Strong-Tie SSTB16L Features
- Identification on the bolt head showing embedment angle and model
- Offset angle reduces side bursting and provides more concrete cover
- Rolled thread for higher tensile capacity
- Stamped embedment line aids installation
- Available in HDG for additional corrosion resistance
Simpson Strong-Tie SSTB16L Applications
- Concrete anchoring for structural holdowns

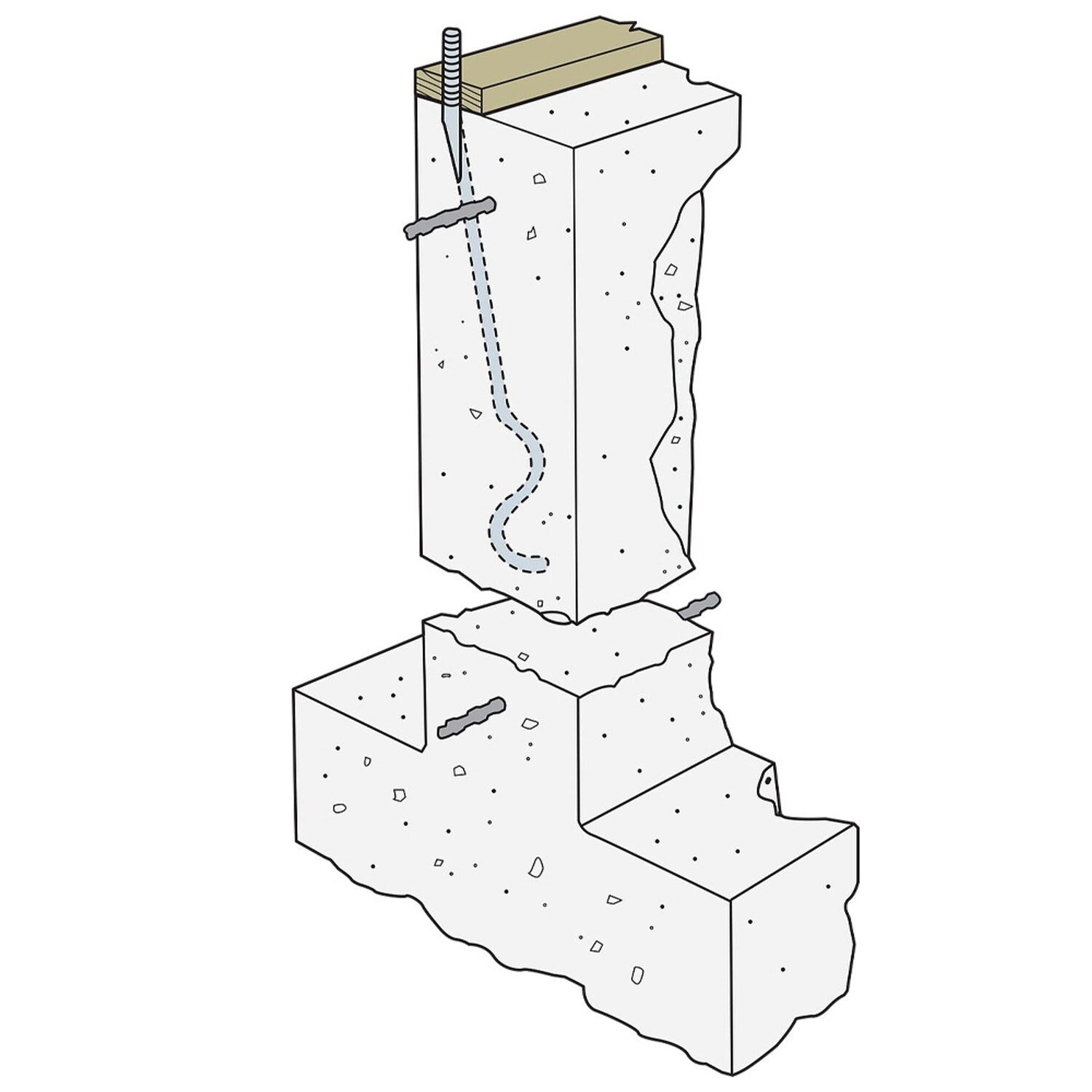

- Suitable for monolithic and two-pour concrete applications
- Used in construction requiring high tensile capacity anchors
Simpson Strong-Tie SSTB16L Installation Overview
- Install SSTB before the concrete pour using AnchorMate anchor bolt holders.
- Ensure minimum concrete compressive strength of 2,500 psi.
- Follow plan view detail for proper placement.
- Use standard nuts, couplers, and washers as required.
- For HDG SSTB anchors, chase the threads or use overtapped products.
Simpson Strong-Tie SSTB16L Specifications
| Material | ASTM F-1554, Grade 36 |
| Finish | None. May be ordered HDG. |
| Diameter | 5/8" |
| Length | 19-5/8" |
| Thread length | 5-1/2" |
| Quantity | 1 |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
