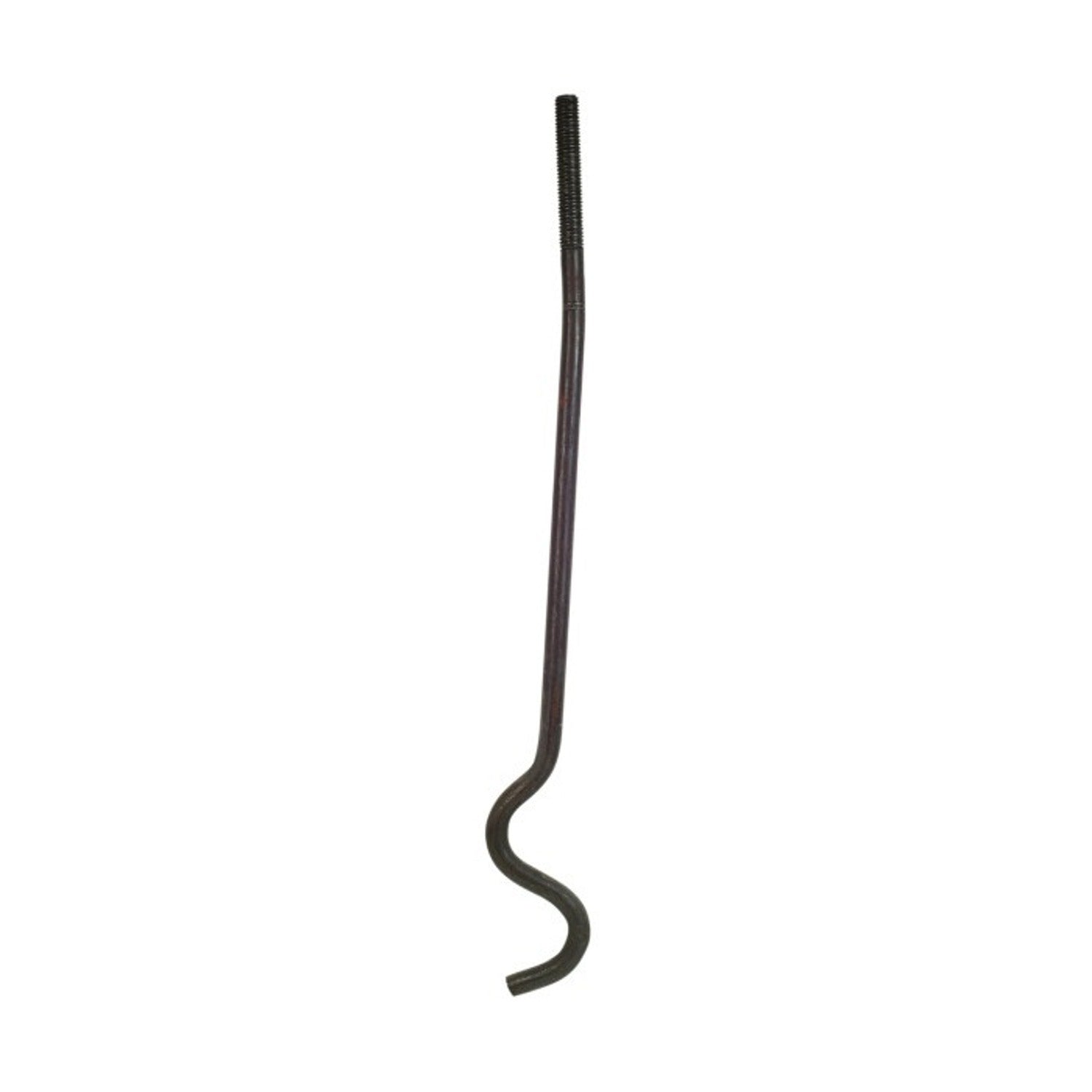

Simpson SSTB20 Description
The SSTB20 Anchor Bolt is designed for concrete applications, offering high tensile capacity and corrosion resistance.
Simpson SSTB20 Includes
- (1) Anchor Bolt for Concrete Applications
Simpson SSTB20 Features

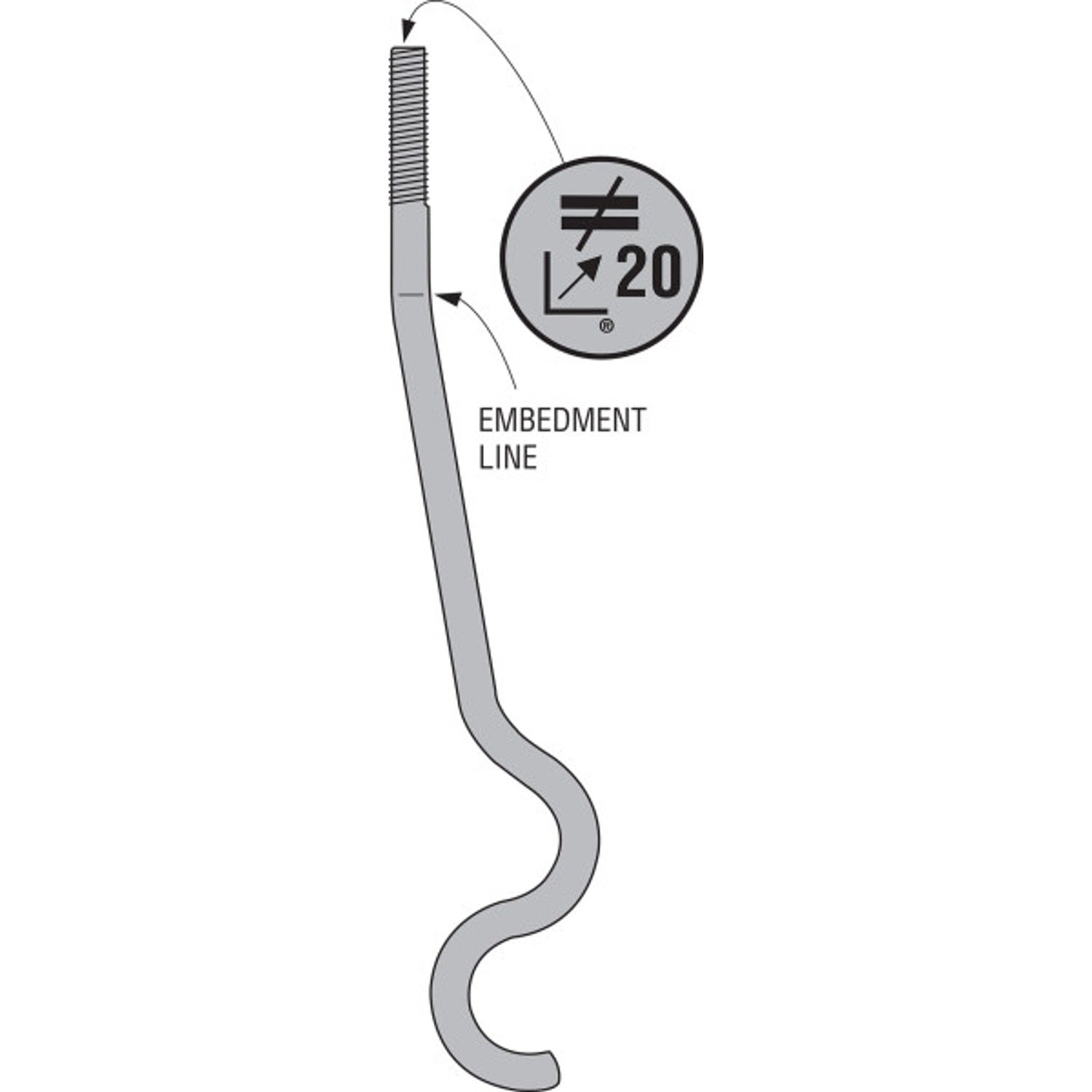

- Identification on the bolt head showing embedment angle and model
- Offset angle reduces side bursting, and provides more concrete cover
- Rolled thread for higher tensile capacity
- Stamped embedment line aids installation
- Available in HDG for additional corrosion resistance
Simpson SSTB20 Applications
- Concrete anchoring for structural holdowns
- Suitable for monolithic and two-pour concrete applications

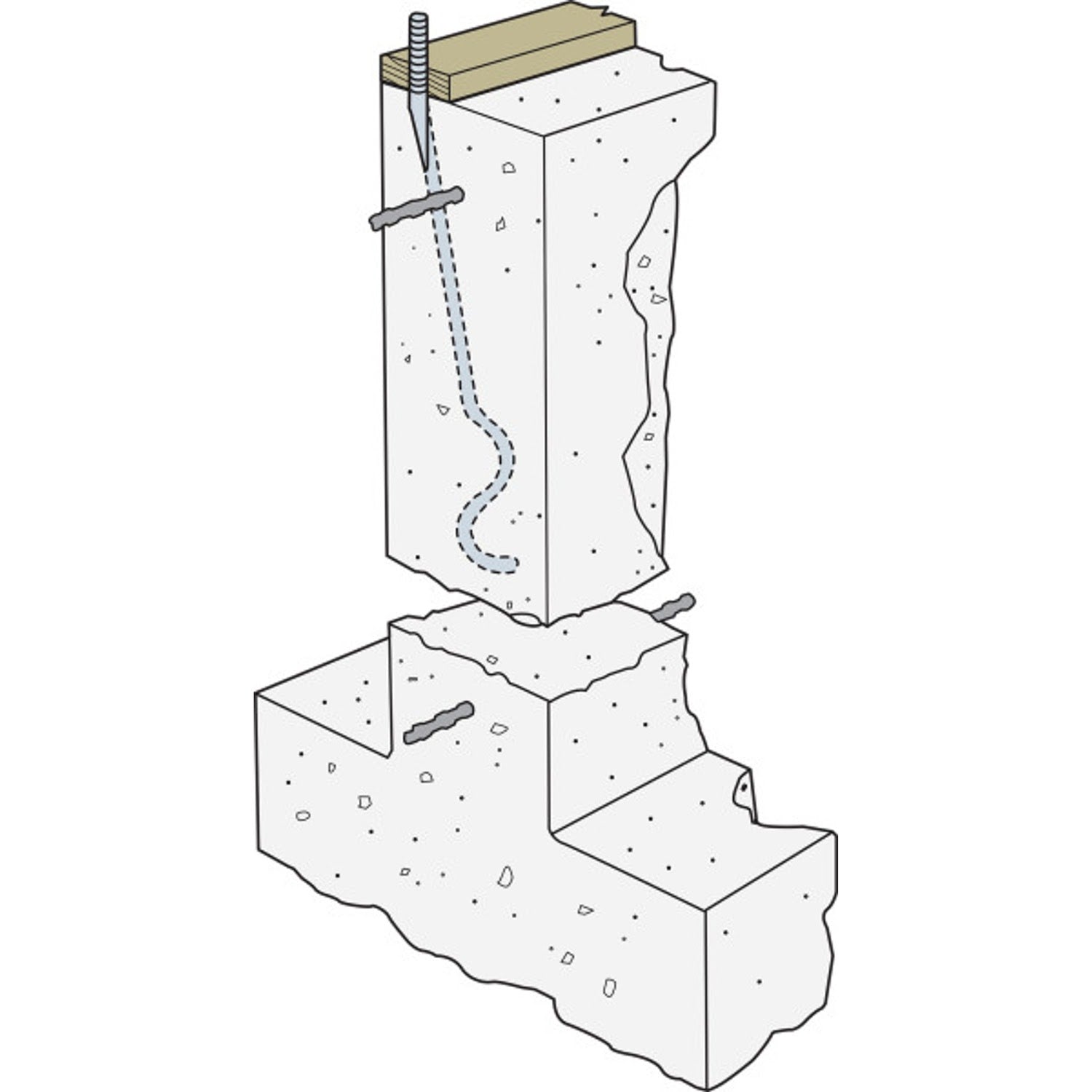

- Used in grout-filled concrete masonry units (GFCMU)
Simpson SSTB20 Installation Overview
- Install SSTB before the concrete pour using AnchorMate anchor bolt holders
- Minimum concrete compressive strength is 2,500 psi
- Order SSTBL models for longer thread length
- Use overtapped products for HDG SSTB anchors
Simpson SSTB20 Specifications
| Material | ASTM F-1554, Grade 36 |
| Finish | None. May be ordered HDG. |
| Application | Concrete |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
