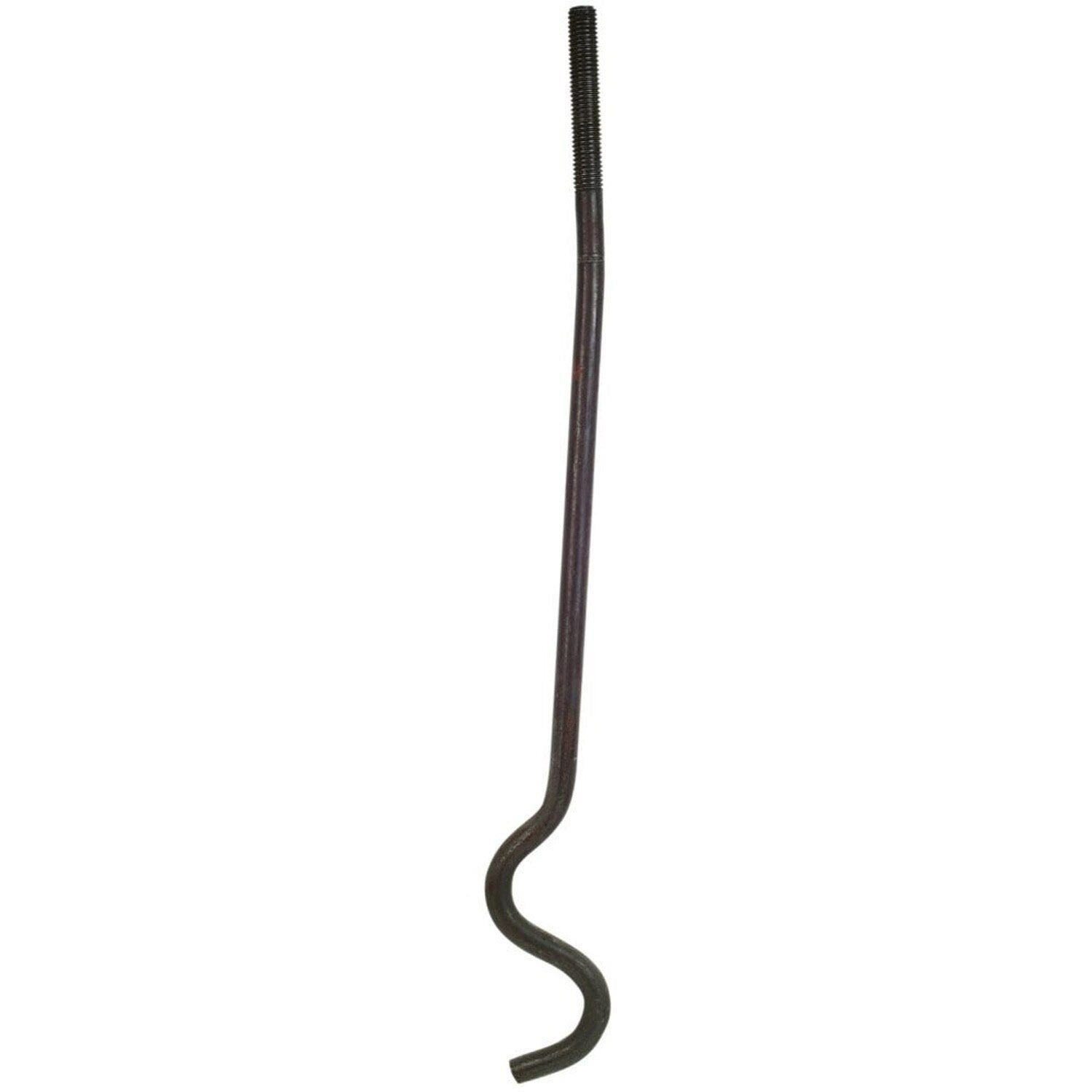

Simpson Strong-Tie SSTB20HDG-R Description
The SSTB20HDG-R is a hot-dip galvanized anchor bolt designed for concrete applications, offering high tensile capacity and corrosion resistance.
Simpson Strong-Tie SSTB20HDG-R Includes
- (1) Hot-Dip Galvanized Anchor Bolt
Simpson Strong-Tie SSTB20HDG-R Features

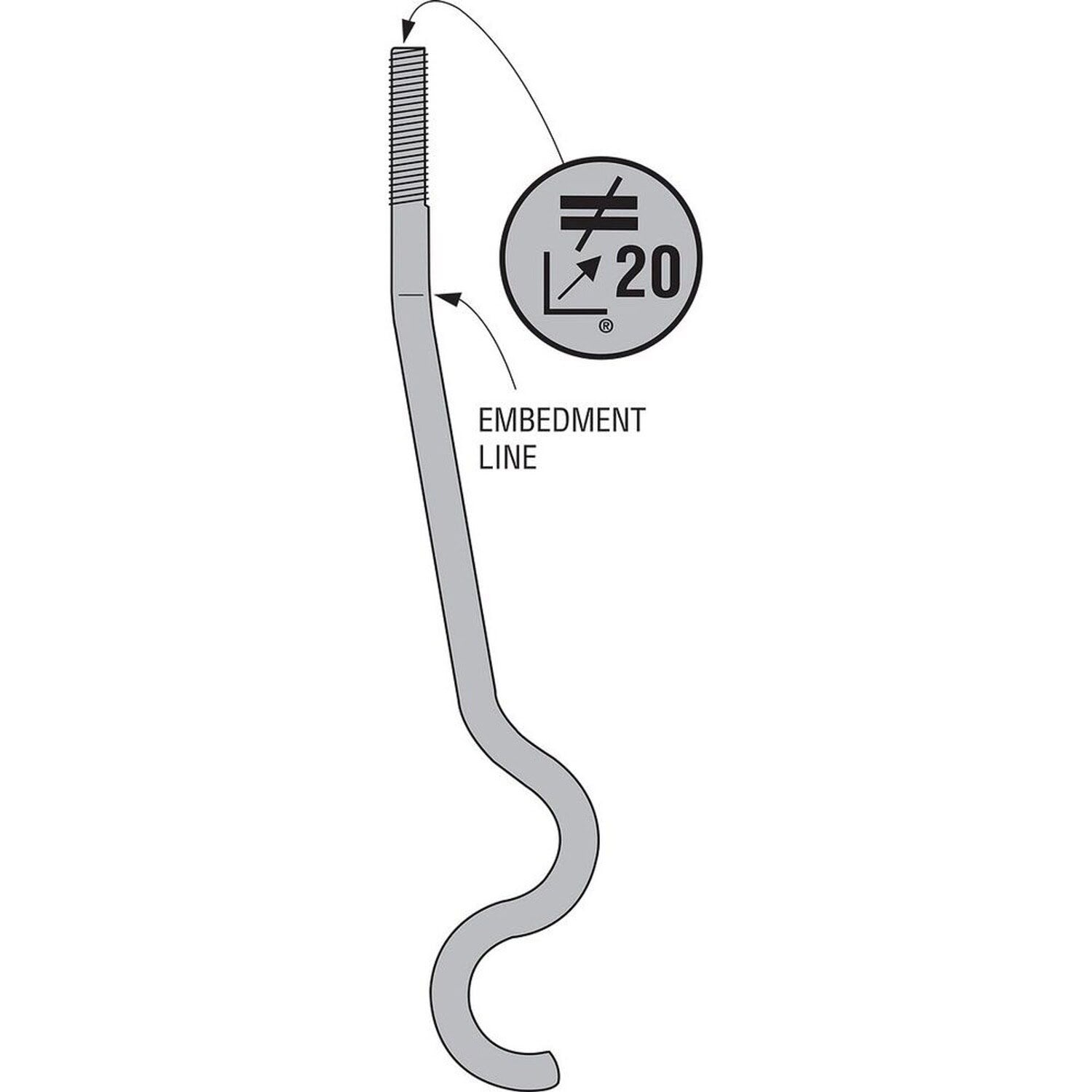

- Identification on the bolt head showing embedment angle and model
- Offset angle reduces side bursting, and provides more concrete cover
- Rolled thread for higher tensile capacity
- Stamped embedment line aids installation
- Available in HDG for additional corrosion resistance
Simpson Strong-Tie SSTB20HDG-R Applications
- Concrete anchoring for structural support
- Use in monolithic and two-pour concrete applications
- Suitable for grout-filled concrete masonry units (GFCMU)
Simpson Strong-Tie SSTB20HDG-R Installation Overview
- Install SSTB before the concrete pour using AnchorMate anchor bolt holders
- Ensure minimum concrete compressive strength of 2,500 psi
- Follow specific rebar requirements for GFCMU and other applications
Simpson Strong-Tie SSTB20HDG-R Specifications
| Material | ASTM F-1554, Grade 36 |
| Finish | Hot-Dip Galvanized |
| Application | Concrete |
Toolup Part # :
825067
