Simpson Anchors | SKU:
SSTB20HDG

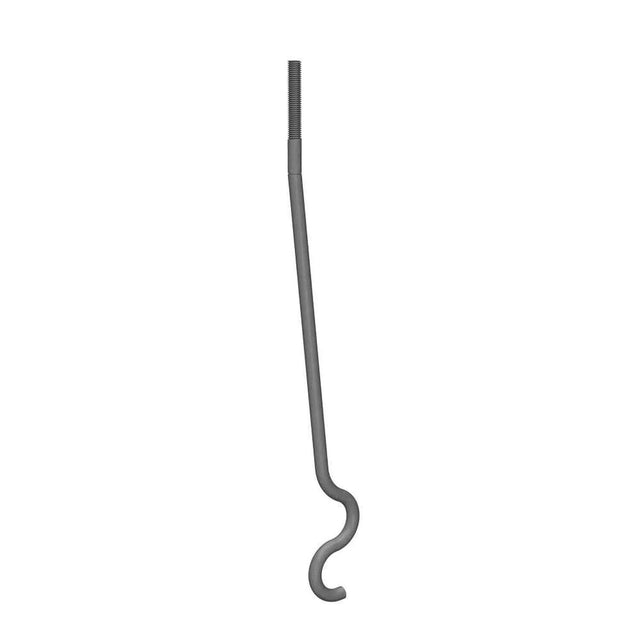

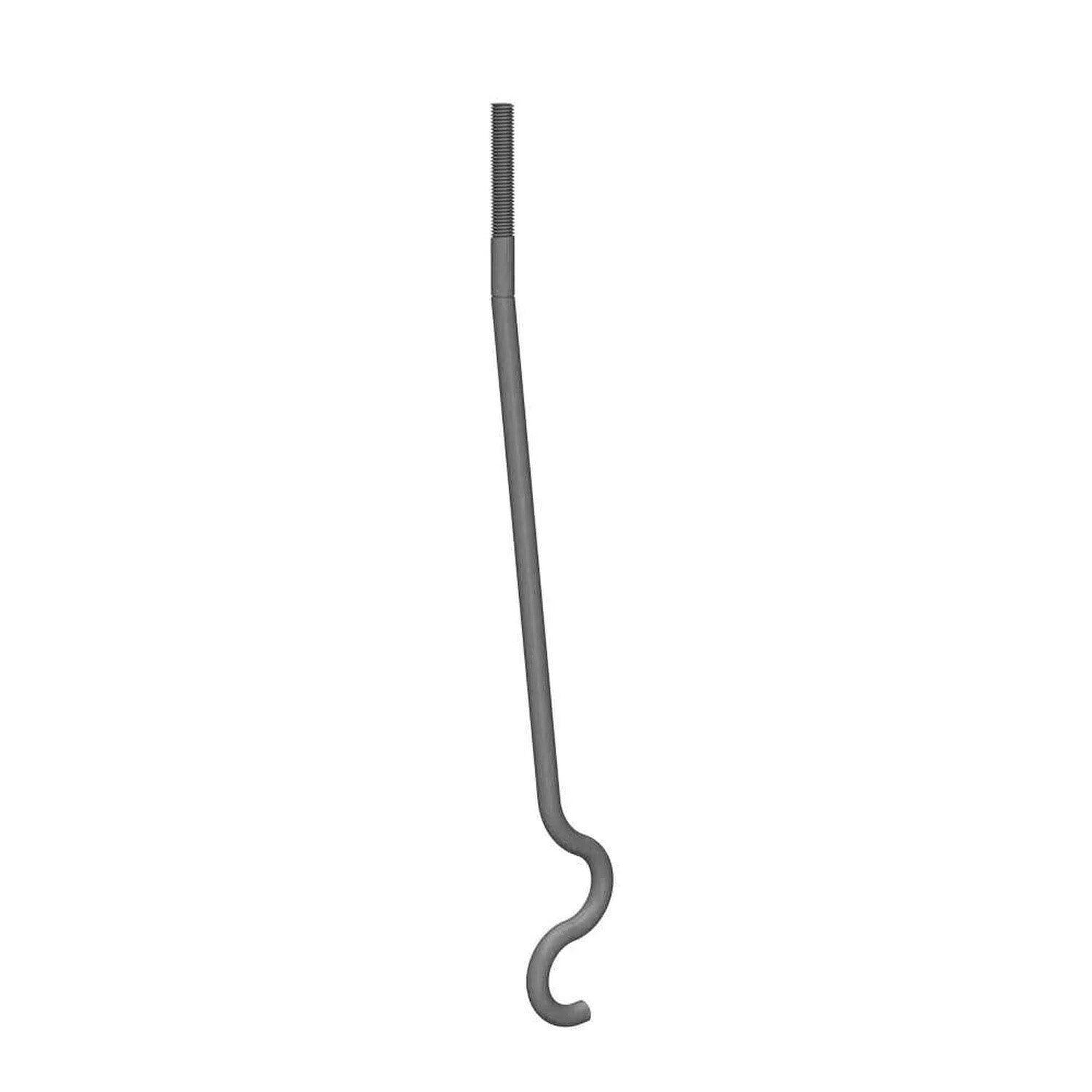

Simpson Strong-Tie SSTB20HDG (5/8 in. x 21-5/8 in.) Hot-Dip Galvanized Anchor Bolt
$18.04
$23.85
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie SSTB20HDG Description
The SSTB Anchor Bolt by Simpson Strong-Tie is designed for maximum performance in concrete applications, featuring hot-dip galvanization for enhanced corrosion resistance.
Simpson Strong-Tie SSTB20HDG Includes
- (1) SSTB Anchor Bolt
Simpson Strong-Tie SSTB20HDG Features
- Identification on the bolt head showing embedment angle and model
- Offset angle reduces side bursting, and provides more concrete cover
- Rolled thread for higher tensile capacity
- Stamped embedment line aids installation
- Available in HDG for additional corrosion resistance
Simpson Strong-Tie SSTB20HDG Applications
- Concrete anchoring for structural holdowns
- Suitable for monolithic and two-pour concrete applications
- Ideal for use in grout-filled concrete masonry units
Simpson Strong-Tie SSTB20HDG Installation Overview
- Install SSTB before the concrete pour using AnchorMate anchor bolt holders.
- Ensure minimum concrete compressive strength of 2,500 psi.
- Follow plan view details for proper alignment and positioning.
- Use overtapped products or chase threads for HDG anchors.
- Rebar is not required to be tied to the SSTB.
Simpson Strong-Tie SSTB20HDG Specifications
| Diameter | 5/8" |
| Finish | Hot Dip Galvanized |
| Length | 21-5/8" |
| Material | Steel |
| Thread length | 3-1/2" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
