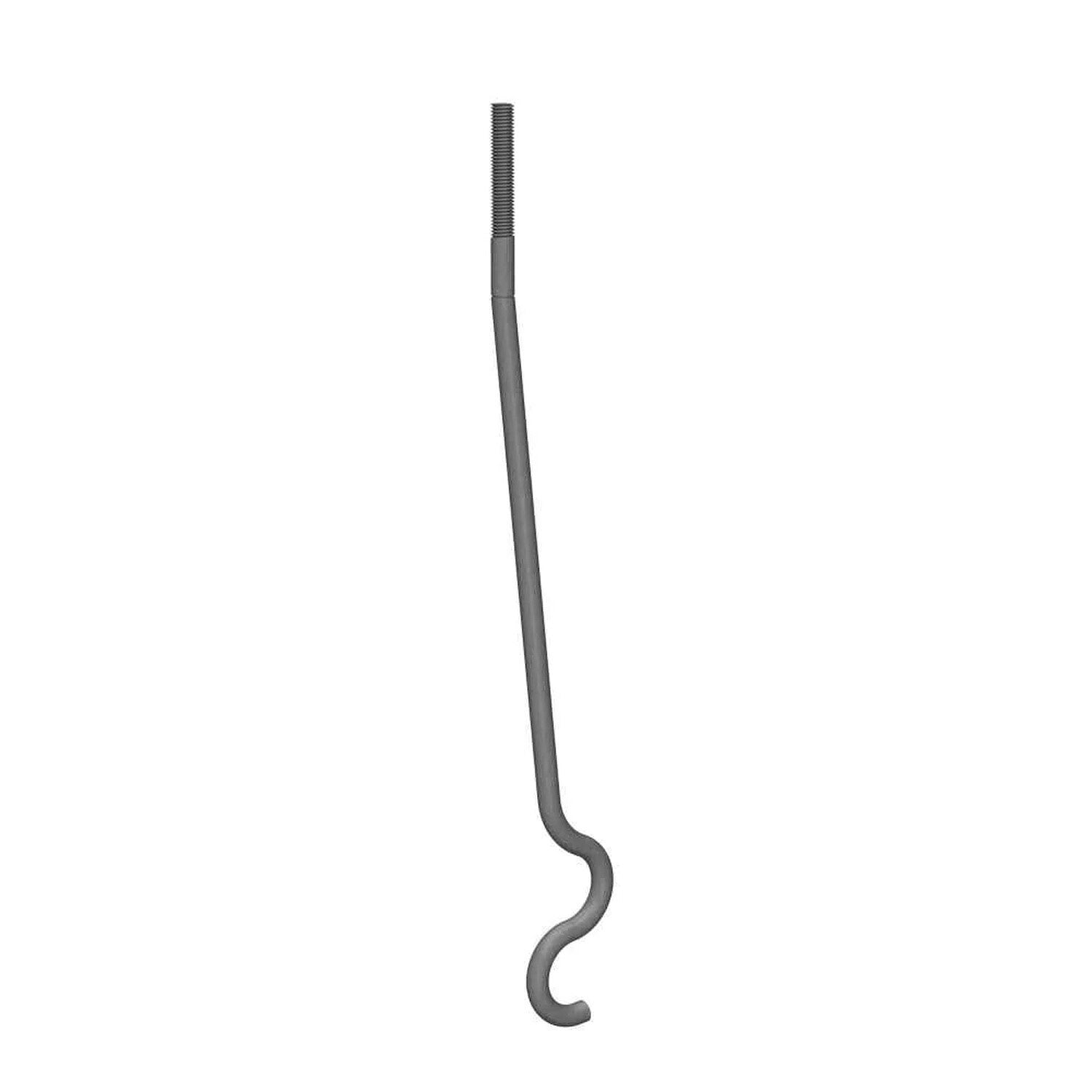

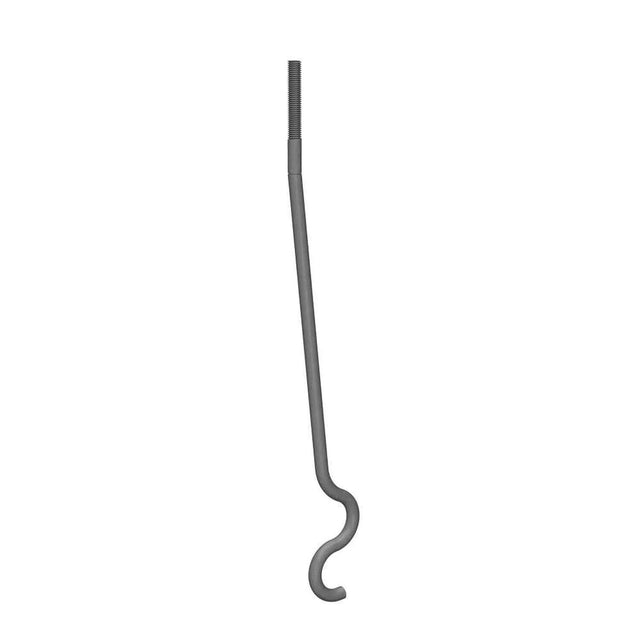

Simpson SSTB24HDG Description
The SSTB24HDG Anchor Bolt is designed for concrete applications, offering high tensile capacity and corrosion resistance.
Simpson SSTB24HDG Includes
- (1) Hot-Dip Galvanized Anchor Bolt
Simpson SSTB24HDG Features
- Identification on the bolt head showing embedment angle and model
- Offset angle reduces side bursting and provides more concrete cover
- Rolled thread for higher tensile capacity
- Stamped embedment line aids installation
- Available in HDG for additional corrosion resistance
Simpson SSTB24HDG Applications
- Concrete foundations requiring secure anchoring

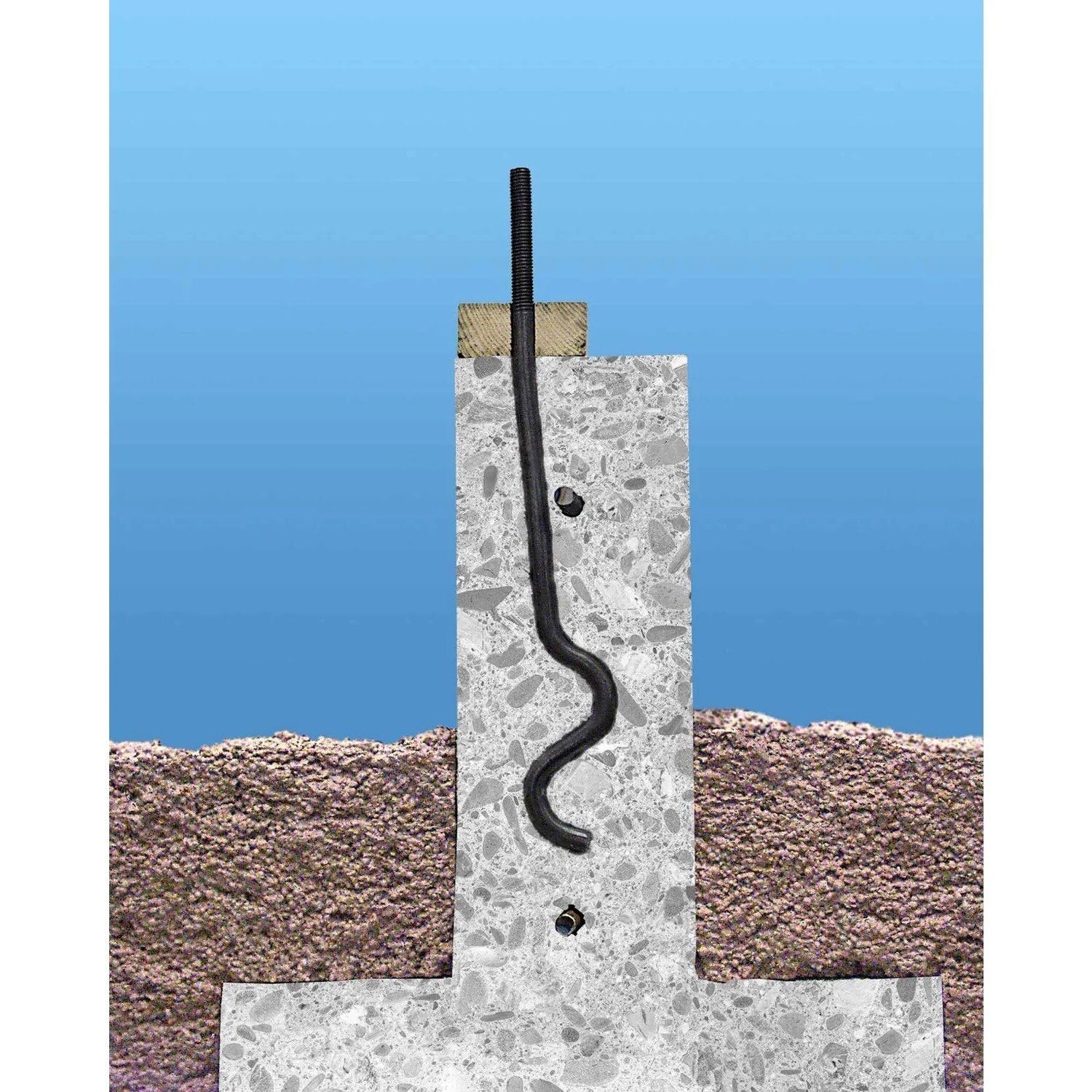

- Structural support in monolithic and two-pour concrete applications
- Use in grout-filled concrete masonry units (GFCMU)
Simpson SSTB24HDG Installation Overview
- Verify dimensions and alignment of the anchor bolt and concrete structure.
- Install SSTB before the concrete pour using AnchorMate anchor bolt holders.
- Ensure minimum concrete compressive strength of 2,500 psi.
- Follow plan view details for proper placement.
- Use overtapped nuts or couplers for HDG SSTB anchors as per ASTM A563.
Simpson SSTB24HDG Specifications
| Material | ASTM F-1554, Grade 36 |
| Finish | Hot-Dip Galvanized |
| Application | Concrete |
NOTE: Ensure proper installation using the specified nuts and washers to achieve published load values
Toolup Part # :
825406
