Simpson Anchors | SKU:
SSTB24L

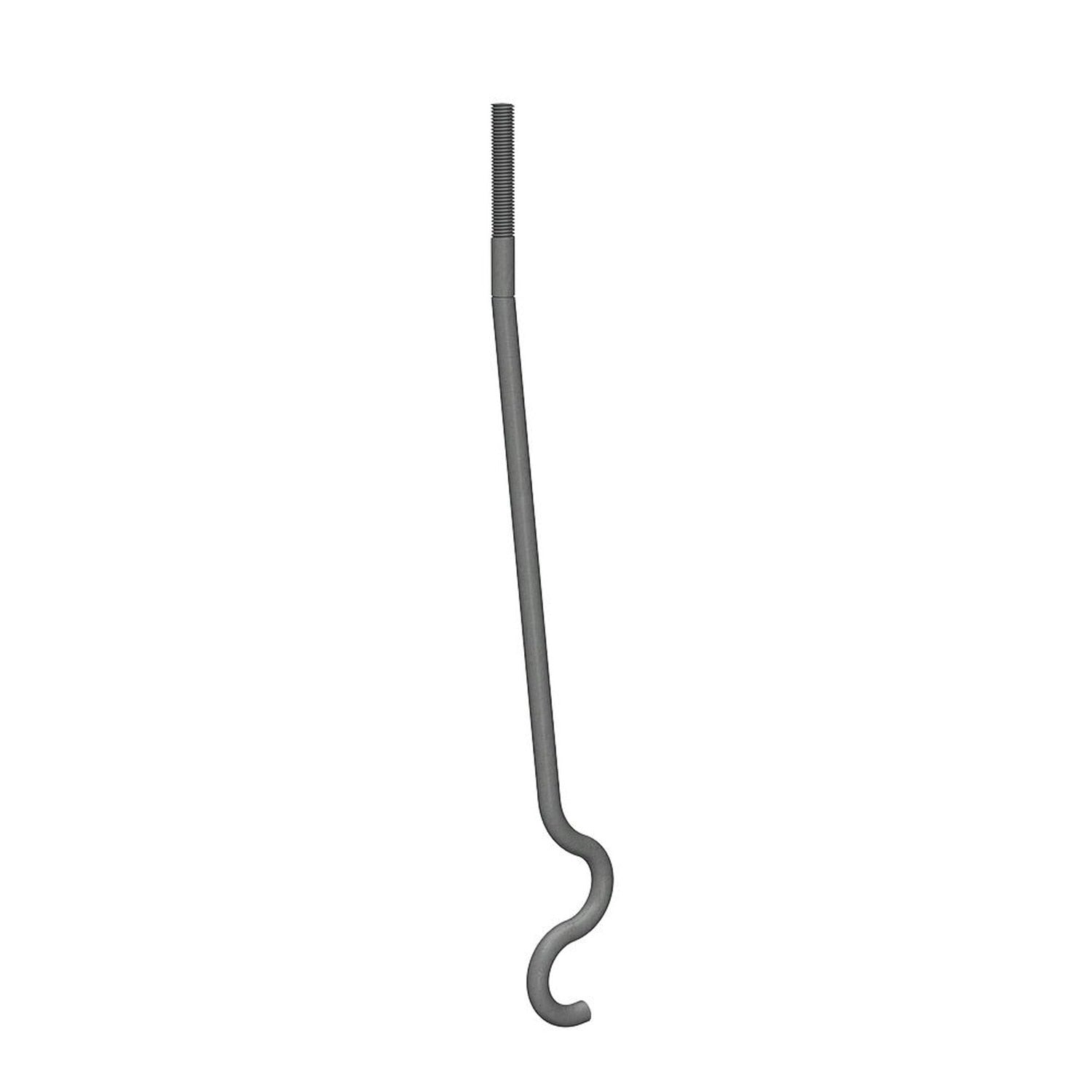

Simpson Strong-Tie SSTB24L (5/8 in. x 28-1/8 in.) Anchor Bolt for Concrete Applications
$14.91
$21.44
Unit price
/
Unavailable
NOTE: This item is ineligible for free shipping
Description
Description
Simpson SSTB24L Description
The SSTB24L Anchor Bolt is designed for concrete applications, featuring a rolled thread for enhanced tensile capacity and an offset angle for reduced side bursting.
Simpson SSTB24L Includes
- (1) Anchor Bolt for Concrete Applications
Simpson SSTB24L Features

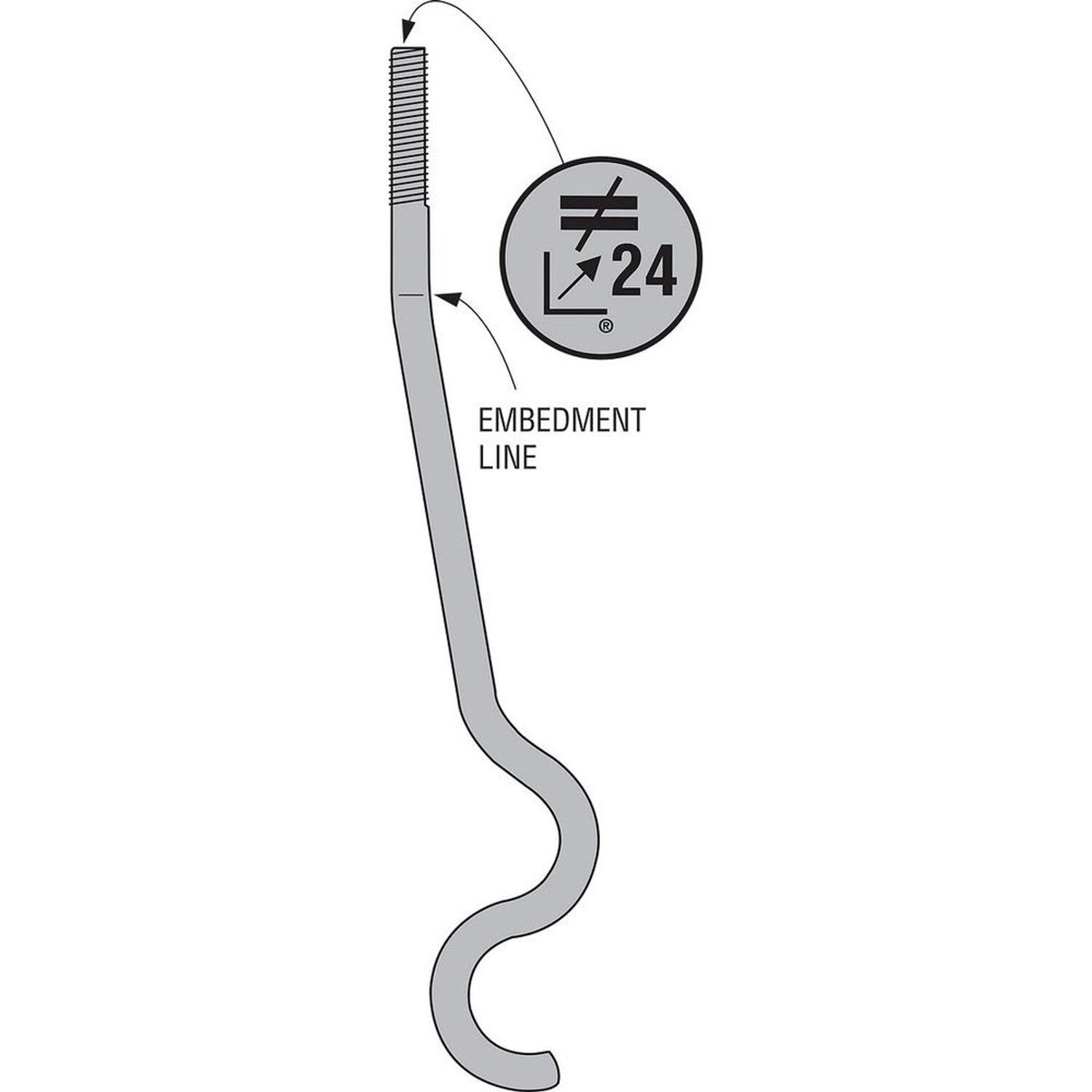

- Identification on the bolt head showing embedment angle and model
- Offset angle reduces side bursting, and provides more concrete cover
- Rolled thread for higher tensile capacity
- Stamped embedment line aids installation
- Available in HDG for additional corrosion resistance
Simpson SSTB24L Applications
- Concrete foundations requiring secure anchoring
- Monolithic and two-pour concrete applications
- Grout-filled concrete masonry units (GFCMU) installations
Simpson SSTB24L Installation Overview
- Install SSTB before the concrete pour using AnchorMate holders
- Ensure minimum concrete compressive strength of 2,500 psi
- Follow plan view details for proper alignment and embedment
- Use standard nuts, couplers, and washers as required
- Chase threads on HDG anchors for compatibility with standard nuts
Simpson SSTB24L Specifications
| Material | ASTM F-1554, Grade 36 |
| Finish | None. May be ordered HDG |
| Application | Concrete |
| Special Order | false |
| Value Engineered | true |
NOTE: Ensure proper installation using AnchorMate holders and follow plan view details for optimal performance
