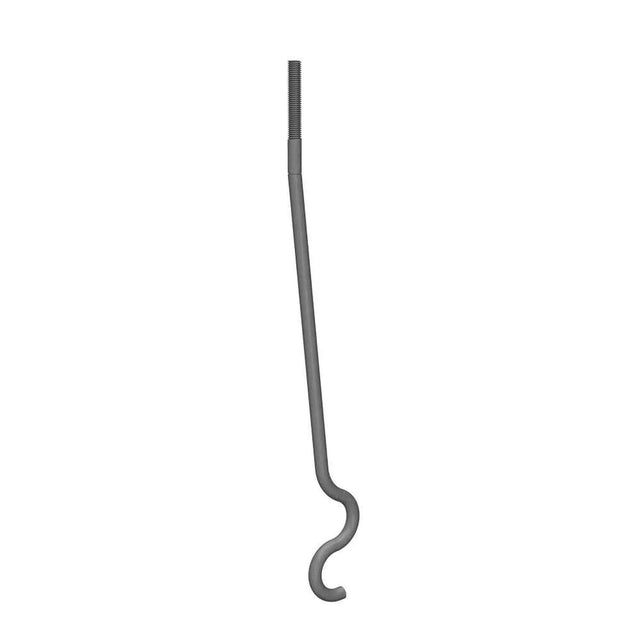

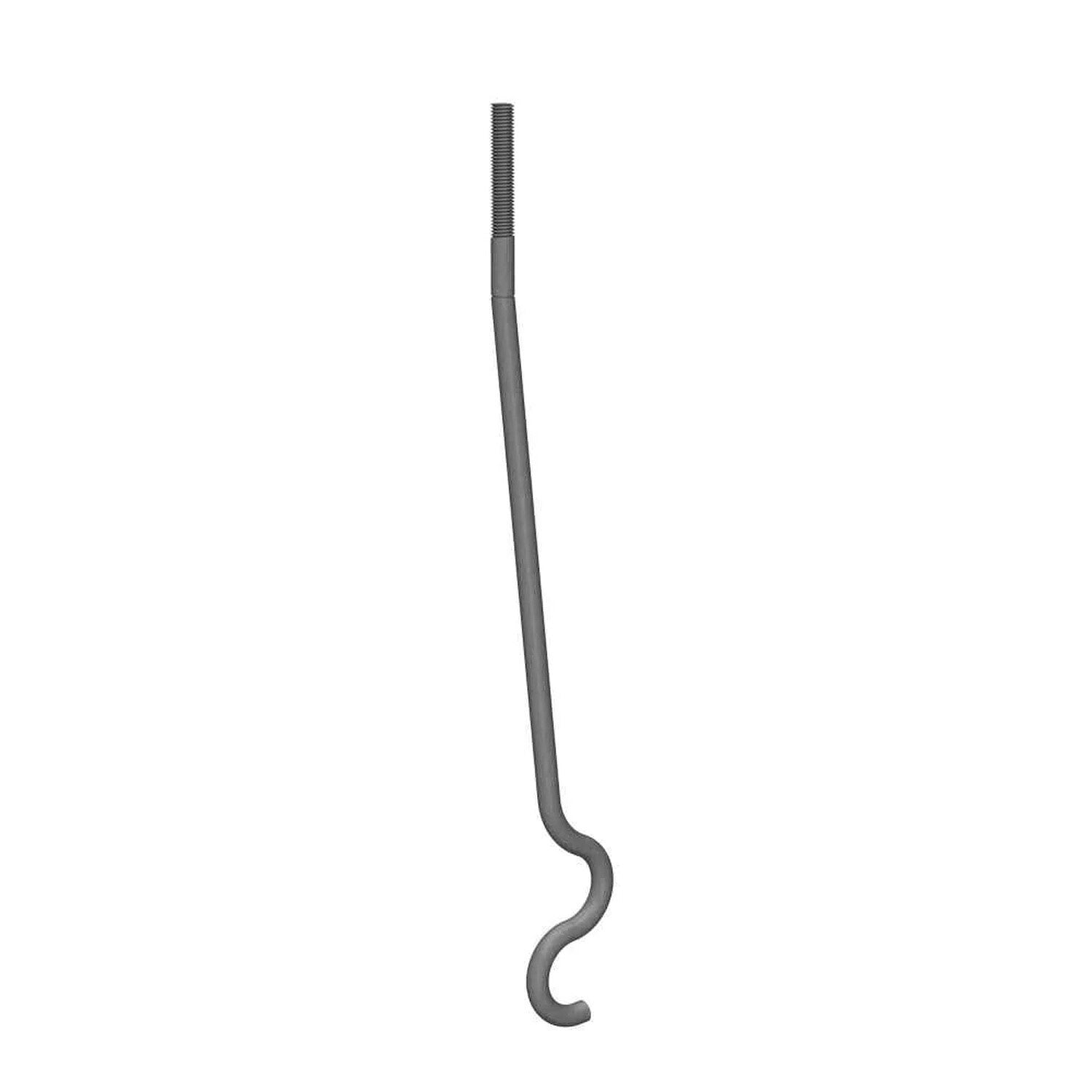

Simpson Strong-Tie SSTB24LHDG (5/8 in. x 28-1/8 in.) Hot-Dip Galvanized Anchor Bolt
Description
Description
Simpson Strong-Tie SSTB24LHDG Description
The SSTB Anchor Bolt is designed for maximum performance in concrete applications, featuring a hot-dip galvanized finish for enhanced corrosion resistance.
Simpson Strong-Tie SSTB24LHDG Includes
- (1) SSTB Anchor Bolt
Simpson Strong-Tie SSTB24LHDG Features
- Identification on the bolt head showing embedment angle and model
- Offset angle reduces side bursting, and provides more concrete cover
- Rolled thread for higher tensile capacity
- Stamped embedment line aids installation
- Available in HDG for additional corrosion resistance
Simpson Strong-Tie SSTB24LHDG Applications
- Concrete anchoring for structural holdowns
- Suitable for monolithic and two-pour concrete applications
- Ideal for use in grout-filled concrete masonry units (GFCMU)

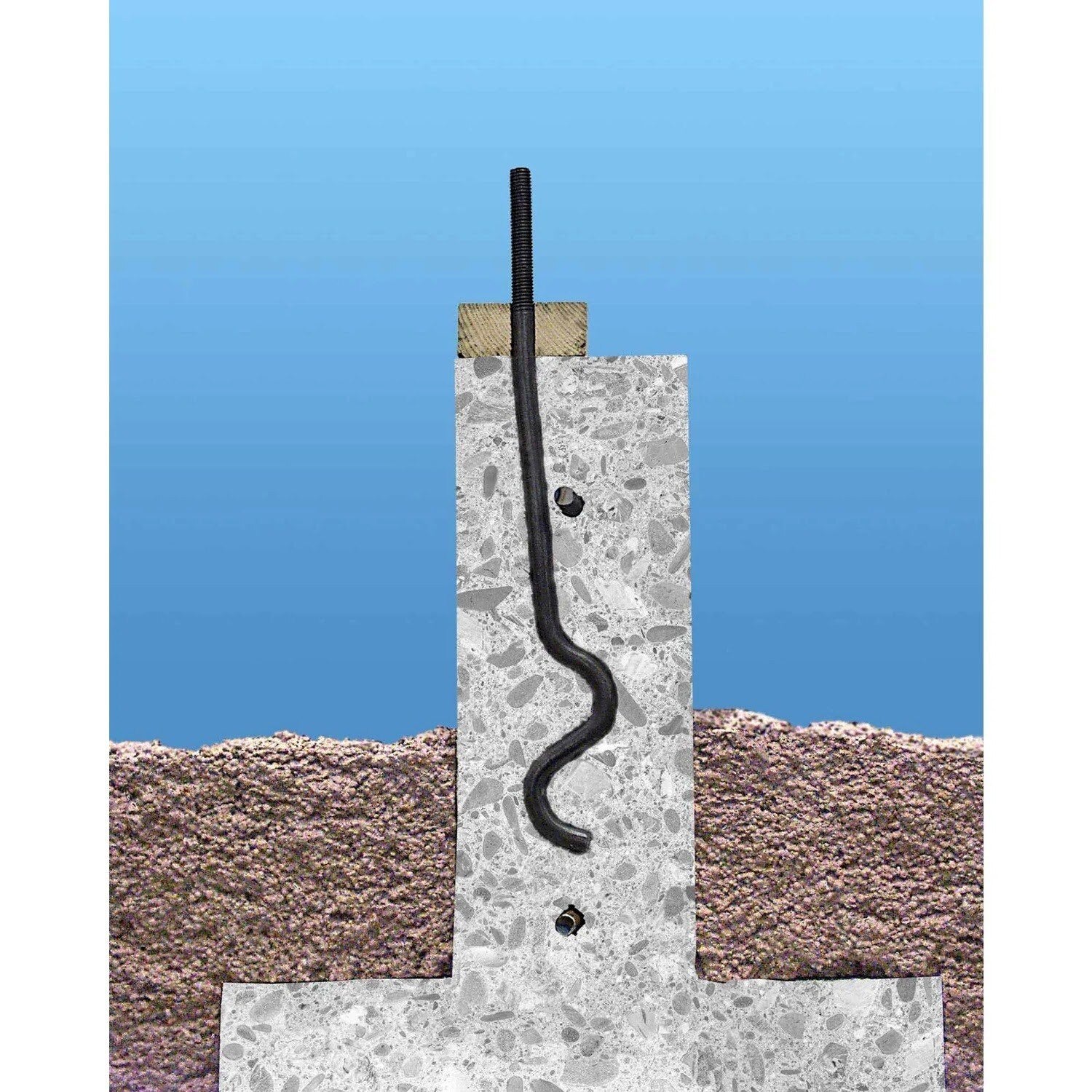

Simpson Strong-Tie SSTB24LHDG Installation Overview
- Install SSTB before the concrete pour using AnchorMate anchor bolt holders.
- Ensure minimum concrete compressive strength of 2,500 psi.
- Follow plan view details for proper placement.
- Use overtapped nuts or couplers for HDG anchors as per ASTM A563.
- Rebar is not required to be tied to the SSTB.
Simpson Strong-Tie SSTB24LHDG Specifications
Diameter | 5/8" |
Finish | Hot Dip Galvanized |
Length | 28-1/8" |
Material | Steel |
Thread length | 6" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
