Simpson Anchors | SKU:
SSTB28-R
Simpson Strong-Tie SSTB28-R Strong-Wall (7/8" x 29-7/8") Strong-Wall Anchor Bolt
$39.94
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie SSTB28-R Description

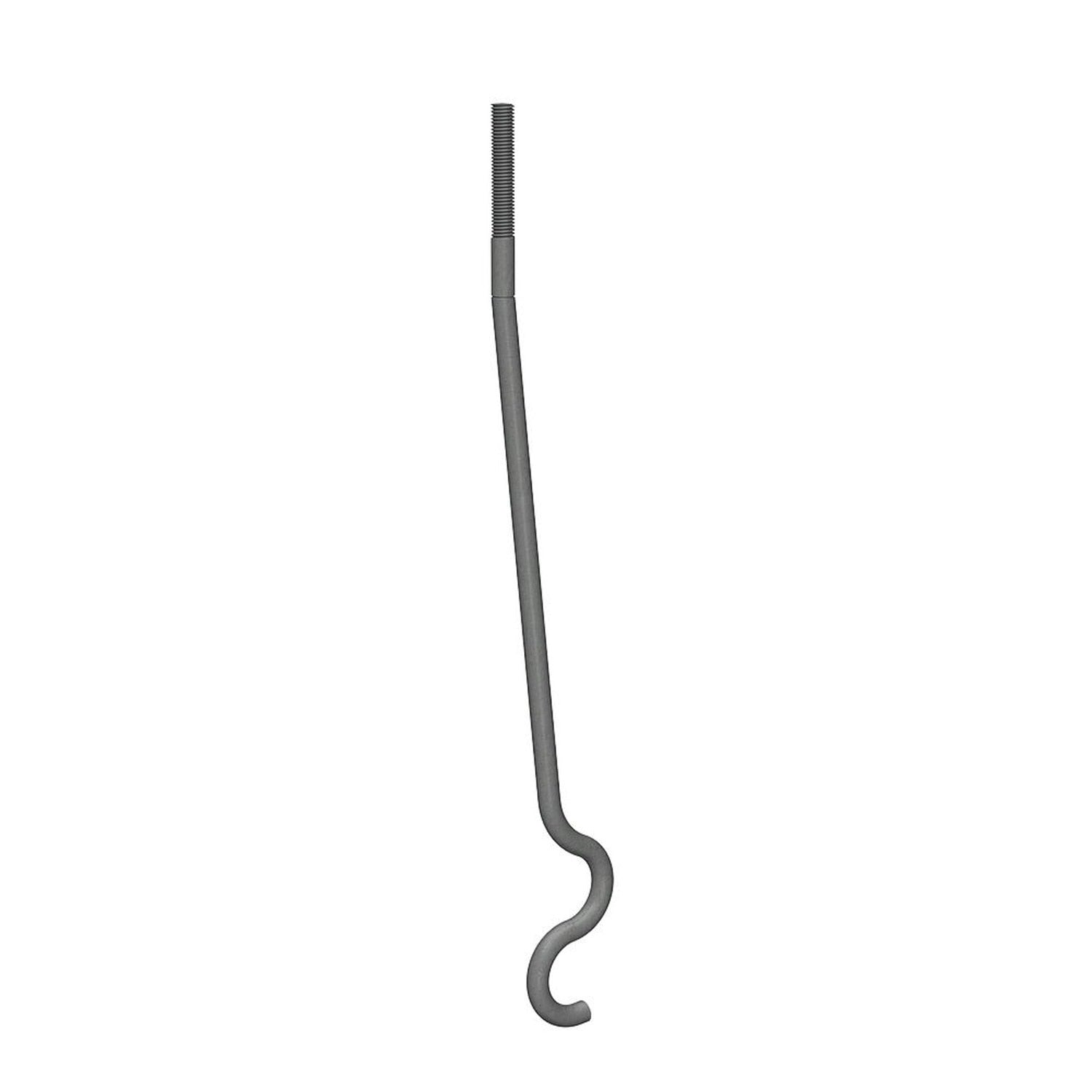

The SSTB28-R Anchor Bolt is designed for concrete applications, offering high tensile capacity and corrosion resistance.
Simpson Strong-Tie SSTB28-R Includes
- (1) Simpson Anchors SSTB28-R
Simpson Strong-Tie SSTB28-R Features

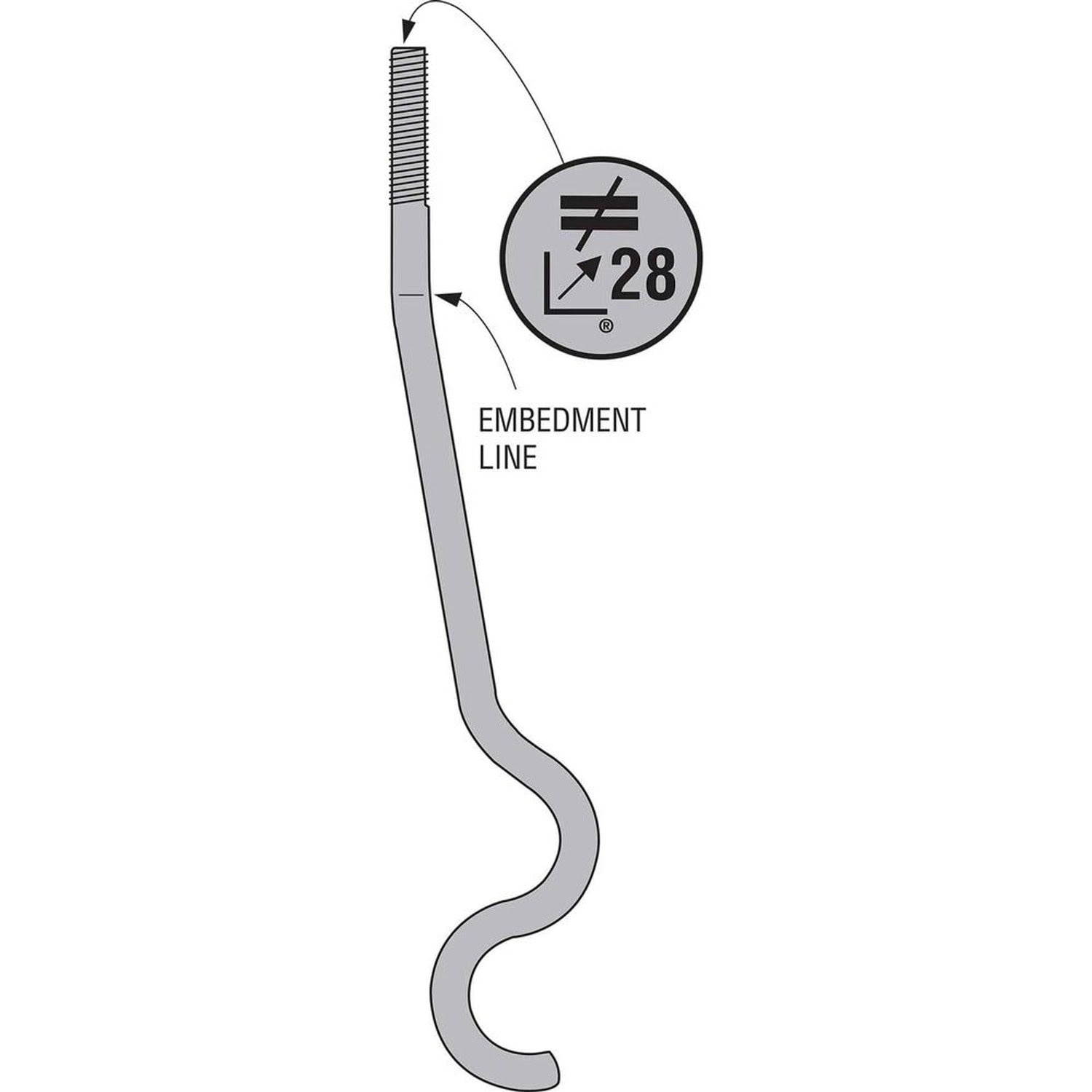

- Identification on the bolt head showing embedment angle and model
- Offset angle reduces side bursting, and provides more concrete cover
- Rolled thread for higher tensile capacity
- Stamped embedment line aids installation
- Available in HDG for additional corrosion resistance
Simpson Strong-Tie SSTB28-R Applications
- Concrete anchoring for structural support
- Suitable for monolithic and two-pour concrete applications
- Used in construction requiring high tensile capacity
Simpson Strong-Tie SSTB28-R Installation Overview
- Install SSTB before the concrete pour using AnchorMate anchor bolt holders
- Minimum concrete compressive strength is 2,500 psi
- Order SSTBL models for longer thread length
- Use overtapped products for HDG SSTB anchors
Simpson Strong-Tie SSTB28-R Specifications
| Material | ASTM F-1554, Grade 36 |
| Finish | None. May be ordered HDG |
| Application | Concrete |
| Value Engineered | TRUE |
