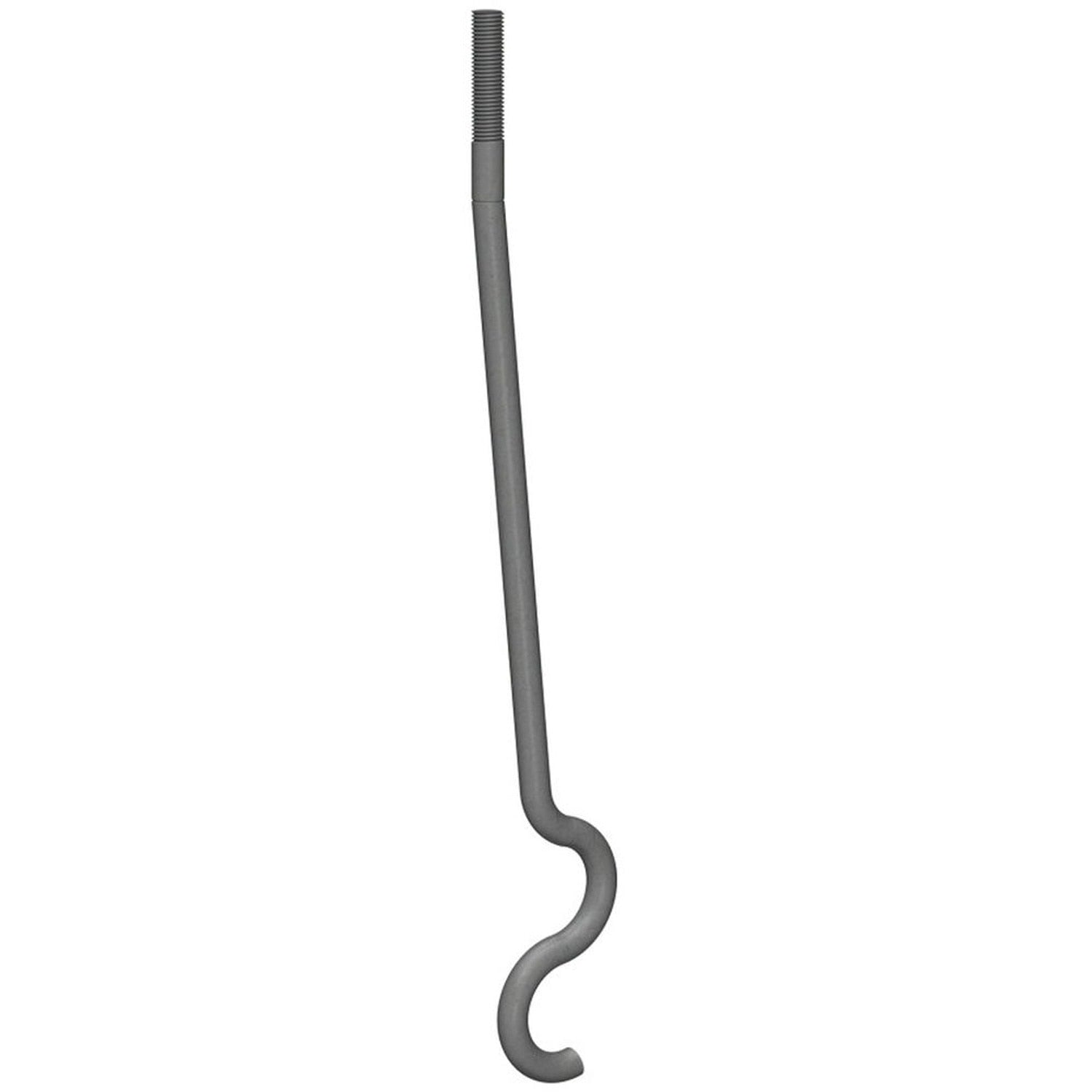

Simpson SSTB28 Description
The SSTB28 Anchor Bolt is designed for concrete applications, featuring high tensile capacity and corrosion resistance options.
Simpson SSTB28 Includes
- (1) Anchor Bolt for Concrete Applications
Simpson SSTB28 Features

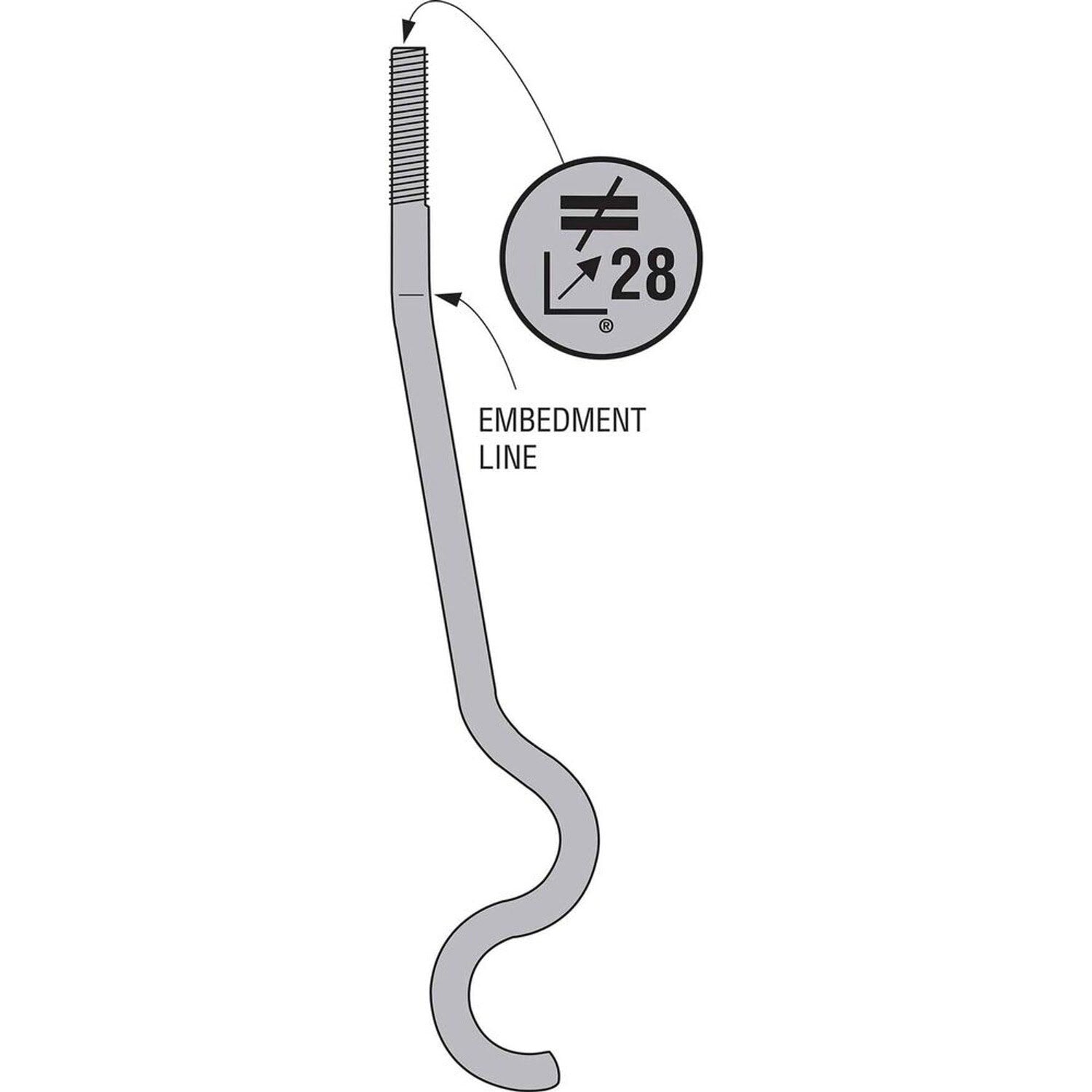

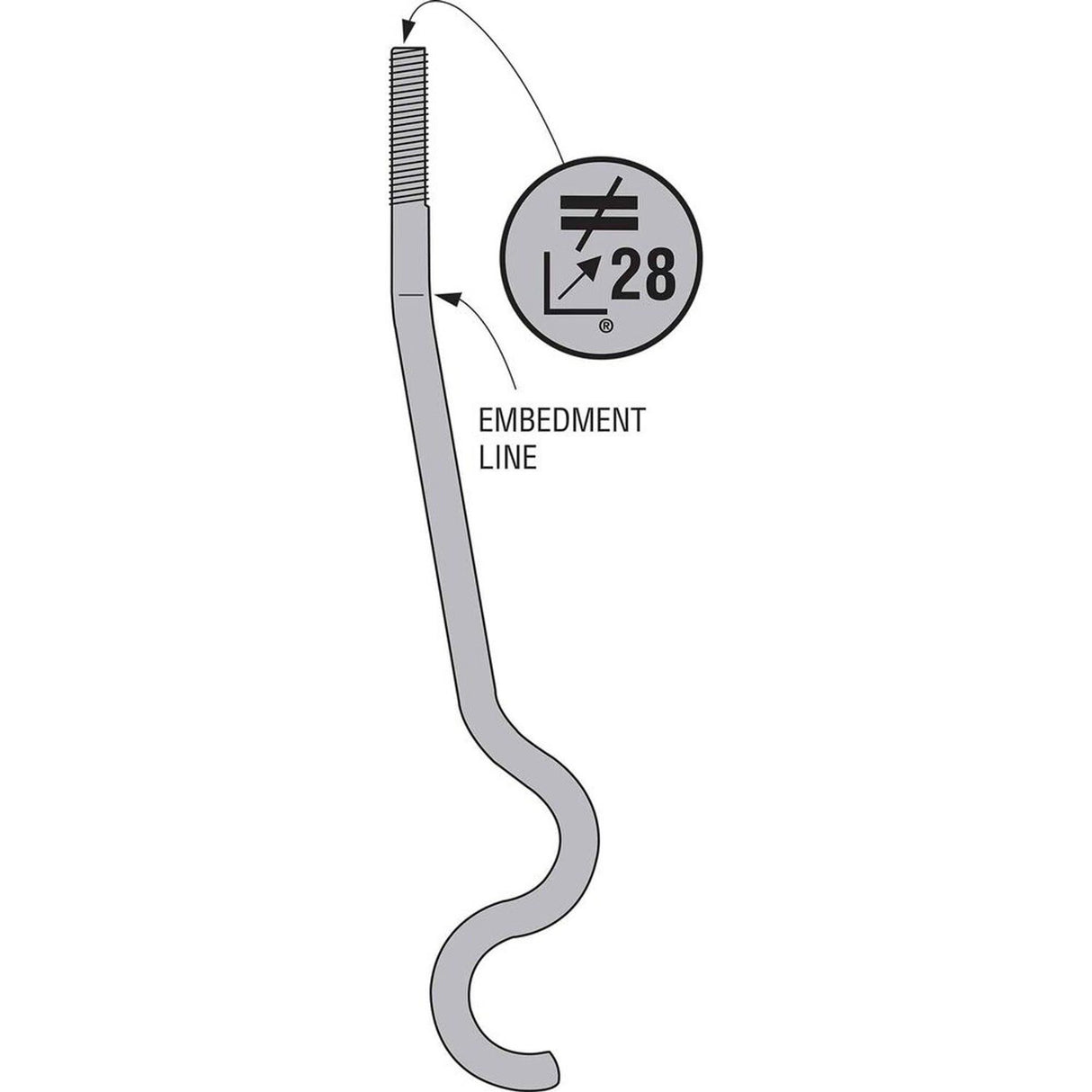

- Identification on the bolt head showing embedment angle and model
- Offset angle reduces side bursting, and provides more concrete cover
- Rolled thread for higher tensile capacity
- Stamped embedment line aids installation
- Available in HDG for additional corrosion resistance
Simpson SSTB28 Applications
- Concrete foundations requiring secure anchoring
- Monolithic and two-pour concrete applications

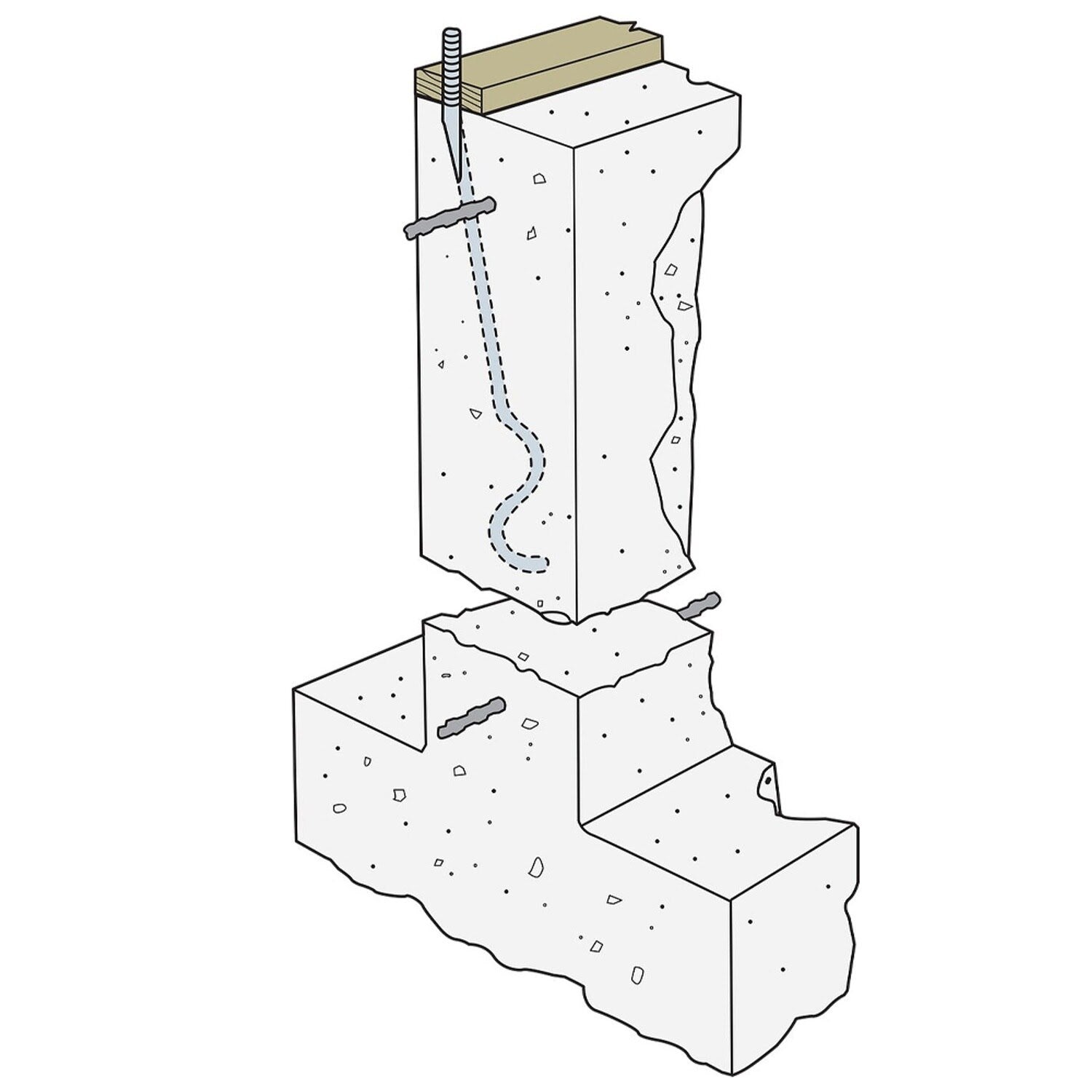

- Grout-filled concrete masonry units (GFCMU) installations
Simpson SSTB28 Installation Overview
- Verify dimensions and alignment of anchor bolt and concrete structure.
- Install SSTB before the concrete pour using AnchorMate anchor bolt holders.
- Ensure minimum concrete compressive strength of 2,500 psi.
- Follow plan view detail for proper placement.
- Use standard nuts, couplers, and washers as required.
Simpson SSTB28 Specifications
| Material | ASTM F-1554, Grade 36 |
| Finish | None. May be ordered HDG. |
| Application | Concrete |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
