Simpson Anchors | SKU:
SSTB28HDG

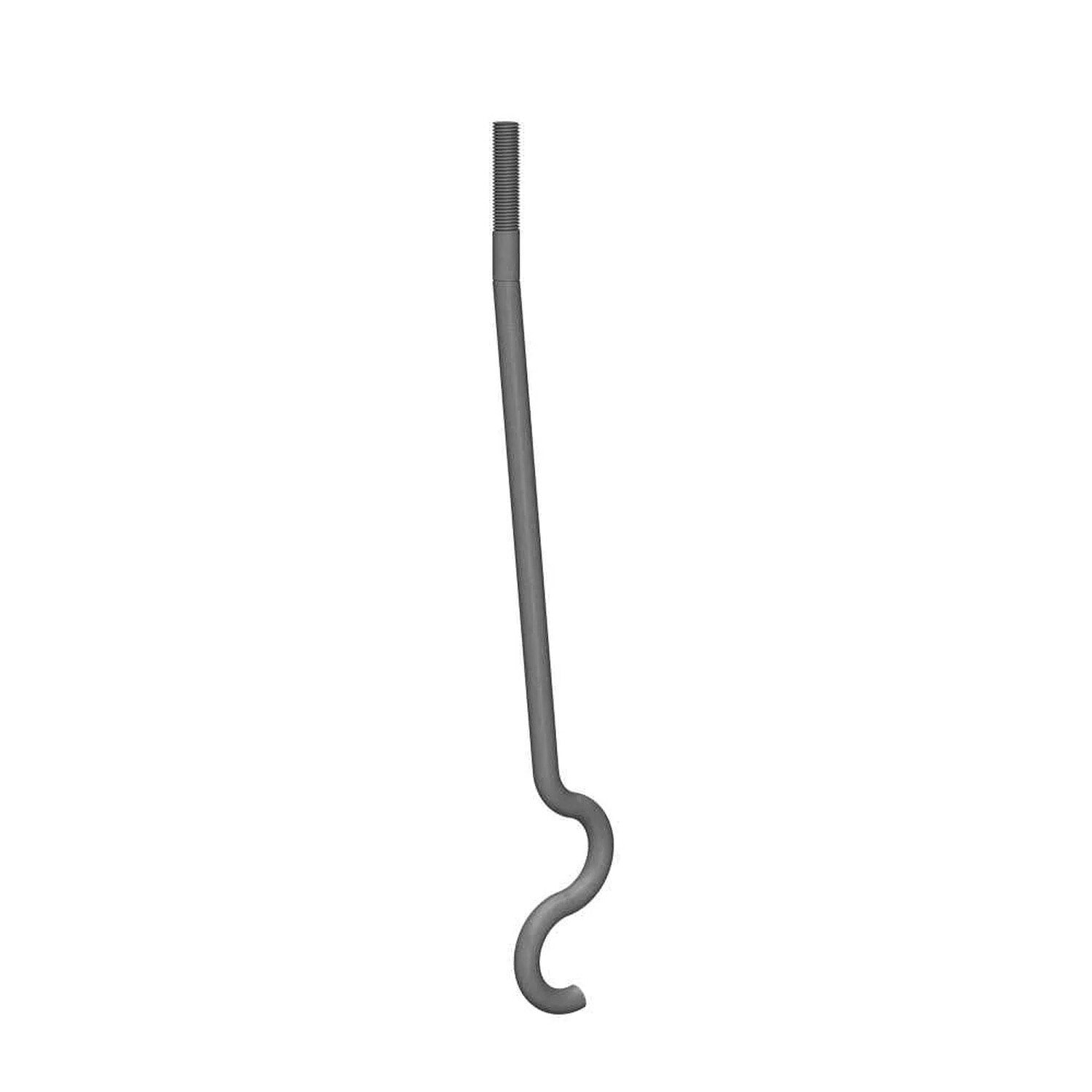

Simpson Strong-Tie SSTB28HDG (7/8 in. x 29-7/8 in.) Hot-Dip Galvanized Anchor Bolt
$56.16
$76.86
Unit price
/
Unavailable
NOTE: This item is ineligible for free shipping
Description
Description
Simpson SSTB28HDG Description
The Simpson Strong-Tie SSTB28HDG Anchor Bolt is designed for concrete applications, offering high tensile capacity and corrosion resistance.
Simpson SSTB28HDG Includes
- (1) Hot-Dip Galvanized Anchor Bolt
Simpson SSTB28HDG Features
- Identification on the bolt head showing embedment angle and model
- Offset angle reduces side bursting and provides more concrete cover
- Rolled thread for higher tensile capacity
- Stamped embedment line aids installation
- Available in HDG for additional corrosion resistance
Simpson SSTB28HDG Applications
- Concrete anchoring for structural support
- Securing holdowns in concrete foundations
- Use in monolithic and two-pour concrete applications

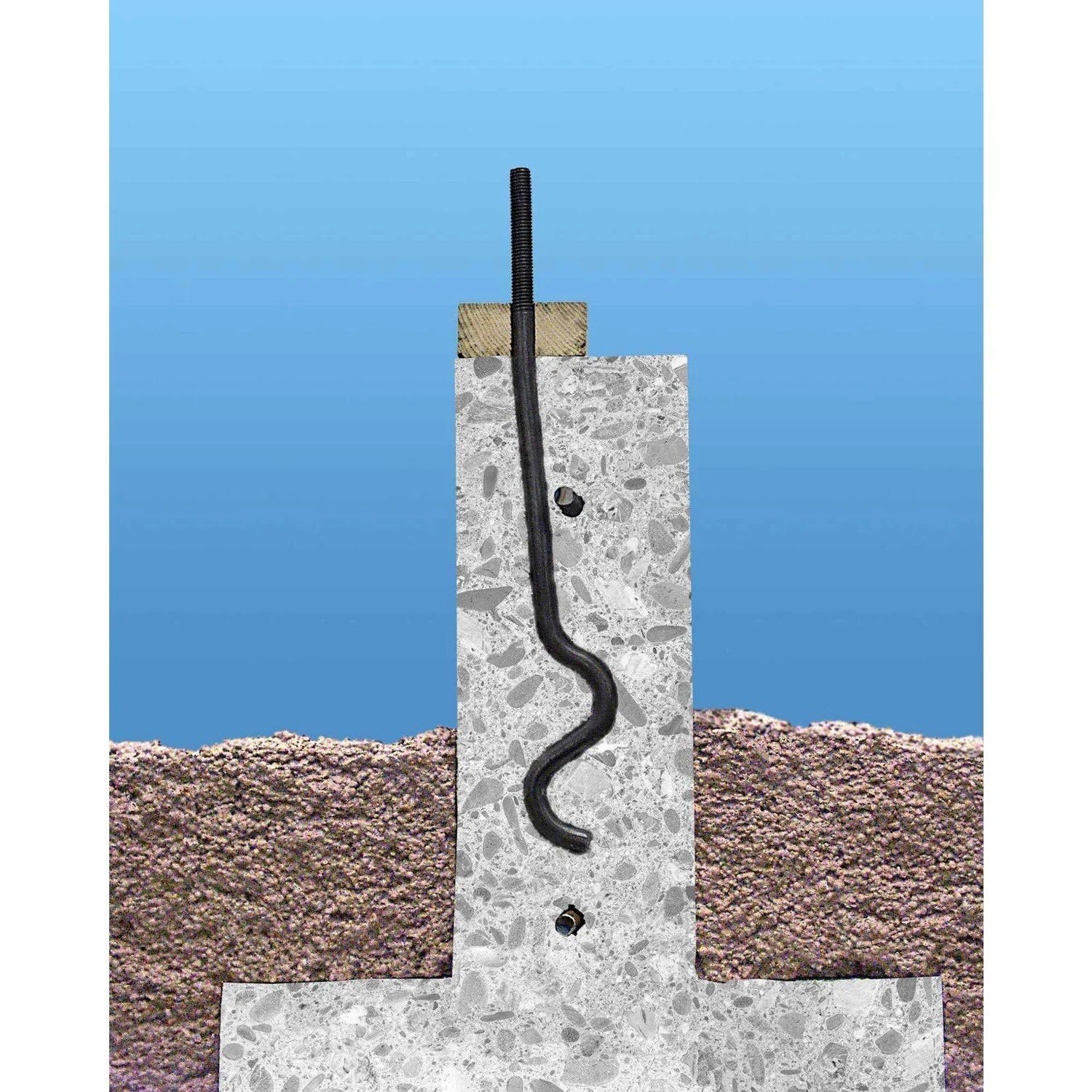

Simpson SSTB28HDG Installation Overview
- Install SSTB before the concrete pour using AnchorMate anchor bolt holders
- Ensure minimum concrete compressive strength of 2,500 psi
- Follow plan view detail for proper alignment and embedment
- Use overtapped nuts or couplers for HDG anchors as per ASTM A563
Simpson SSTB28HDG Specifications
| Material | ASTM F-1554, Grade 36 |
| Finish | Hot Dip Galvanized |
| Diameter | 7/8" |
| Length | 29-7/8" |
| Thread length | 3-1/2" |
| Weight | 4.5 lb |
NOTE: Ensure the correct fasteners are installed in the correct position to achieve published load values
