Simpson Anchors | SKU:
SSTB28L

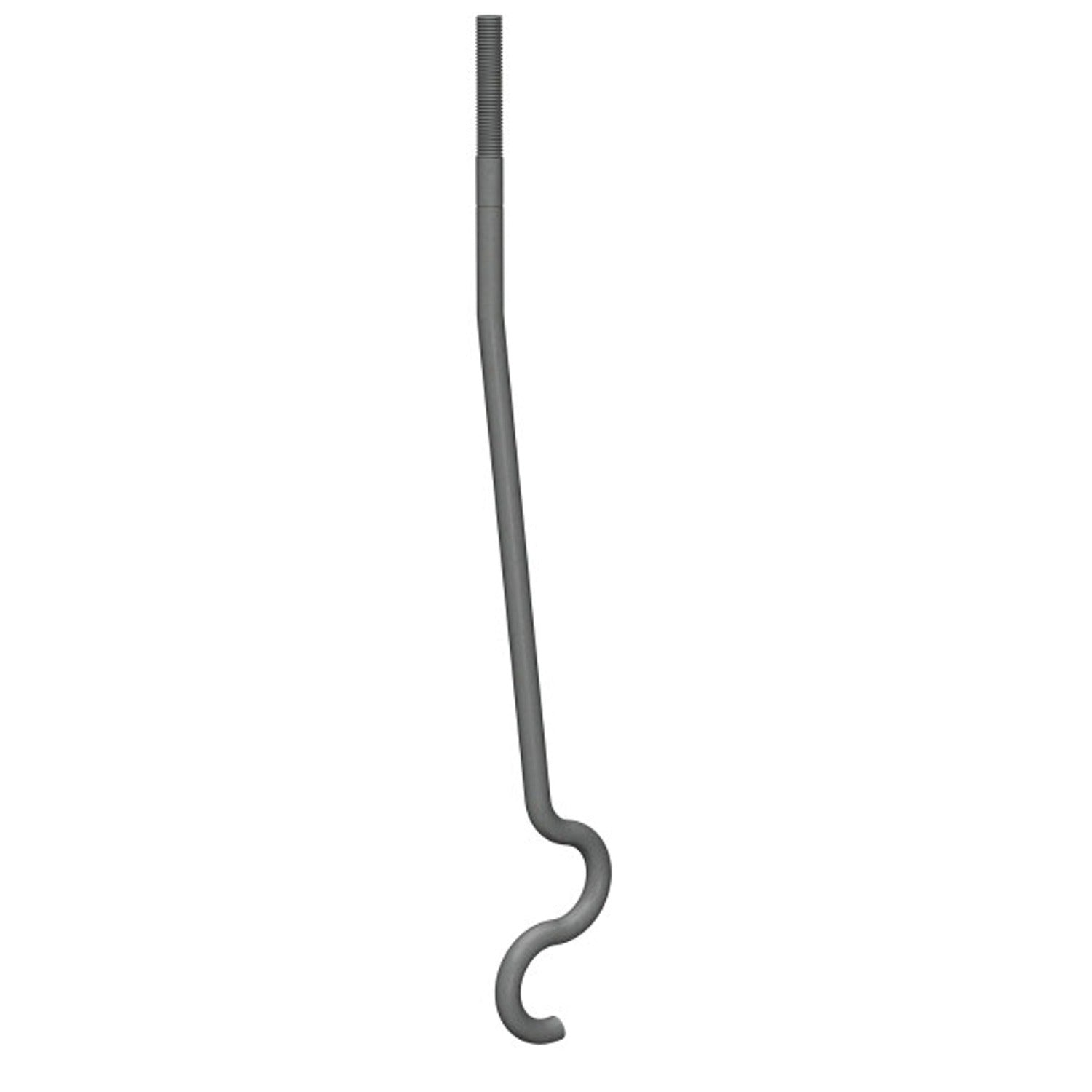

Simpson Strong-Tie SSTB28L (7/8" x 32-7/8") Anchor Bolt for Concrete Applications
$36.58
$52.61
Unit price
/
Unavailable
NOTE: This item is ineligible for free shipping
Description
Description
Simpson SSTB28L Description
The SSTB28L Anchor Bolt is designed for concrete applications, featuring high tensile capacity and corrosion resistance options.
Simpson SSTB28L Includes
- (1) Anchor Bolt for Concrete Applications
Simpson SSTB28L Features

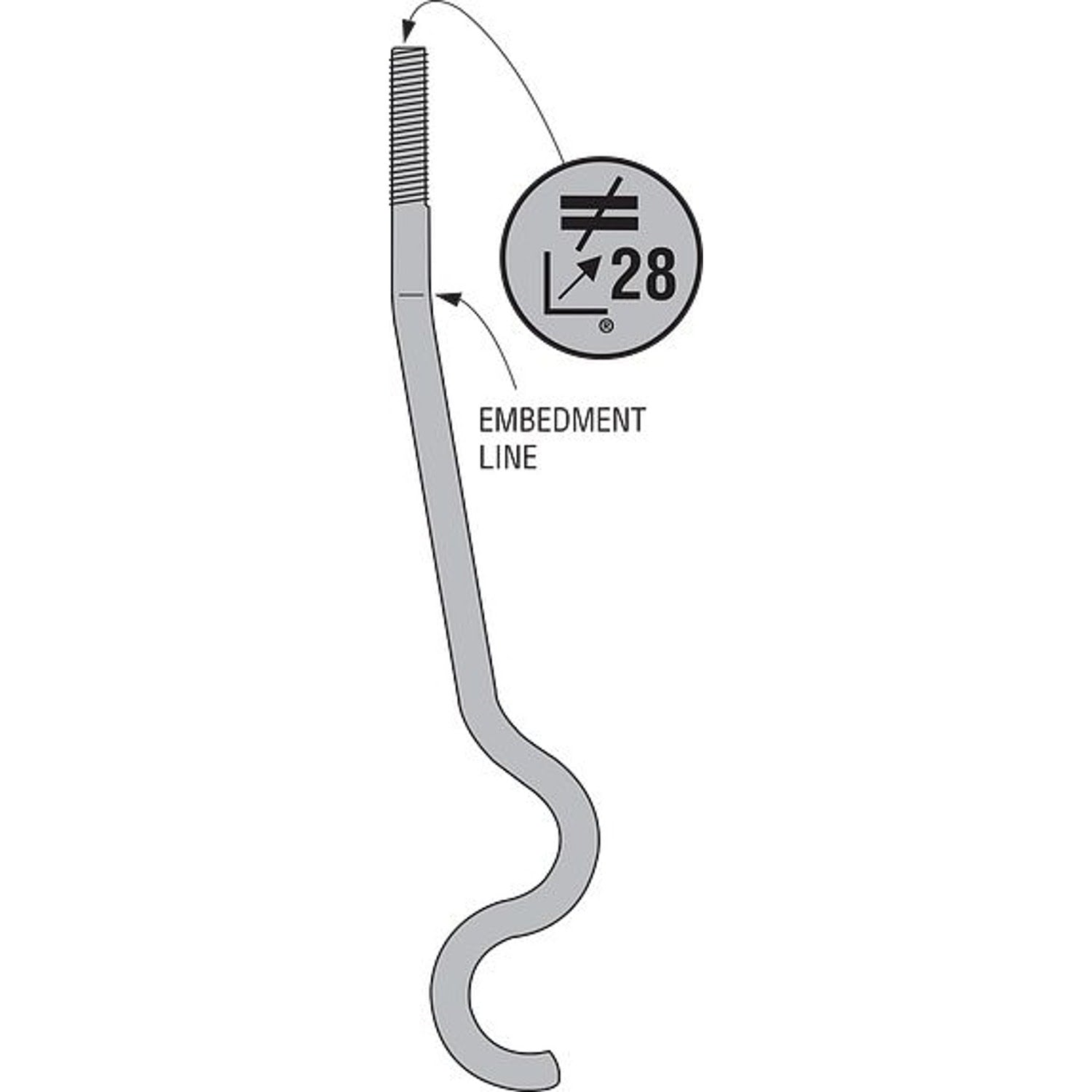

- Identification on the bolt head showing embedment angle and model
- Offset angle reduces side bursting and provides more concrete cover
- Rolled thread for higher tensile capacity
- Stamped embedment line aids installation
- Available in HDG for additional corrosion resistance
Simpson SSTB28L Applications
- Concrete foundations requiring secure anchoring

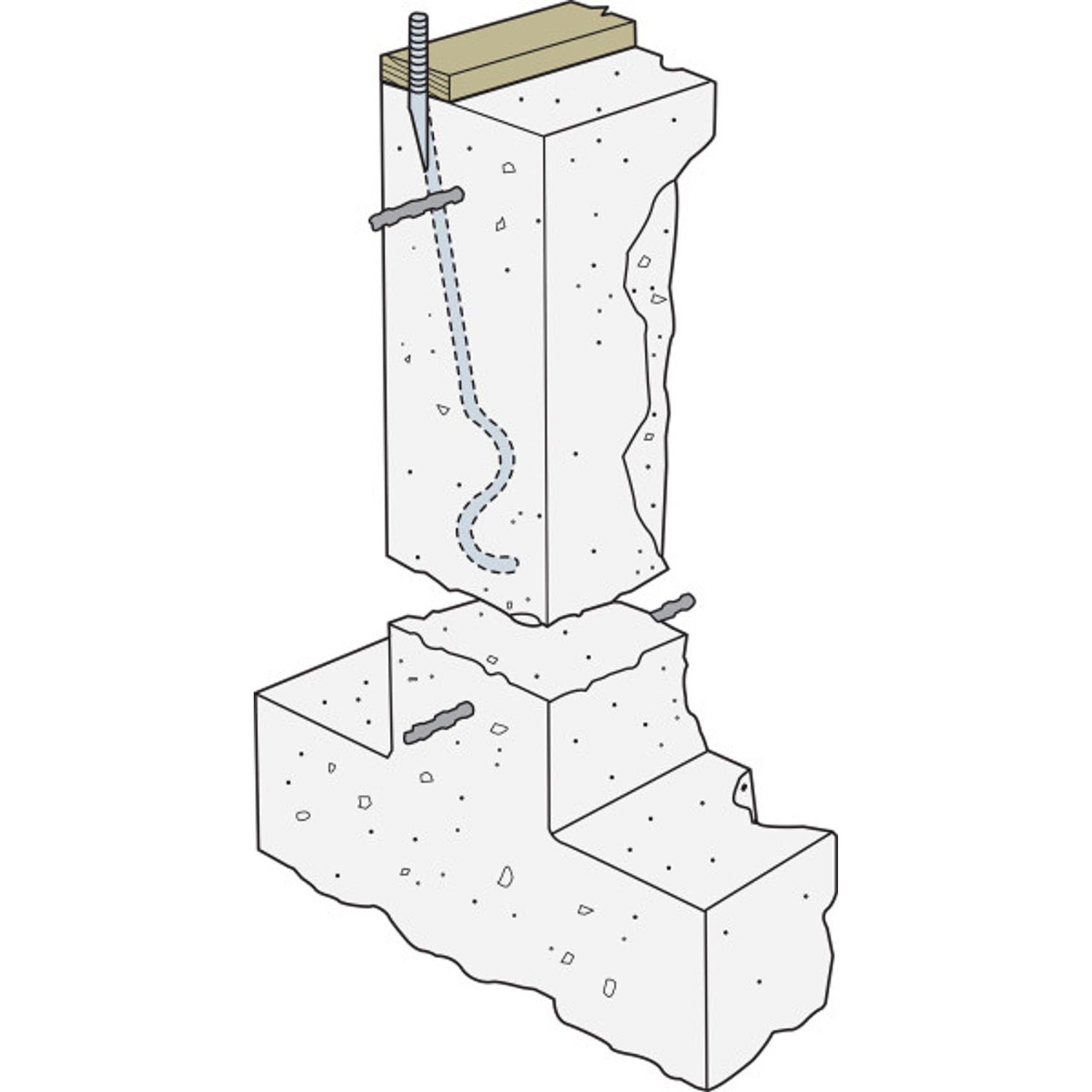

- Monolithic and two-pour concrete applications
- Grout-filled concrete masonry units (GFCMU) installations
Simpson SSTB28L Installation Overview
- Verify dimensions and alignment of anchor bolt and concrete structure.
- Install SSTB before the concrete pour using AnchorMate anchor bolt holders.
- Ensure minimum concrete compressive strength of 2,500 psi.
- Follow plan view detail for proper placement.
- Use overtapped products for HDG SSTB anchors as required.
Simpson SSTB28L Specifications
| Material | ASTM F-1554, Grade 36 |
| Finish | None. May be ordered HDG. |
| Application | Concrete |
| Value Engineered | true |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
