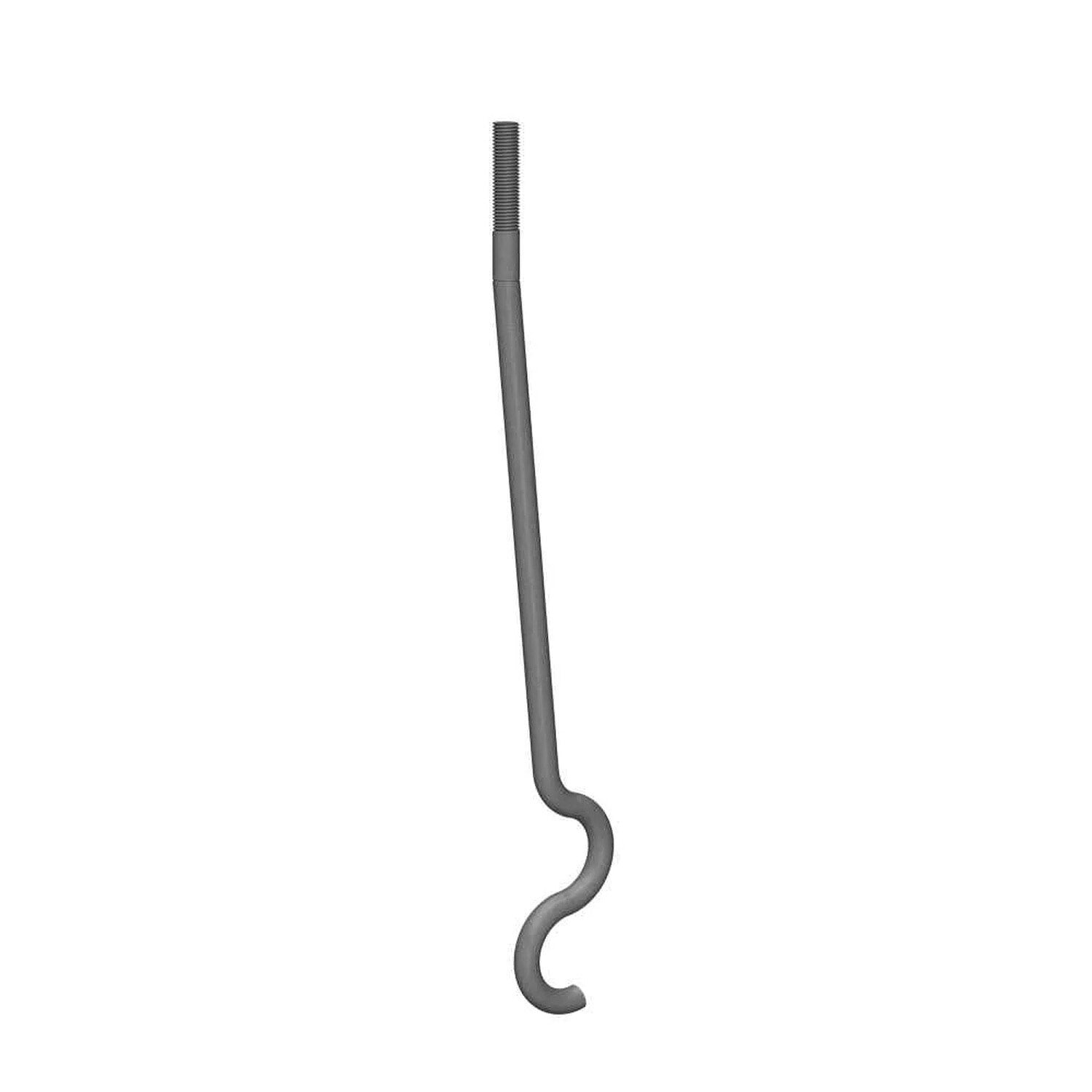

Simpson Strong-Tie SSTB28LHDG (7/8" x 32-7/8") Hot-Dip Galvanized Anchor Bolt
Description
Description
Simpson Strong-Tie SSTB28LHDG Description
The SSTB Anchor Bolt is designed for maximum performance in concrete applications, featuring a hot-dip galvanized finish for enhanced corrosion resistance.
Simpson Strong-Tie SSTB28LHDG Includes
- (1) SSTB Anchor Bolt
Simpson Strong-Tie SSTB28LHDG Features
- Identification on the bolt head showing embedment angle and model
- Offset angle reduces side bursting, and provides more concrete cover
- Rolled thread for higher tensile capacity
- Stamped embedment line aids installation
- Available in HDG for additional corrosion resistance

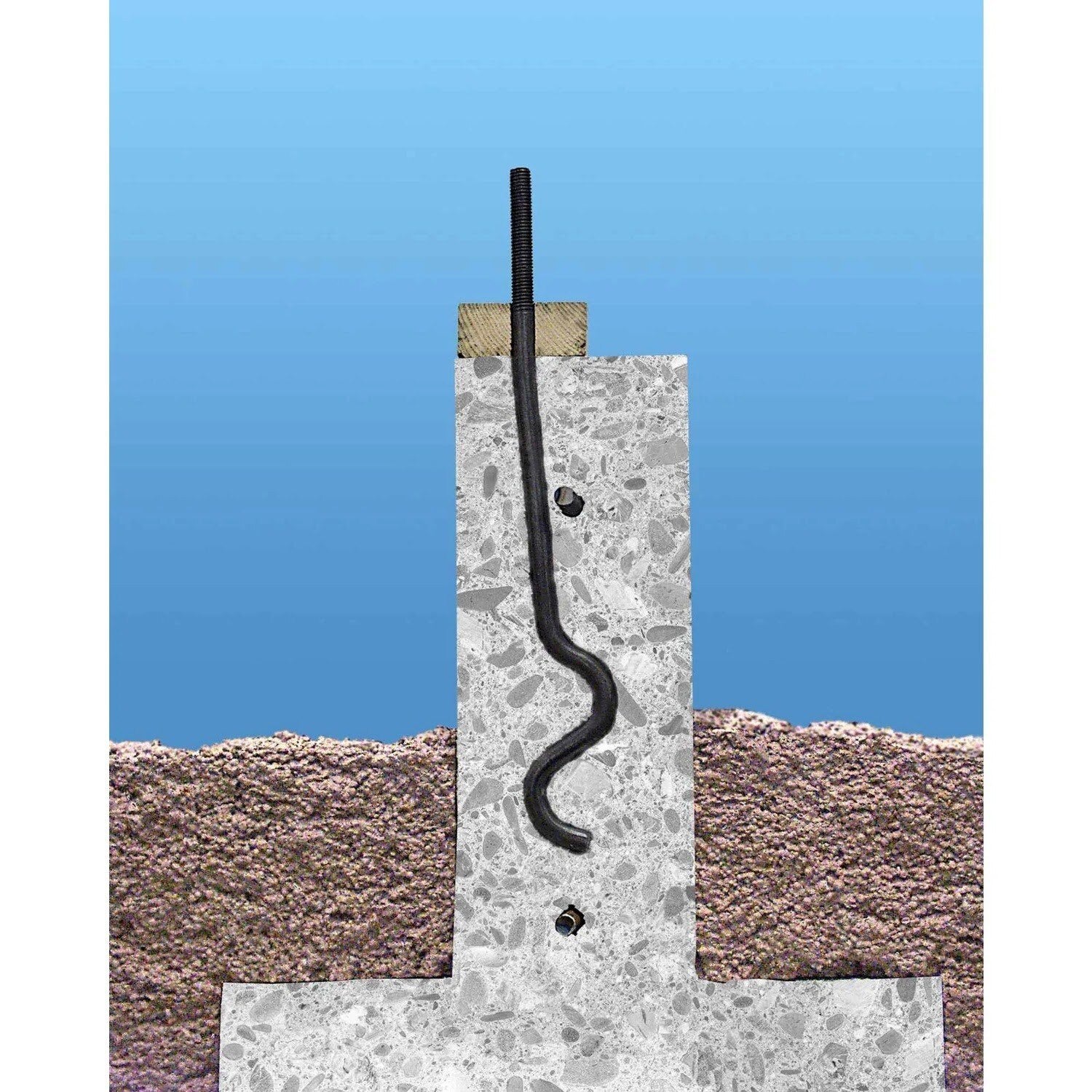

Simpson Strong-Tie SSTB28LHDG Applications
- Concrete anchoring for structural holdowns
- Suitable for monolithic and two-pour concrete applications
- Ideal for use in grout-filled concrete masonry units (GFCMU)
Simpson Strong-Tie SSTB28LHDG Installation Overview
- Install SSTB before the concrete pour using AnchorMate anchor bolt holders.
- Minimum concrete compressive strength is 2,500 psi.
- Chase the threads on HDG SSTB anchors to use standard nuts or couplers.
- Follow plan view details for proper installation.
Simpson Strong-Tie SSTB28LHDG Specifications
Diameter | 7/8" |
Finish | Hot Dip Galvanized |
Length | 32-7/8" |
Material | Steel |
Thread length | 6-1/2" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
