Simpson Anchors | SKU:
SSTB34HDG

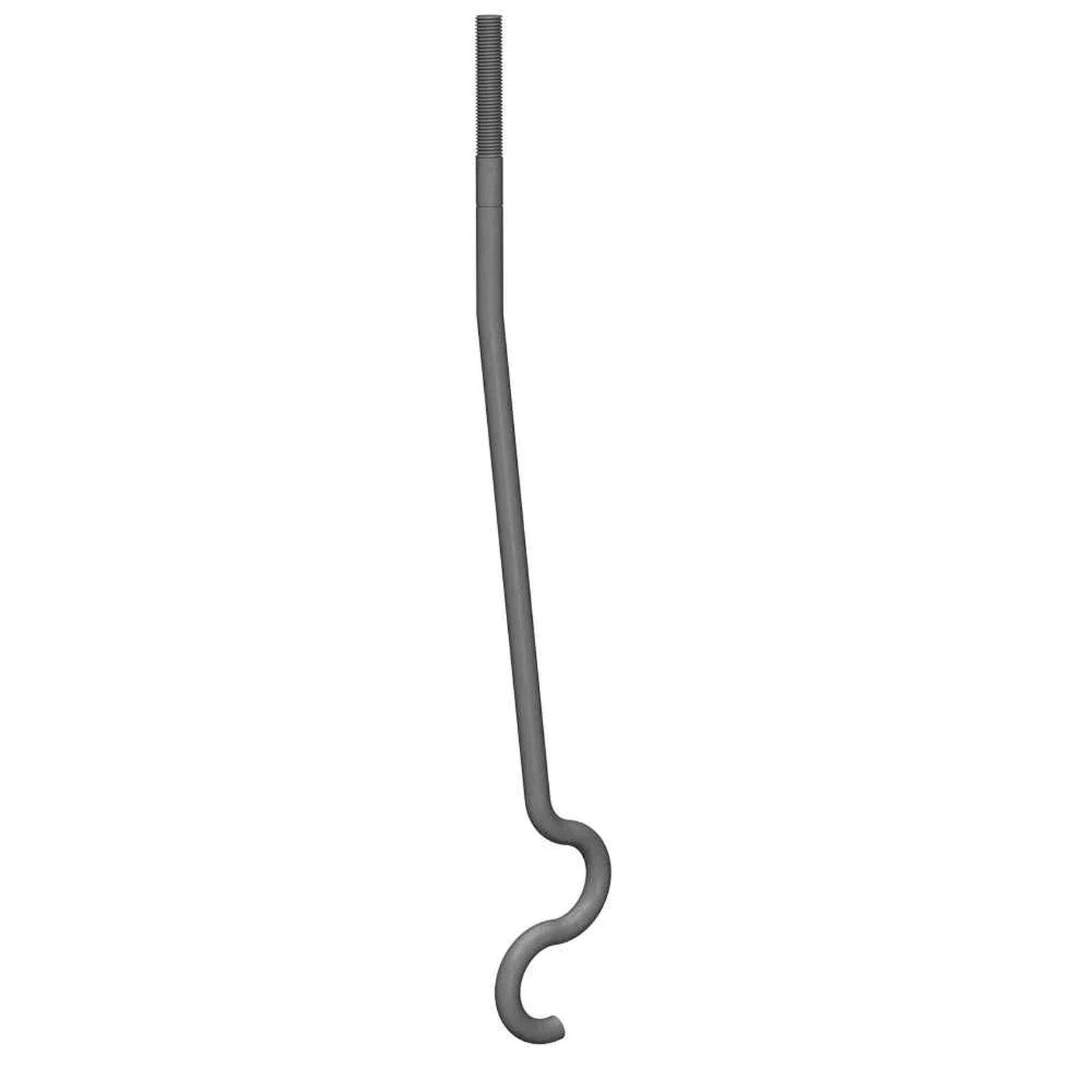

Simpson Strong-Tie SSTB34HDG (7/8 in. x 34-7/8 in.) Hot-Dip Galvanized Anchor Bolt
$65.68
$89.89
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie SSTB34HDG Description
The Simpson Strong-Tie SSTB34HDG Anchor Bolt is designed for concrete applications, offering high performance and corrosion resistance.
Simpson Strong-Tie SSTB34HDG Includes
- (1) 7/8" x 34-7/8" SSTB Anchor Bolt
Simpson Strong-Tie SSTB34HDG Features
- Identification on the bolt head showing embedment angle and model
- Offset angle reduces side bursting, and provides more concrete cover
- Rolled thread for higher tensile capacity
- Stamped embedment line aids installation
- Available in HDG for additional corrosion resistance
Simpson Strong-Tie SSTB34HDG Applications
- Concrete anchoring for structural holdowns
- Suitable for monolithic and two-pour concrete applications
- Used in construction requiring high tensile capacity and corrosion resistance
Simpson Strong-Tie SSTB34HDG Installation Overview

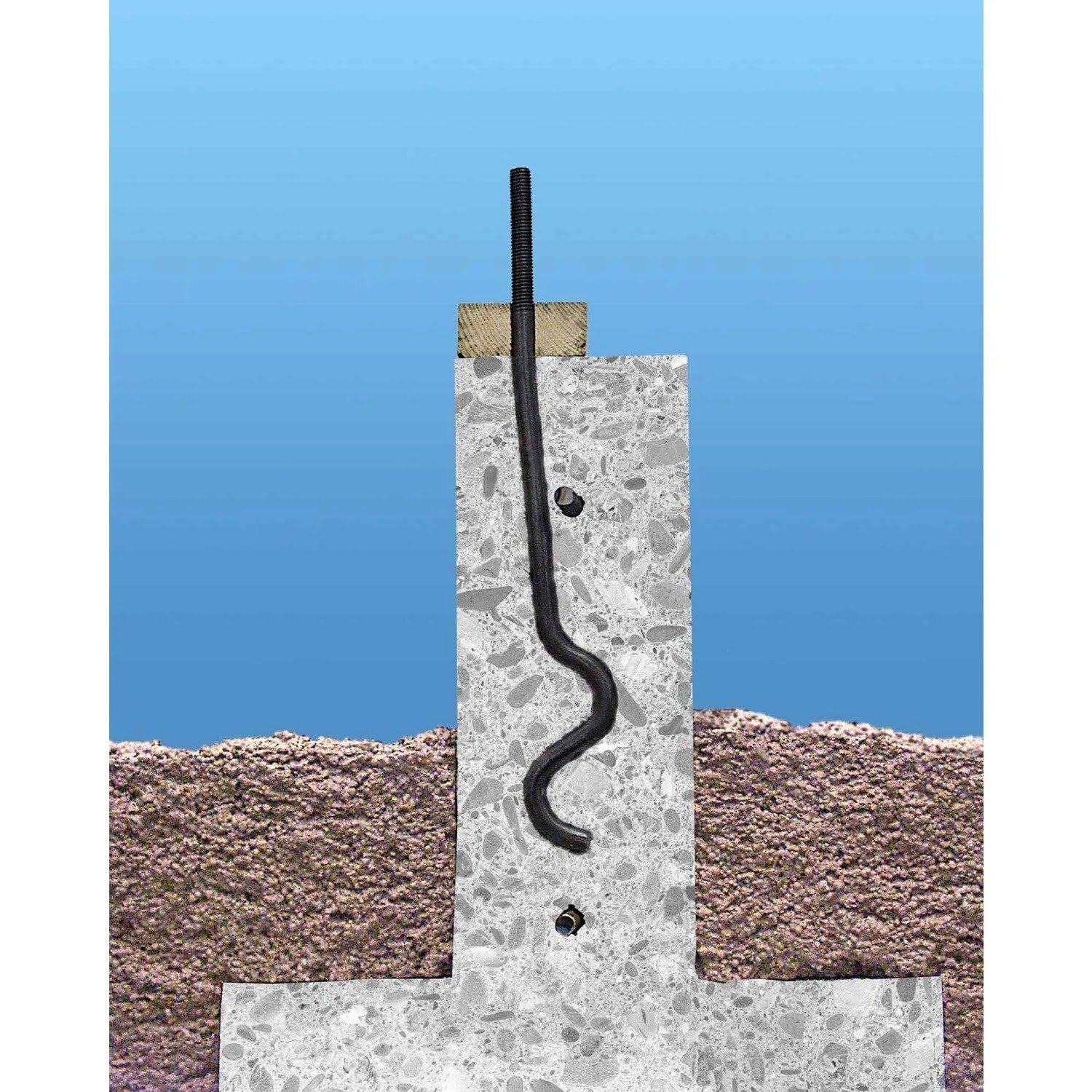

- Install SSTB before the concrete pour using AnchorMate anchor bolt holders.
- Ensure minimum concrete compressive strength of 2,500 psi.
- Use overtapped nuts or couplers for HDG SSTB anchors as per ASTM A563.
- Follow plan view details for proper alignment and embedment.
- Rebar is not required to be tied to the SSTB.
Simpson Strong-Tie SSTB34HDG Specifications
| Diameter | 7/8" |
| Finish | Hot Dip Galvanized |
| Length | 34-7/8" |
| Material | Steel |
| Thread length | 4-1/2" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
