Simpson Strong-Tie SSW15-1KT Description
The Steel First-Floor Wall Connection Kit for 15 in. Walls ensures a simplified installation and superior performance for steel strong-wall systems.
Simpson Strong-Tie SSW15-1KT Includes
- (1) Shear-Transfer Plate with #14 Self-Drilling Screws
- (2) 1" x 18" Threaded Rods F1554 Grade 36
- (2) Coupler Nuts
- (2) Heavy Hex Nuts
- Installation Instructions
Simpson Strong-Tie SSW15-1KT Features
- Ensures a simplified installation to provide superior performance
- Minimizes modifications to wood floor systems
Simpson Strong-Tie SSW15-1KT Applications
- Cold-Formed Steel applications

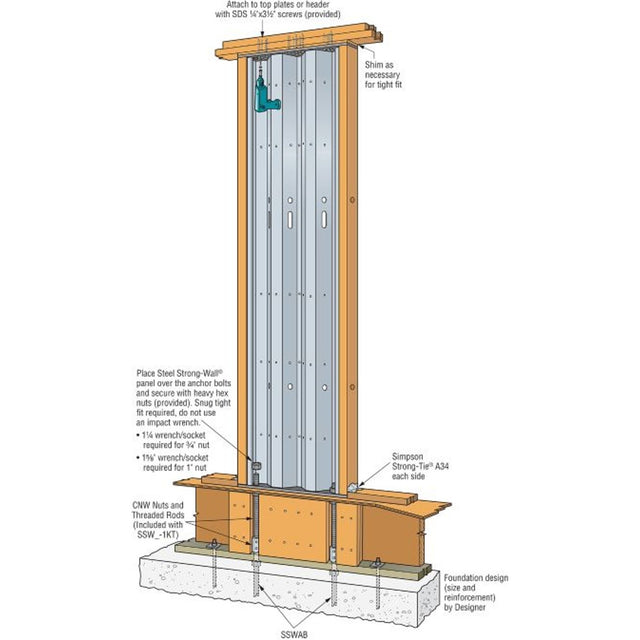

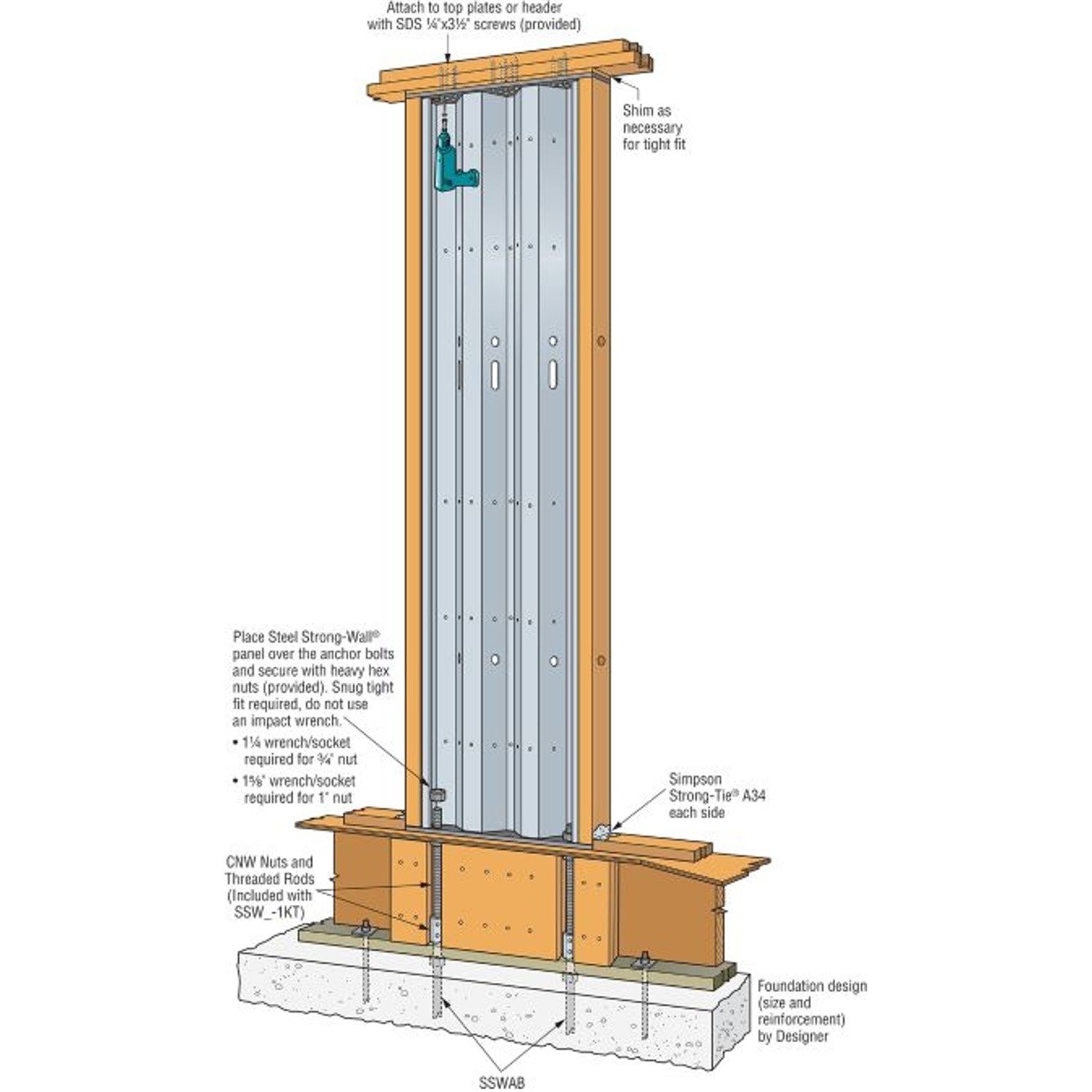

Simpson Strong-Tie SSW15-1KT Installation Overview
- Drill or notch subfloor to allow compression nuts to sit flush with underside of Steel Strong-Wall (SSW)
- Assemble coupler nuts and compression nuts to threaded rods
- Attach threaded rod assembly to anchor bolts in the concrete foundation
- Install solid blocking under center and each end of SSW per designer
- Place SSW over threaded rod and secure with anchor nuts included in SSW kit
- Attach shear transfer plate to SSW with supplied #14 self-drilling screws, and to rim joist with 0.148 in. x 3 in. nails
- Complete assembly with A34 angles (sold separately) per designer
- Attach SSW to top plates or header with Strong-Drive SDS screws (supplied)
Simpson Strong-Tie SSW15-1KT Specifications
| Application | Cold-Formed Steel |
| API Approval | Approved - Full |
| Wall Width | 15 in. |
NOTE: Two heavy hex nuts included with each wall.
