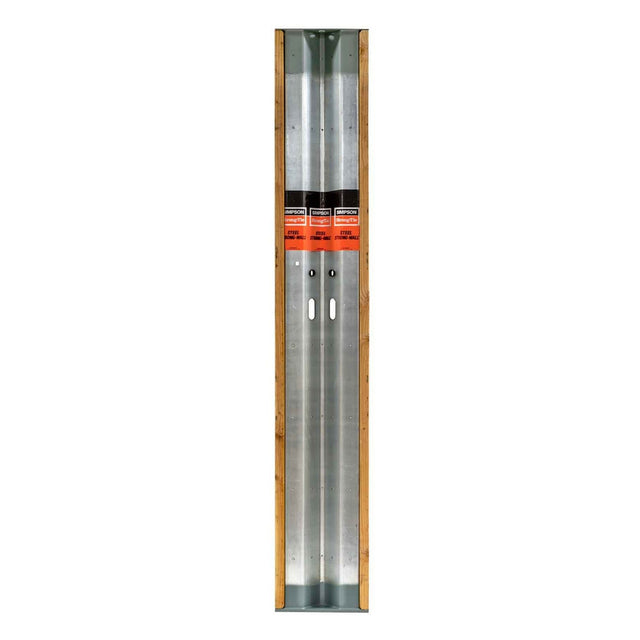

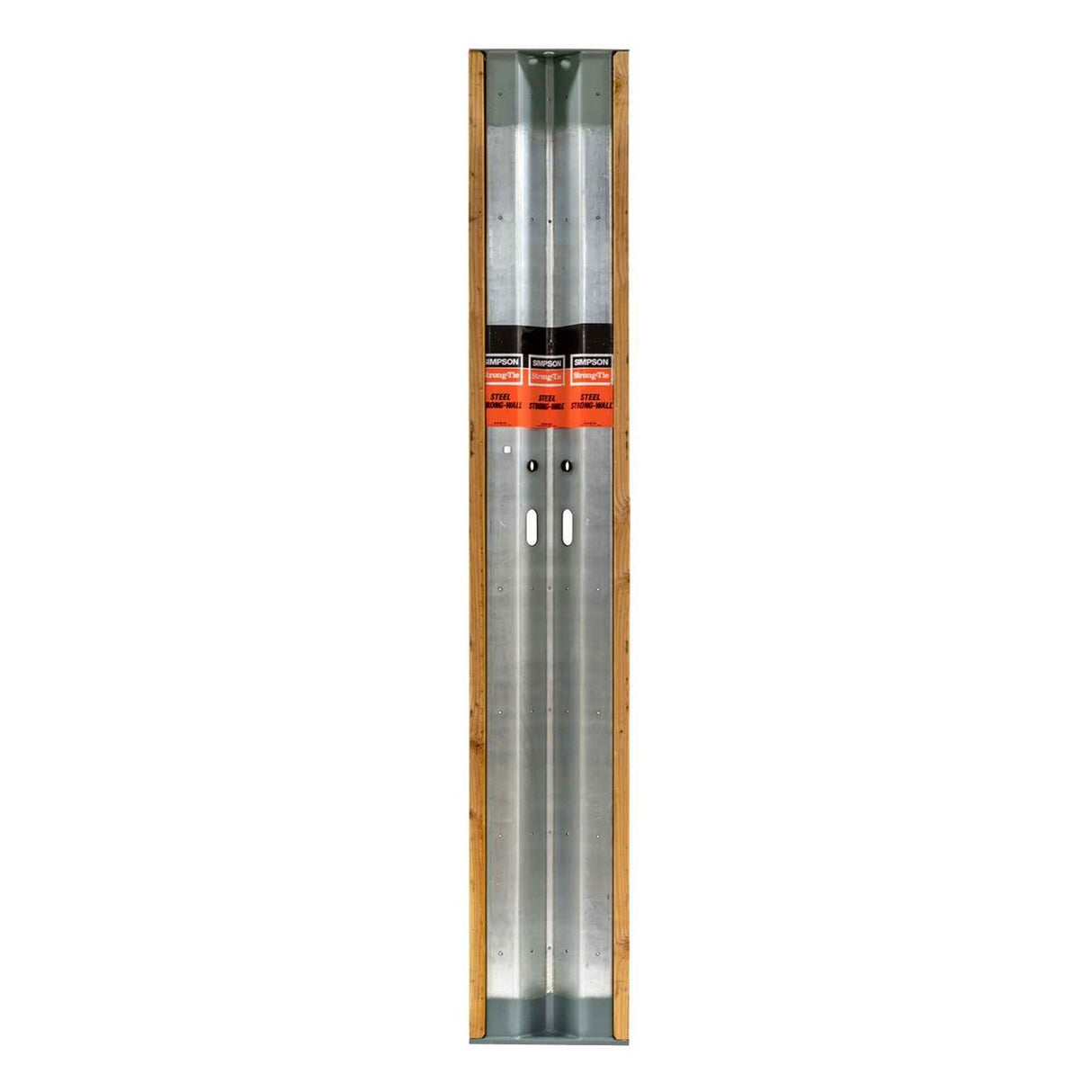

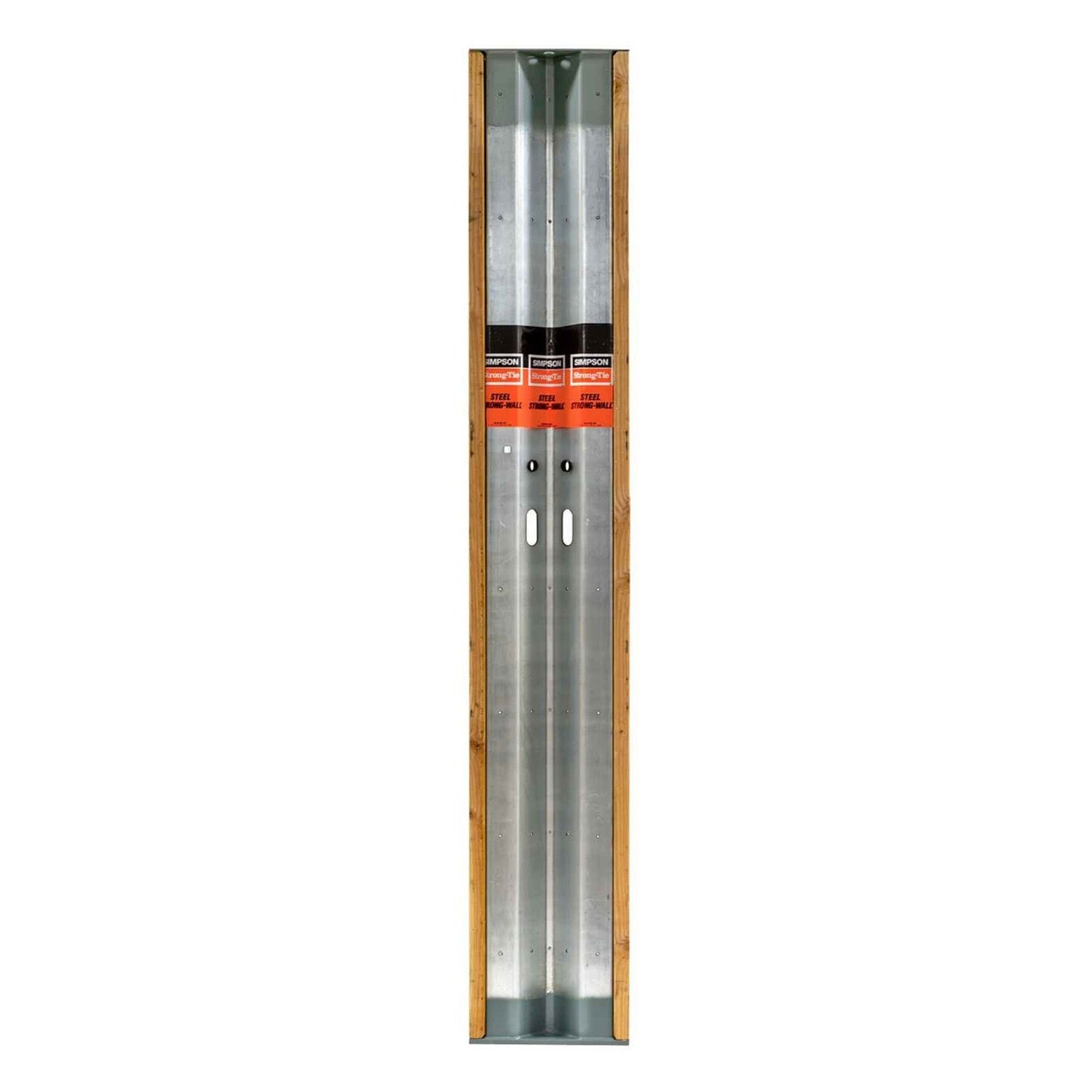

Simpson Strong-Tie SSW15X9-STK Description
The Steel Strong-Wall Shearwall Stacked is designed for two-story applications, providing robust lateral support with a galvanized finish and durable construction.
Simpson Strong-Tie SSW15X9-STK Includes
- (1) Steel Strong-Wall Shearwall Stacked
Simpson Strong-Tie SSW15X9-STK Features

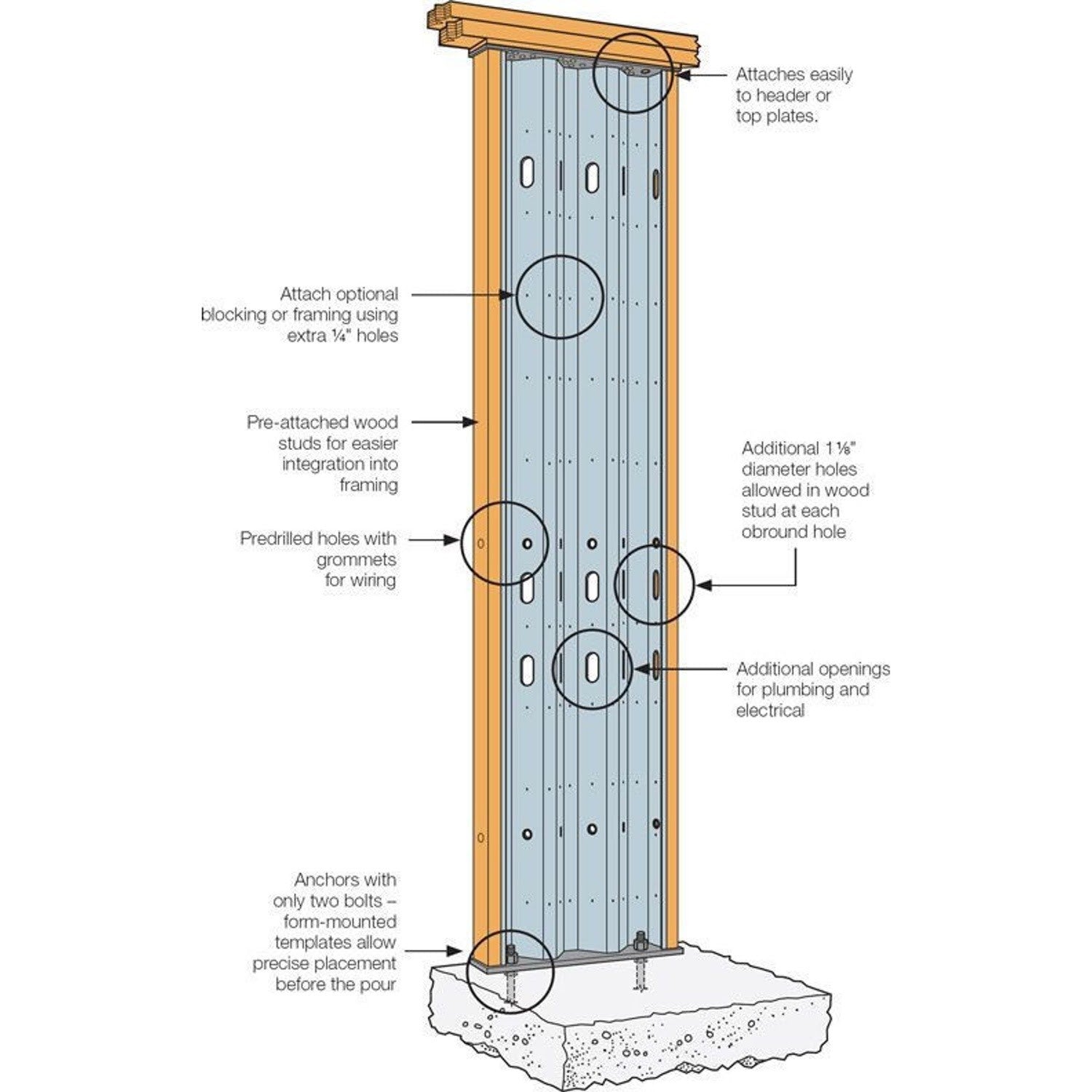

- No bearing plates to install; walls can be placed flush against a corner
- Uses the same anchor bolt templates as single-story installation
- Compression loads transferred by nut/rod, reducing wood crushing under load
Simpson Strong-Tie SSW15X9-STK Applications

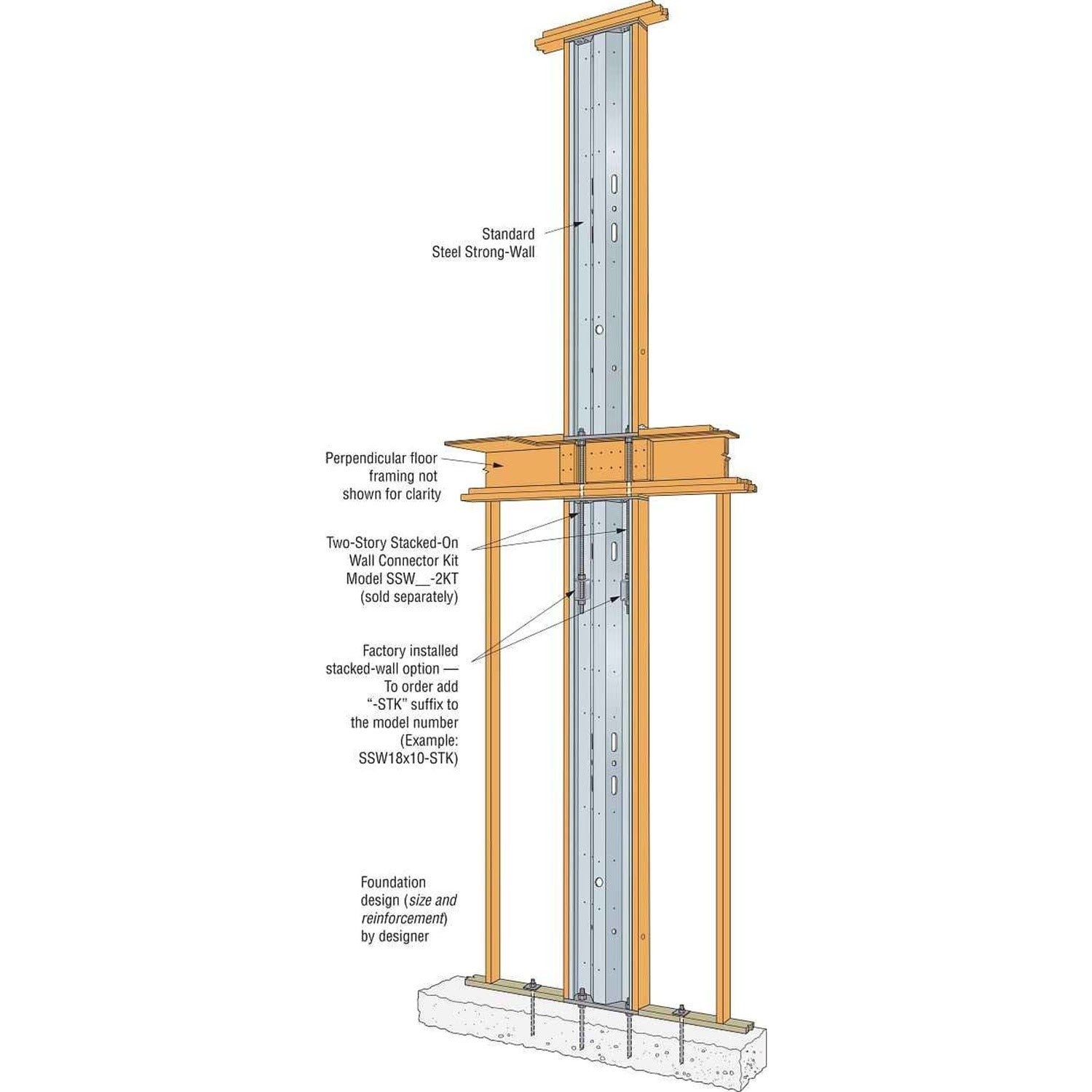

- Two-story stacked on concrete foundations
- Balloon framing on concrete foundations
Simpson Strong-Tie SSW15X9-STK Specifications
| Material | Vertical panel — 10 gauge |
| Finish | Vertical panel — galvanized; Top and Base Plates — Simpson Strong-Tie gray paint |
| Width (in.) | 15 |
| Height (in.) | 105 1/4 |
| Thickness (in.) | 3 1/2 |
| Anchor Bolt Qty. | 2 |
| Bolt Dia. (in.) | 1 |
| No. of Screws in Top of Wall | 6 |
