Simpson Strong-Tie SSW21-1KT Description
The Steel Strong-Wall First-Floor Wall Connection Kit is designed for 21" panels, ensuring simplified installation and superior performance.
Simpson Strong-Tie SSW21-1KT Includes
- (1) shear-transfer plate with #14 self-drilling screws
- (2) 1" x 18" threaded rods F1554 Grade 36
- (2) coupler nuts
- (2) heavy hex nuts
- (1) installation instructions
Simpson Strong-Tie SSW21-1KT Features
- Ensures a simplified installation to provide superior performance
- Minimizes modifications to wood floor systems
Simpson Strong-Tie SSW21-1KT Applications
- Cold-Formed Steel: Suitable for steel framing applications

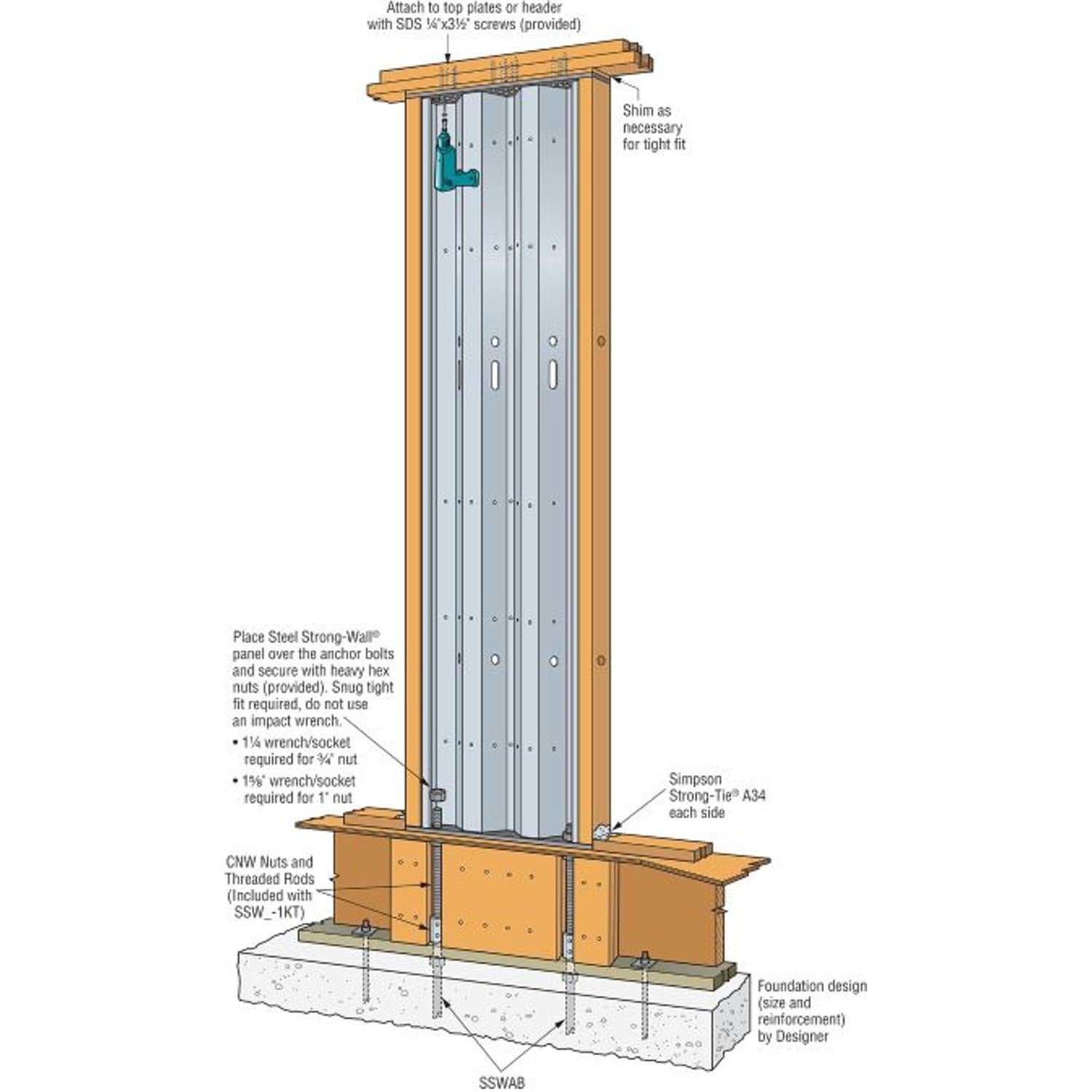

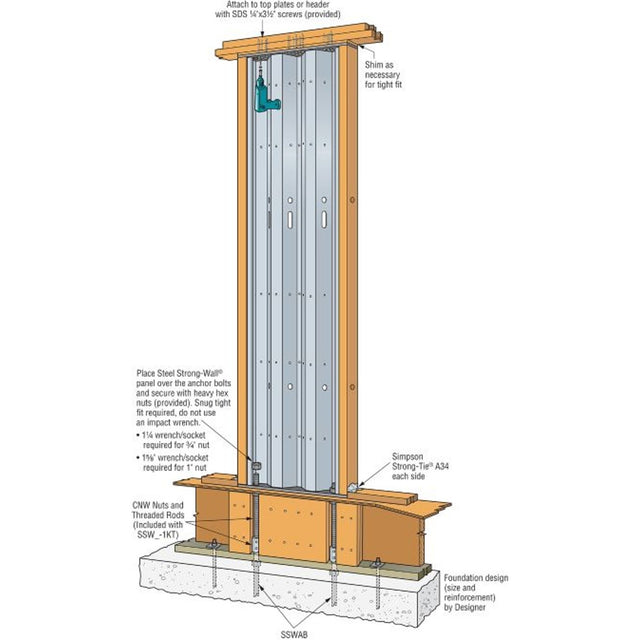

Simpson Strong-Tie SSW21-1KT Installation Overview
- Drill or notch subfloor to allow compression nuts to sit flush with underside of Steel Strong-Wall (SSW)
- Assemble coupler nuts and compression nuts to threaded rods
- Attach threaded rod assembly to anchor bolts in the concrete foundation
- Install solid blocking under center and each end of SSW per designer
- Place SSW over threaded rod and secure with anchor nuts included in SSW kit
- Attach shear transfer plate to SSW with supplied #14 self-drilling screws, and to rim joist with 0.148" x 3" nails
- Complete assembly with A34 angles (sold separately) per designer
- Attach SSW to top plates or header with Strong-Drive SDS screws (supplied)
Simpson Strong-Tie SSW21-1KT Specifications
| Application | Cold-Formed Steel |
| API Approval | Approved - Full |
| Wall Width (in.) | 21 |
NOTE: Two heavy hex nuts included with each wall.
Toolup Part # :
820218
