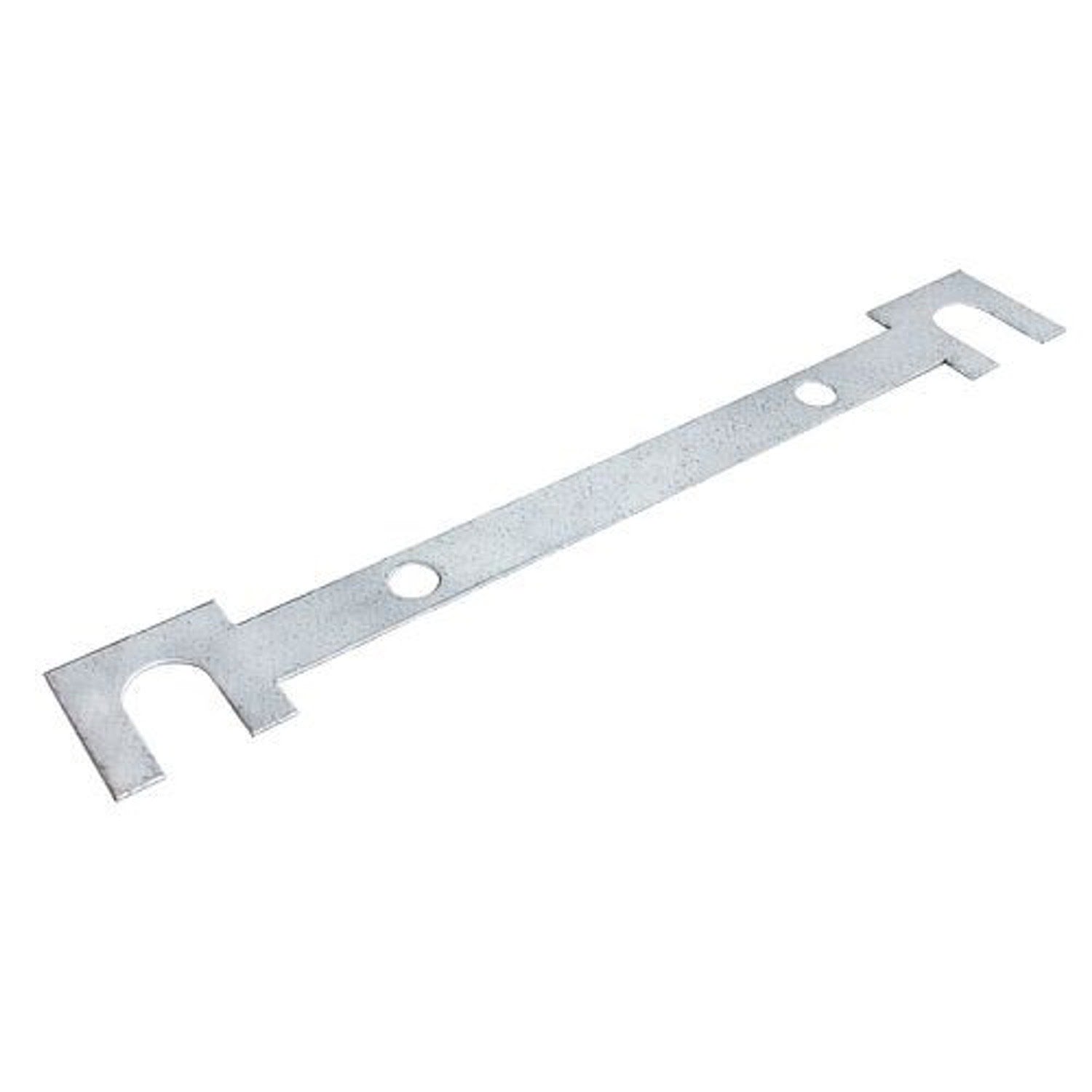

Simpson Strong-Tie SSWBS15 Description
The Strong-Wall Anchor Bolt Stabilizer for Steel Systems ensures secure and stable installation of anchor bolts in seismic and other structural applications.
Simpson Strong-Tie SSWBS15 Includes
- (1) Strong-Wall Anchor Bolt Stabilizer
Simpson Strong-Tie SSWBS15 Features
- Compatible with SSWTEL extended leg template for flush placement in 2x6 framed walls
- Available in different widths to match SSWT anchor bolt templates
- Includes holes for 1/2"-diameter dowels for stabilization
Simpson Strong-Tie SSWBS15 Applications
- Seismic new construction
- Seismic retrofit
- Anchorage solutions
- Shearwalls
- Wood and residential construction
Simpson Strong-Tie SSWBS15 Installation Overview
- Use two bolt stabilizers for each SSW anchor assembly
- Drive 1/2"-diameter dowels through the stabilizers into the ground to ensure plumb installation
- Remove dowels after concrete placement for reuse
Simpson Strong-Tie SSWBS15 Specifications
| Material | 14 gauge |
| Finish | Galvanized (G90) |
| Application | Seismic (New Construction) |
| API Approval | Approved - Full |
NOTE: The height of the garage curb above the garage slab is critical for rough header opening at garage return walls. Templates are recommended and are required in some jurisdictions. Foundation design by designer.
