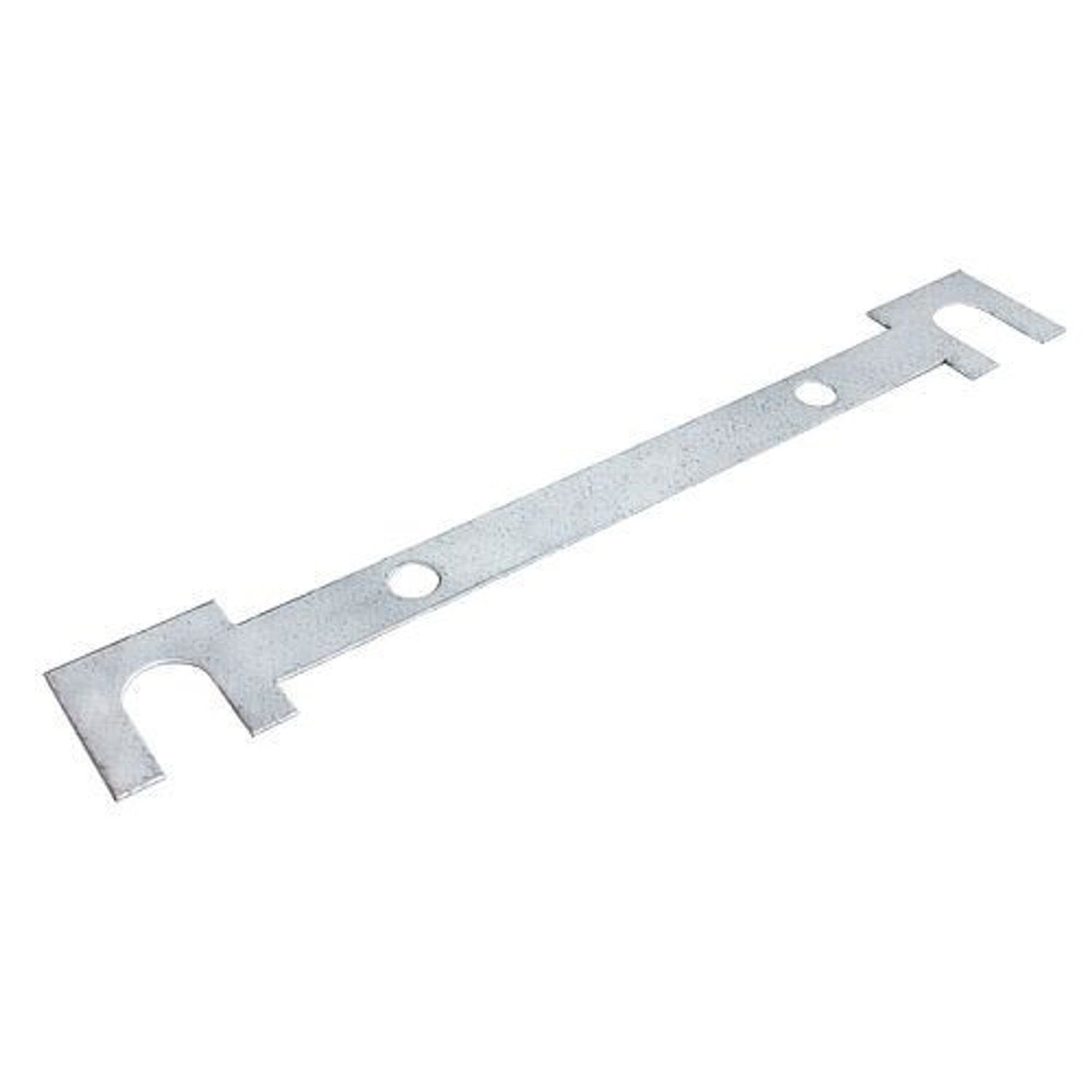

Simpson Strong-Tie SSWBS18 Description
The Strong-Wall Anchor Bolt Stabilizer ensures accurate concrete placement and stabilization for steel strong-wall shearwalls.
Simpson Strong-Tie SSWBS18 Includes
- (1) Strong-Wall Anchor Bolt Stabilizer
Simpson Strong-Tie SSWBS18 Features
- Used with SSWTEL extended leg template, allows for placement of the SSW flush to the inside face of 2x6 framed exterior walls
- Different widths match SSWT anchor bolt templates
- Holes to accommodate 1/2"-diameter dowels (not supplied) for stabilization
Simpson Strong-Tie SSWBS18 Applications
- Seismic (new construction)
- Seismic retrofit
- Anchorage solutions
- Shearwalls
- Wood/residential construction
Simpson Strong-Tie SSWBS18 Installation Overview
- Use two bolt stabilizers for each SSW anchor assembly; one at the embedded plate washer and the other above the template
- Drive 1/2"-diameter dowels (not supplied) down through the bolt stabilizers and into the ground to ensure plumb installation of the anchors and prevent movement during concrete placement
- Immediately following concrete placement, remove the dowels for reuse in other locations
Simpson Strong-Tie SSWBS18 Specifications
| Material | 14 gauge |
| Finish | Galvanized (G90) |
| Application | Seismic (New Construction) |
| API Approval | Approved - Full |
NOTE: Templates are recommended and are required in some jurisdictions. Foundation design by designer.
